Pegler XPress Press-Fit Copper Street Elbow 15mm to 108mm

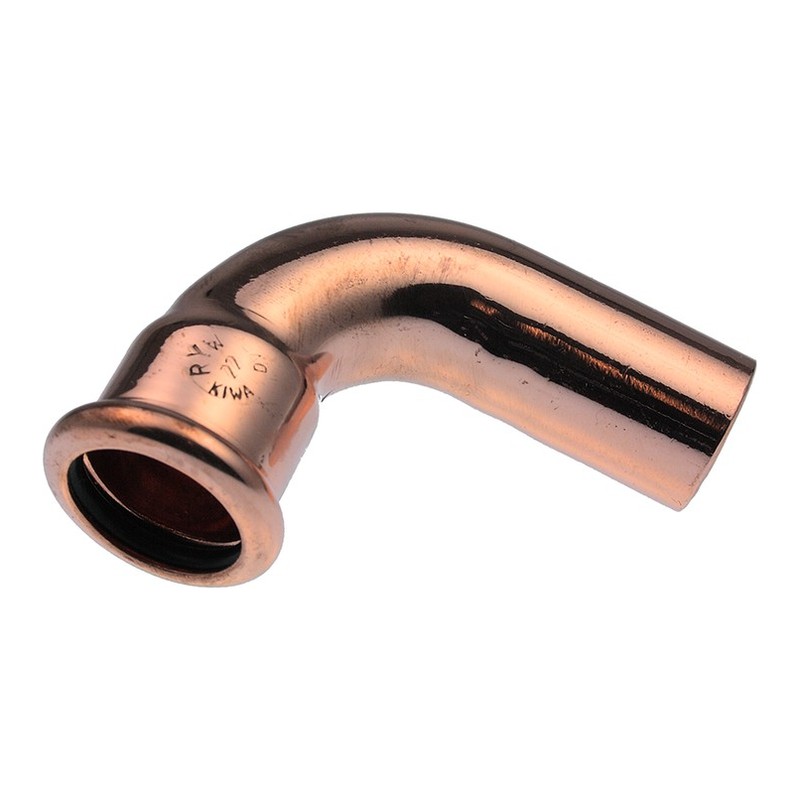

Pegler XPress Press-Fit Copper Street Elbow

This is a street elbow for water and heating copper, with a Press Fit socket and a male spigot, in 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm.

The male end goes straight into another fitting’s socket, so you can turn tight corners without a short tube offcut. Mark its depth before fitting and check the mark sits at the socket before you press.

The Pegler XPress Press-Fit Fittings we hold at Plumb Parts cover 15mm to 108mm.

The same system also covers these fitting types: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Male Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Backplate Elbows, Copper Long Pattern BackPlate Elbows, Copper Bends, Copper Obtuse Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Xpress copper is built for all kinds of site, from a domestic boiler change to a commercial or industrial installation. Pressing the joint is quick and needs no heat, and every fitting belongs to the same system.

Main benefits of the range

• Kitemarked by BSI against BS 8537:2010
• Rated for use from -20°C to 110°C
• Pressure rating of 16 bar over the full temperature range
• Leak Before Press: any joint that has not been pressed shows up as a leak when the system is tested
• Backed by a wide spread of British and overseas approvals
• Rapid jointing cuts labour and time compared with the traditional way
• Because there is no heat, no hot works permit or insurance cover is needed
• A chrome plated range is available for pipework that is on show

Specification

• Brand: Pegler XPress
• Range: Xpress Copper (water)
• Maker code: 38318 (15mm), 38320 (22mm), 38322 (28mm), 38324 (35mm), 38325 (42mm), 38326 (54mm), 38328 (76.1mm), 38329 (88.9mm)
• Material: Copper
• Connection: Press Fit end with a male spigot end
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 16 bar
• Suitable for: Water services on hard and half-hard copper tube
• Max temperature: -20°C to +110°C

Common Questions

Why use an Xpress street elbow?

Its male end goes straight into another fitting’s socket, so you can turn tight corners with no short tube offcut.

Which sizes can I get?

Every size from 15mm to 108mm is listed.

How do I know the male end is fully in?

Mark its depth before fitting and check the mark is at the socket before pressing.
