Pegler XPress Press-Fit Copper Equal Elbow 15mm to 108mm
Price range: £2.81 through £315.96 inc VAT ( Price range: £2.34 through £263.30 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
Pegler XPress copper press-fit 90 degree elbow for water and heating, 15mm to 108mm. Collect from 555 South Street, Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYE9015 |
|
15mm | £2.81 inc VAT (£2.34 ex VAT) |
-
+
|
£2.81 inc VAT | ||
| PYE9022 |
|
22mm | £4.76 inc VAT (£3.97 ex VAT) |
-
+
|
£4.76 inc VAT | ||
| PYE9028 |
|
28mm | £10.24 inc VAT (£8.53 ex VAT) |
-
+
|
£10.24 inc VAT | ||
| PYE9035 |
|
35mm | £22.06 inc VAT (£18.38 ex VAT) |
-
+
|
£22.06 inc VAT | ||
| PYE9042 |
|
42mm | £42.35 inc VAT (£35.29 ex VAT) |
-
+
|
£42.35 inc VAT | ||
| PYE9054 |
|
54mm | £58.73 inc VAT (£48.94 ex VAT) |
-
+
|
£58.73 inc VAT | ||
| PYE9066 |
|
66.7mm | £107.42 inc VAT (£89.52 ex VAT) |
-
+
|
£107.42 inc VAT | ||
| PYE9076 |
|
76.1mm | £171.73 inc VAT (£143.11 ex VAT) |
-
+
|
£171.73 inc VAT | ||
| PYE9088 |
|
88.9mm | £214.62 inc VAT (£178.85 ex VAT) |
-
+
|
£214.62 inc VAT | ||
| PYE90108 |
|
108mm | £315.96 inc VAT (£263.30 ex VAT) |
-
+
|
£315.96 inc VAT |

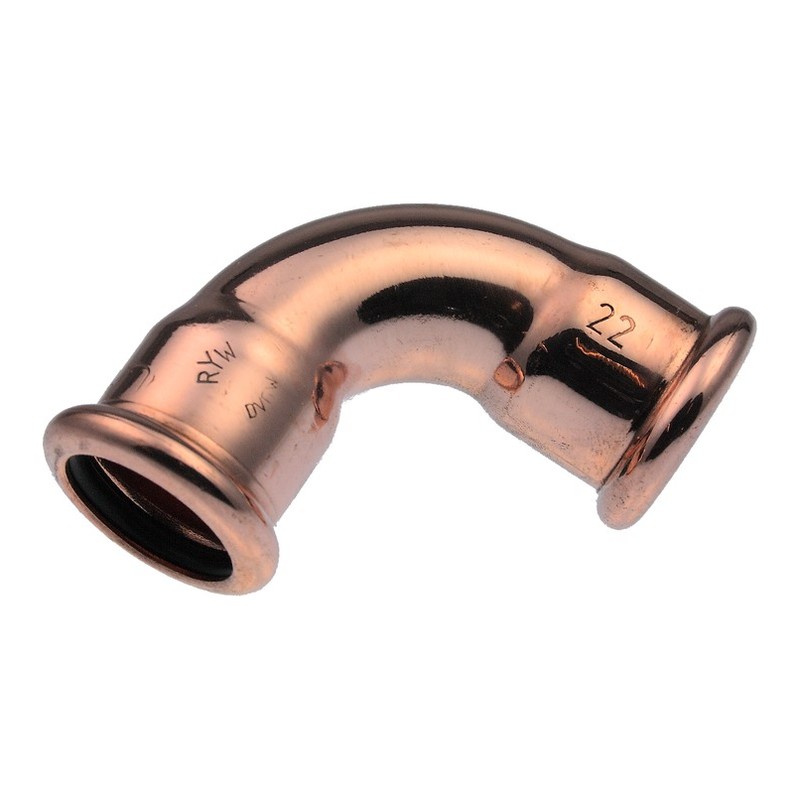

The Pegler XPress Press-Fit Copper Equal Elbow turns a copper pipe through 90 degrees with a pressed joint at each end. We list it in 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm. The Pegler Xpress 15mm elbow is a regular buy for installers who already carry press tools and want quick, flame free joints on water and heating work.
Mark the insertion depth on the pipe, push it in to the mark and press with an M profile jaw. The fittings are made by Aalberts, who now sell the range as VSH XPress. It has their Leak Before Pressed feature, so a joint that has been missed will show itself when you test. The black EPDM seal is fitted at the factory. This is the water and heating version, not the yellow marked gas fitting.
This is genuine Pegler XPress stock. Collect from our Glasgow shop or order online.
Specification
- Brand: Pegler XPress (VSH XPress, Aalberts)
- Range: XPress Copper
- Maker code: 38280 (15mm), 38290 (22mm), 38300 (28mm), 38302 (35mm), 38304 (42mm), 38306 (54mm), 38307 (66.7mm), 38308 (76.1mm), 38309 (88.9mm), 38310 (108mm)
- Material: Copper
- Connection: Press-fit, M profile, Leak Before Pressed
- Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm, 108mm
- Standard/approval: BS EN 1254-7 Kitemark (KM 789225), WRAS approved
- Max pressure: 16 bar
- Max temperature: 110°C operating
- Suitable for: Hot and cold drinking water, heating and chilled water. Not for gas
Common Questions
Can I use this XPress elbow on gas?
No. This is the water and heating fitting with a black seal. Gas needs the XPress Copper Gas range, which has yellow markings and a yellow seal.
What press jaws do Pegler XPress fittings need?
XPress uses the M profile. Use M profile jaws in the right size for the pipe, on a tool that is in date for service.
What does Leak Before Pressed mean?
An unpressed XPress joint is made to leak when the system is filled or tested. That way a fitting you missed shows up straight away instead of failing later.
Datasheets
Collect from our Glasgow shop at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or order online for delivery.
| Size |
15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,66.7mm ,76.1mm ,88.9mm ,108mm |
|---|
