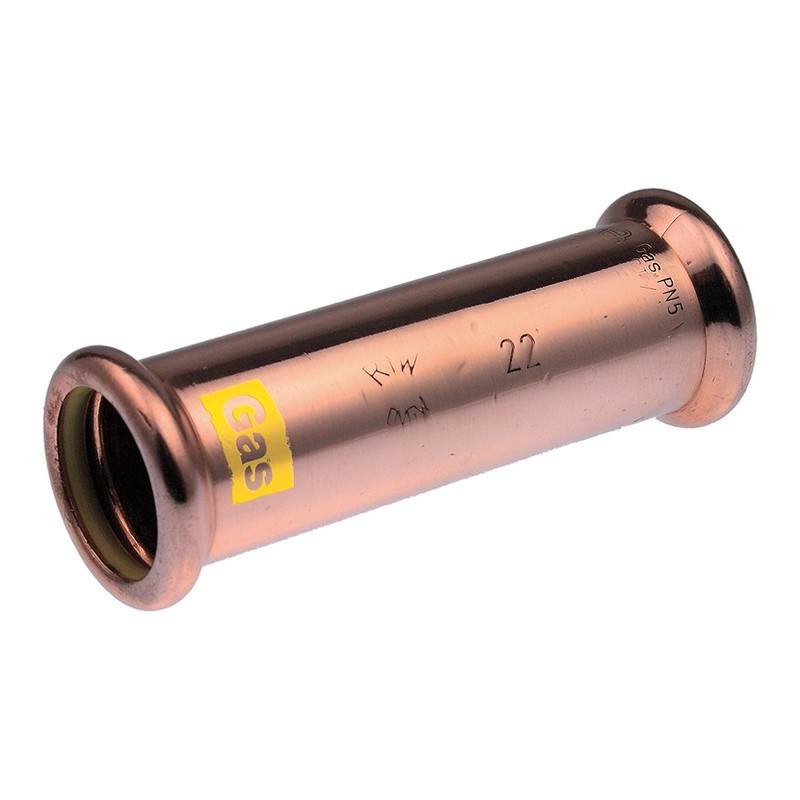

Pegler XPress Press-Fit Gas Copper Slip Coupling 15mm to 108mm

The Pegler XPress Press-Fit Gas Copper Slip Coupling is a straight connector for copper gas pipe that has no centre stop. That means it can slide right along the tube, which makes it the fitting to reach for on a repair.

Why a gas slip coupling helps

Say a section of gas pipe is damaged and you cut it out. The two ends are fixed, so you cannot spring them apart. With a slip coupling, you push it back over one end, drop in the new piece, then slide it across the gap and press. It is part of the Xpress gas range, which has seals made for gas, so keep it separate from the water fittings.

• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm and 54mm
• Larger sizes: 66.7mm, 76.1mm, 88.9mm and 108mm
• Copper body with no pipe stop
• Pressed with a suitable tool and jaws

Mark the insertion depth on both pipe ends before you slide it across, so you can check it sits centrally over the joint. Only a Gas Safe registered engineer should carry out the work, followed by a tightness test. For tees, elbows and other parts, see our Xpress Press-Fit gas copper fittings.

Gas fittings over the counter in Glasgow

Head to Plumb Parts, 555 South Street, Glasgow G14 0QX. The counter is open Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm, or buy online.

Specification

• Brand: Pegler XPress
• Range: Xpress Copper Gas
• Maker code: SG1SLIP; article numbers 39710 (15mm), 39711 (22mm), 39712 (28mm), 39713 (35mm), 39714 (42mm), 39715 (54mm), 39307 (66.7mm), 39308 (76.1mm), 39310 (108mm)
• Material: Copper
• Connection: Press Fit ends with no tube stop, yellow HNBR gas seals
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 5 bar on external above-ground pipework; 1 bar inside buildings subject to fire regulations
• Suitable for: Gas pipework on hard and half-hard copper tube, fitted by a Gas Safe registered engineer
• Max temperature: -20°C to +70°C

Common Questions

What is a gas slip coupling for?

Mending a damaged gas pipe where the two ends are fixed in place. With no internal stop, the coupling can be pushed right along one end and drawn back over the gap.

How do I centre it over the joint?

Mark the insertion depth on both pipe ends before sliding it across.

Who must make the repair?

A Gas Safe registered engineer, followed by a tightness test.
