Pegler XPress Press-Fit Copper Straight Female Coupler S2/6270G 15mm to 54mm

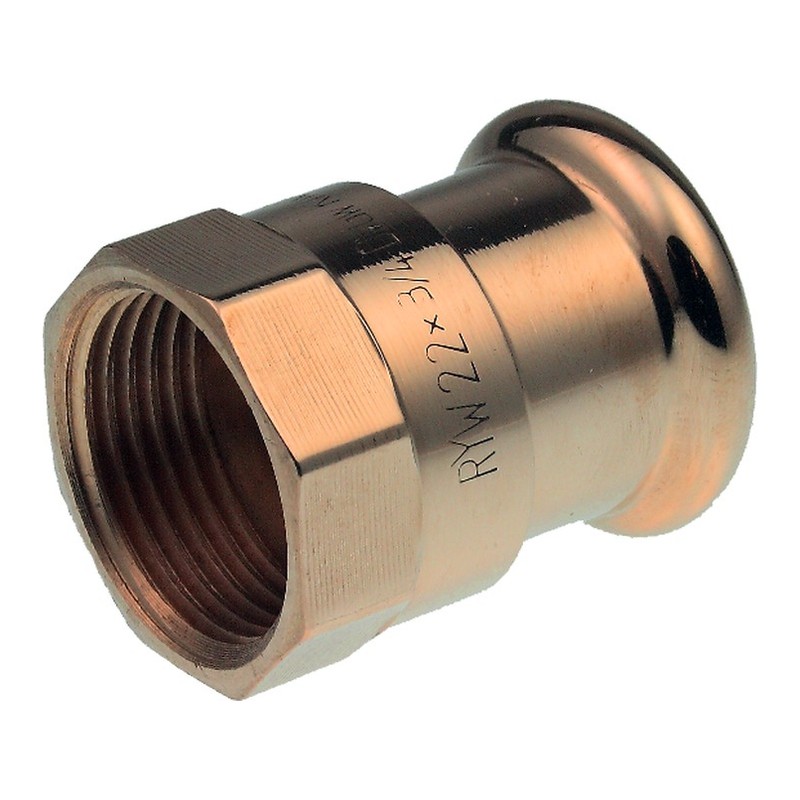

Pegler XPress Press-Fit Copper Straight Female Coupler S2/6270G

This is the S2/6270G straight female coupler for water and heating copper, with a Press Fit end and a female thread. Sizes run from 15mm x 3/8” up to 54mm x 2″; the full list is in the Specification.

S2/6270G is the maker’s part number, handy for matching a part to a drawing or schedule. For 15mm tube feeding a tap or valve with a 1/2″ thread, choose 15mm x 1/2″. Seal the male thread that goes into it with PTFE tape or a suitable jointing paste, and do not overtighten.

Browse the whole Pegler XPress Press-Fit Fittings range at Plumb Parts, running from 15mm up to 108mm.

Alongside this one, the Pegler XPress Press-Fit system takes in: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Backplate Elbows, Copper Long Pattern BackPlate Elbows, Copper Bends, Copper Obtuse Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

A straightforward choice for homes, shops and plant rooms: Xpress copper is pressed, not soldered, so installation is fast and heat-free.

Xpress copper at a glance

• Rated for use from -20°C to 110°C
• Pressure rating of 16 bar over the full temperature range
• Leak Before Press: any joint that has not been pressed shows up as a leak when the system is tested
• Kitemarked by BSI against BS 8537:2010
• Cold jointing with no naked flame, so there is no hot works permit or insurance to arrange
• Approved by numerous British and international bodies
• Quick to joint, which saves time and labour against traditional methods
• Chrome plated fittings in the range suit visible pipe runs

Specification

• Brand: Pegler XPress
• Range: Xpress Copper (water)
• Maker code: 38090 (15mm x 1/2″), 38086 (22mm x 1/2″), 38092 (22mm x 3/4″), 38093 (28mm x 1”), 38080 (35mm x 3/4″), 38089 (35mm x 1”), 38094 (35mm x 1.1/4”), 38095 (42mm x 1.1/2”), 38096 (54mm x 2”)
• Connection: Press Fit end to female thread
• Sizes: 15mm x 3/8″, 15mm x 1/2″, 15mm x 3/4″, 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″, 28mm x 3/4″, 28mm x 1″, 28mm x 1.1/4″, 35mm x 3/4″, 35mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/4″, 42mm x 1.1/2″ and 54mm x 2″
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 16 bar
• Suitable for: Water services on hard and half-hard copper tube
• Max temperature: -20°C to +110°C

Common Questions

What is S2/6270G?

It is the maker’s part number for the Xpress straight female connector. It helps when matching a part to a drawing or schedule.

Which size suits a 1/2″ tap tail?

On 15mm tube feeding a tap or valve with a 1/2″ thread, pick 15mm x 1/2″.

How should the thread be sealed?

Seal the male thread going into it with PTFE tape or a suitable jointing paste. Do not overtighten into the fitting.
