Pegler XPress Press-Fit Gas Copper Straight Male Connector 15mm to 108mm

Pegler XPress Press-Fit Gas Copper Straight Male Connector

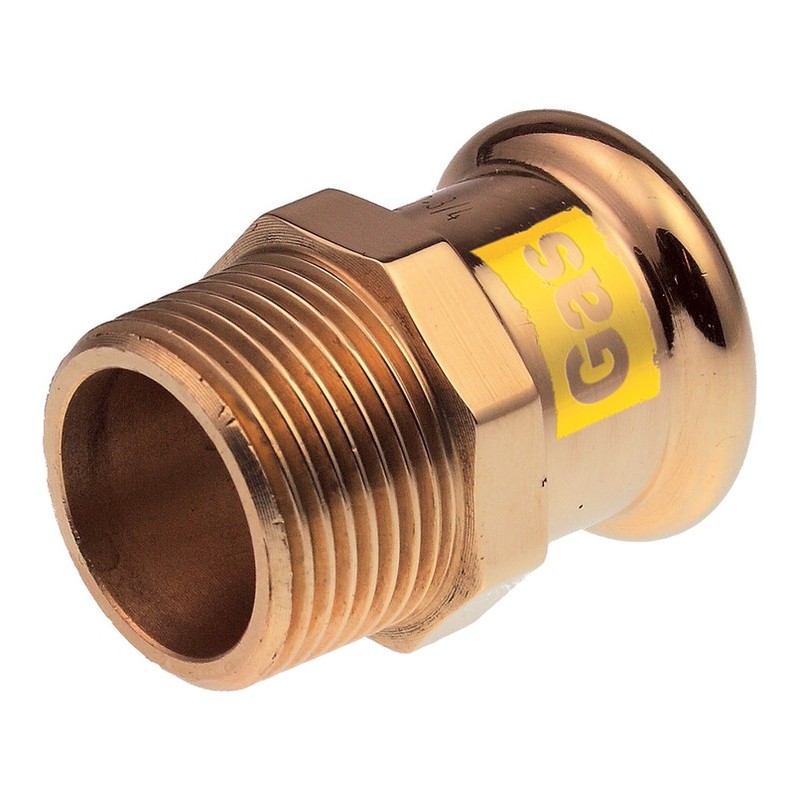

This is a gas straight male connector, with a Press Fit end on the tube side and a male BSP thread on the other. Sizes run from 15mm x 1/2″ to 108mm x 4″; the full list is in the Specification.

We carry Pegler XPress Press-Fit Fittings from 15mm through to 108mm.

Fitting types you can pair with it in the Pegler XPress Press-Fit system: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Gas Copper Straight Male Connectors, Copper Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Backplate Elbows, Copper Long Pattern BackPlate Elbows, Copper Bends, Copper Obtuse Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Whether the job is domestic, commercial or industrial, Xpress copper gives a quick joint without a blowtorch, so the whole installation can be done with one system.

Points worth knowing

• BS 8537:2010 compliant and BSI Kitemark approved
• Gas rating: -20°C to +70°C
• Gas rating: 5 bar on external above-ground pipework, 1 bar inside buildings
• Leak Before Press design means a missed joint is picked up at the test stage
• Approved by numerous British and international bodies
• Quick to joint, which saves time and labour against traditional methods
• Heat-free jointing means hot works permits and the related insurance are not needed
• Chrome plated versions exist for exposed pipework

Full gas limits are in the Specification below.

Specification

• Brand: Pegler XPress
• Range: Xpress Copper Gas
• Maker code: SG3; article numbers 39730 (15mm x 1/2″), 39731 (15mm x 3/4″), 39732 (22mm x 1/2″), 39733 (22mm x 3/4″), 39734 (22mm x 1”), 39737 (28mm x 3/4″), 39735 (28mm x 1”), 39736 (28mm x 1.1/4”), 39738 (35mm x 1”), 39739 (35mm x 1.1/4”), 39741 (42mm x 1.1/4”), 39740 (42mm x 1.1/2”), 39742 (54mm x 2”), 39311 (66.7mm X 2.1/2”), 39313 (76.1mm x 3”), 39315 (108mm x 4”)
• Connection: Press Fit end to male thread
• Sizes: 15mm x 3/8″, 15mm x 1/2″, 15mm x 3/4″, 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″, 28mm x 3/4″, 28mm x 1″, 28mm x 1.1/4″, 35mm x 3/4″, 35mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/4″, 42mm x 1.1/2″, 54mm x 2″, 66.7mm X 2.1/2″, 76.1mm x 2.1/2″, 76.1mm x 3″, 88.9mm x 3″ and 108mm x 4″
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 5 bar on external above-ground pipework; 1 bar inside buildings subject to fire regulations
• Suitable for: Gas pipework on hard and half-hard copper tube, fitted by a Gas Safe registered engineer
• Max temperature: -20°C to +70°C

Common Questions

What does a gas male connector do?

Gives a gas copper tube a press end and a male BSP thread at the other end.
