Pegler XPress Press-Fit Copper Reducing Branch Tee 15mm to 108mm

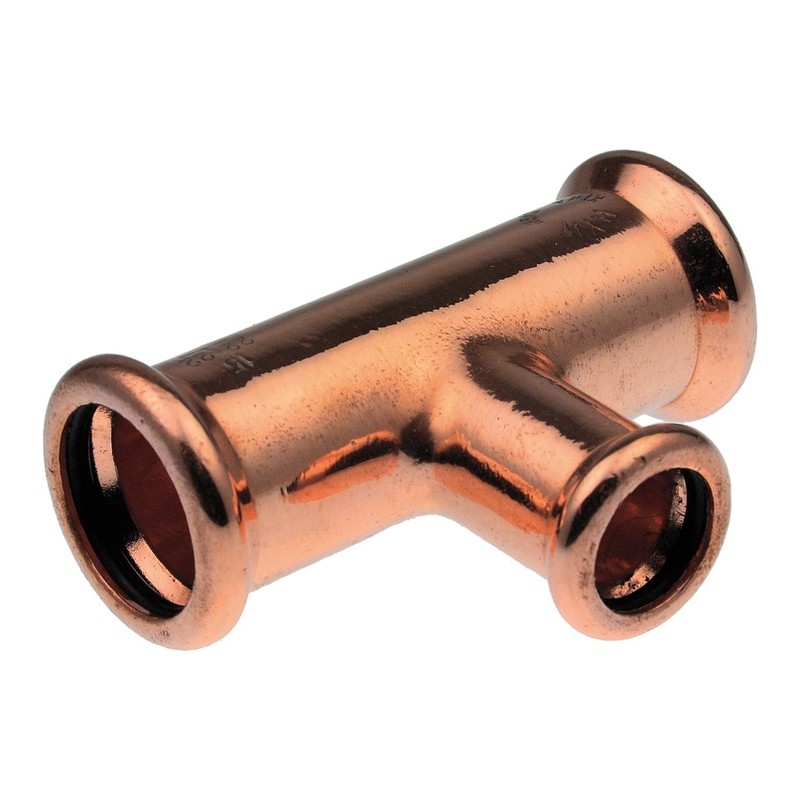

Pegler XPress Press-Fit Copper Reducing Branch Tee

This is a reducing branch tee for water and heating copper: the run stays at one size and only the side outlet is smaller. It is listed from 22 x 22 x 15mm up to 108 x 108 x 76.1mm; the full set is in the Specification.

The smallest branch on 54mm in this list is 22mm, so fit a reducer on the branch if you need to go smaller. The range covers 15mm house pipework through to 108mm commercial mains, with several branch sizes at each run size.

Plumb Parts stocks the full Pegler XPress Press-Fit Fittings range, in sizes from 15mm to 108mm.

Other fitting types in the Pegler XPress Press-Fit system: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Male Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Back plate Elbows, Copper Long Pattern BackPlate Elbows, Copper 90deg Bends, Copper 45 deg Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Xpress copper press-fit suits houses, commercial buildings and industrial plant alike. Joints go together quickly with no flame, and the fittings are designed to work as one complete system.

What the Xpress system offers

• Temperature range of -20°C to 110°C
• Holds a 16 bar pressure rating across the whole temperature span
• Leak Before Press design means a missed joint is picked up at the test stage
• BS 8537:2010 compliant and BSI Kitemark approved
• No flame needed, so no hot works permit or extra insurance is required
• Backed by a wide spread of British and overseas approvals
• Rapid jointing cuts labour and time compared with the traditional way

Specification

• Brand: Pegler XPress
• Range: Xpress Copper (water)
• Maker code: S25; article numbers 38555A (108 X 108 X 54mm), 38565A (108 x 108 x 66.7mm), 38557A (108 x 108 x 76.1mm), 38490 (22 x 22 x 15mm), 38492 (28 x 28 x 15mm), 38494 (28 x 28 x 22mm), 38496 (35 x 35 x 15mm), 38497 (35 x 35 x 22mm), 38498 (35 x 35 x 28mm), 38499 (42 x 42 x 15mm), 38500 (42 x 42 x 22mm), 38501 (42 x 42 x 28mm), 38502 (42 x 42 x 35mm), 38504 (54 x 54 x 22mm), 38505 (54 x 54 x 28mm), 38506 (54 x 54 x 35mm), 38507 (54 x 54 x 42mm), 38550 (66.7 x 66.7 x 28mm), 38560 (66.7 x 66.7 x 35mm), 38561 (66.7 x 66.7 x 42mm), 38562 (66.7 x 66.7 x 54mm), 38563 (76.1 x 76.1 x 22mm), 38564 (76.1 x 76.1 x 28mm), 38553 (76.1 x 76.1 x 35mm), 38551 (76.1 x 76.1 x 42mm), 38552 (76.1 x 76.1 x 54mm)
• Material: Copper
• Connection: Press Fit ends with EPDM O rings
• Sizes: 22 x 22 x 15mm, 28 x 28 x 15mm, 28 x 28 x 22mm, 35 x 35 x 15mm, 35 x 35 x 22mm, 35 x 35 x 28mm, 42 x 42 x 15mm, 42 x 42 x 22mm, 42 x 42 x 28mm, 42 x 42 x 35mm, 54 x 54 x 22mm, 54 x 54 x 28mm, 54 x 54 x 35mm, 54 x 54 x 42mm, 66.7 x 66.7 x 28mm, 66.7 x 66.7 x 35mm, 66.7 x 66.7 x 42mm, 66.7 x 66.7 x 54mm, 76.1 x 76.1 x 22mm, 76.1 x 76.1 x 28mm, 76.1 x 76.1 x 35mm, 76.1 x 76.1 x 42mm, 76.1 x 76.1 x 54mm, 108 X 108 X 54mm, 108 x 108 x 66.7mm and 108 x 108 x 76.1mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 16 bar
• Suitable for: Water services on hard and half-hard copper tube
• Max temperature: -20°C to +110°C

Common Questions

How is a reducing branch tee laid out?

The run stays at one size and only the side outlet is smaller, as in 28 x 28 x 15mm. It suits taking a small branch off a main.

Is there a 54mm main with a 15mm branch?

Not in this list, the smallest branch on 54mm is 22mm. Add a reducer on the branch if you need to go smaller.

Why is the list so long?

It covers everything from 15mm house pipework up to 108mm commercial mains, with several branch sizes for each.
