Pegler XPress Press-Fit Straight Coupling Slip 15mm to 108mm

Pegler XPress Press-Fit Straight Coupling Slip

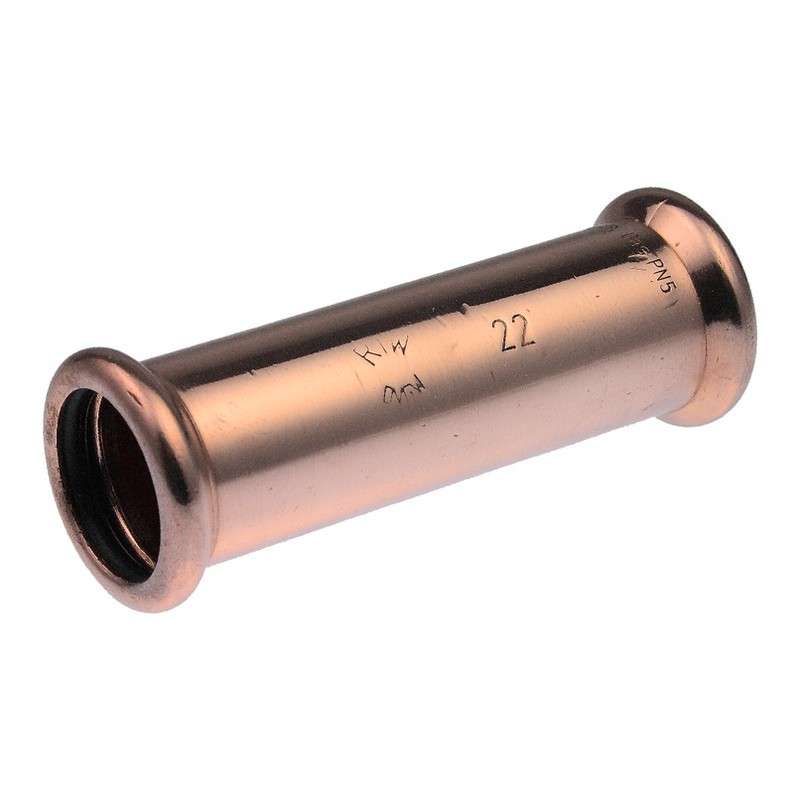

This is a straight coupling slip for water and heating copper, with Press Fit ends and no tube stop inside. Sizes are 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm.

With no stop, it slides along the tube, which makes it the one for repairs on existing copper where the ends are fixed and cannot be pulled apart. Mark the insertion depth on both ends first, slide it back over the gap until both marks show at the fitting mouths, and press. On new work a standard coupling with a stop is quicker to place.

We carry Pegler XPress Press-Fit Fittings up to 108mm.

Fitting types you can pair with it in the Pegler XPress Press-Fit system: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Backplate Elbows, Copper Long Pattern BackPlate Elbows, Copper Bends, Copper Obtuse Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Xpress copper is built for all kinds of site, from a domestic boiler change to a commercial or industrial installation. Pressing the joint is quick and needs no heat, and every fitting belongs to the same system.

Main benefits of the range

• BS 8537:2010 compliant and BSI Kitemark approved
• Temperature range of -20°C to 110°C
• Holds a 16 bar pressure rating across the whole temperature span
• Leak Before Press design means a missed joint is picked up at the test stage
• Approved by numerous British and international bodies
• Quick to joint, which saves time and labour against traditional methods
• Heat-free jointing means hot works permits and the related insurance are not needed
• Chrome plated versions exist for exposed pipework

Specification

• Brand: Pegler XPress
• Range: Xpress Copper (water)
• Maker code: 38044 (15mm), 38045 (22mm), 38046 (28mm), 38047 (35mm), 38048 (42mm), 38049 (54mm), 38040 (66.7mm), 38041 (76.1mm), 38042 (88.9mm), 38043 (108mm)
• Material: Copper
• Connection: Press Fit ends with no tube stop
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 16 bar
• Suitable for: Water services on hard and half-hard copper tube
• Max temperature: -20°C to +110°C

Common Questions

What is a slip coupling? It’s a straight fitting that joins two lengths of the same size tube end to end. It’s especially handy for closing a gap in an existing run.

When should I use a slip coupling? Use one when you’re repairing or altering an existing copper run and need to fill a gap without springing the pipes apart.

How do I install a slip coupling? Cut the tube ends square, deburr them and mark the insertion depth, then press with the matching XPress jaws. Check the depth marks before you press.

Do I need heat to fit an XPress coupling? No, XPress is jointed by pressing, so there’s no flame needed on the job and no hot works permit.

Can the coupling slip be used on drinking water? Yes, it’s WRAS approved for hot and cold water, and it also suits heating and chilled water. It’s not for gas.

What pressure and temperature is it rated to? It’s rated to 16 bar and works from -20°C to +110°C.

Datasheets

• Pegler XPress S1SLIP Product Datasheet (PDF)
• VSH XPress Installation Instructions (PDF)
