Pegler XPress Press-Fit Gas Copper Equal Elbow 15mm to 108mm

Pegler XPress Press-Fit Gas Copper Equal Elbow

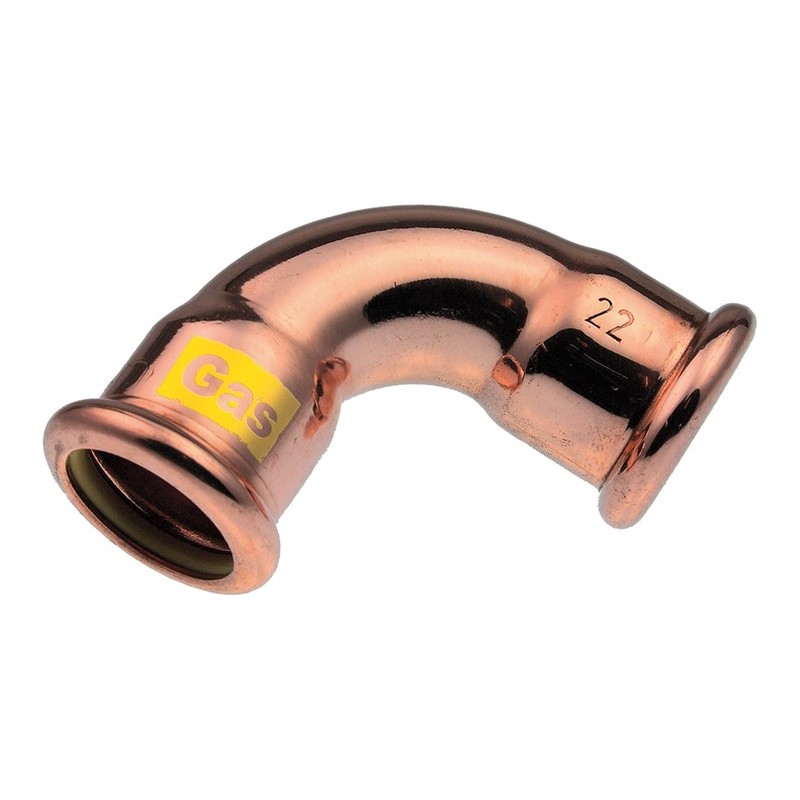

This is a gas equal elbow, a plain 90 degree turn pressed onto copper tube at both ends. Sizes are 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm.

Pressure limits are 5 bar on external above-ground pipe and 1 bar inside buildings subject to fire regulations. An unpressed joint will show up on the tightness test the engineer carries out after fitting.

Plumb Parts stocks the full Pegler XPress Press-Fit Fittings range, in sizes from 15mm to 108mm.

Other fitting types in the Pegler XPress Press-Fit system: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Male Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Backplate Elbows, Copper Long Pattern BackPlate Elbows, Copper Bends, Copper Obtuse Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Xpress copper keeps installation simple. No heat is involved, jointing is rapid, and the same system covers domestic, commercial and industrial pipework.

Why installers choose Xpress

• Carries the BSI Kitemark to BS 8537:2010
• Gas rating: -20°C to +70°C
• Gas rating: 5 bar on external above-ground pipework, 1 bar inside buildings
• With Leak Before Press, a fitting left unpressed will leak on test, so it cannot be missed
• Quick to joint, which saves time and labour against traditional methods
• Heat-free jointing means hot works permits and the related insurance are not needed
• A broad list of British and international approvals applies
• Where pipes are on view, a chrome plated range is available

Full gas limits are in the Specification below.

Specification

• Brand: Pegler XPress
• Range: Xpress Copper Gas
• Maker code: SG12; article numbers 39780 (15mm), 39781 (22mm), 39782 (28mm), 39783 (35mm), 39784 (42mm), 39785 (54mm), 39341 (66.7mm), 39342 (76.1mm), 39344 (108mm)
• Material: Copper
• Connection: Press Fit ends with yellow HNBR gas seals
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 5 bar on external above-ground pipework; 1 bar inside buildings subject to fire regulations
• Suitable for: Gas pipework on hard and half-hard copper tube, fitted by a Gas Safe registered engineer
• Max temperature: -20°C to +70°C

Common Questions

Can you use press fittings on gas? Yes, as long as they are gas-rated press fittings like this one, which has the yellow O-ring for natural gas and LPG. Any gas work must be carried out by a Gas Safe registered engineer.

Can you use this gas press elbow on water? It is made for gas, with a yellow O-ring and its own limits of 5 bar and -20°C to +70°C. For water and heating, use the standard XPress Copper elbow, which is made for that job.

How do you fit this press-fit gas elbow? Cut the tube square, take the burr off and push it fully home to your depth mark, then press with an M profile jaw. Check the mark afterwards to make sure the tube has not crept out.

How tight should gas fittings be on this elbow? There is no nut to tighten here, as the joint is made by pressing it with an M profile jaw. Any threaded gas joints elsewhere on the job should be made and tested by a Gas Safe registered engineer.

What pressure is the XPress gas equal elbow rated to? It has a maximum operating pressure of 5 bar and works between -20°C and +70°C. Those are the gas limits, not the higher figures quoted for the XPress Copper water fittings.

Are both ends of the gas elbow the same size? Yes, it is an equal elbow, so both ends match and it turns the pipe through 90 degrees. If one leg needs a thread, go for the XPress gas male or female elbow instead.
