Pegler XPress Press-Fit Copper Reducer 15mm to 108mm

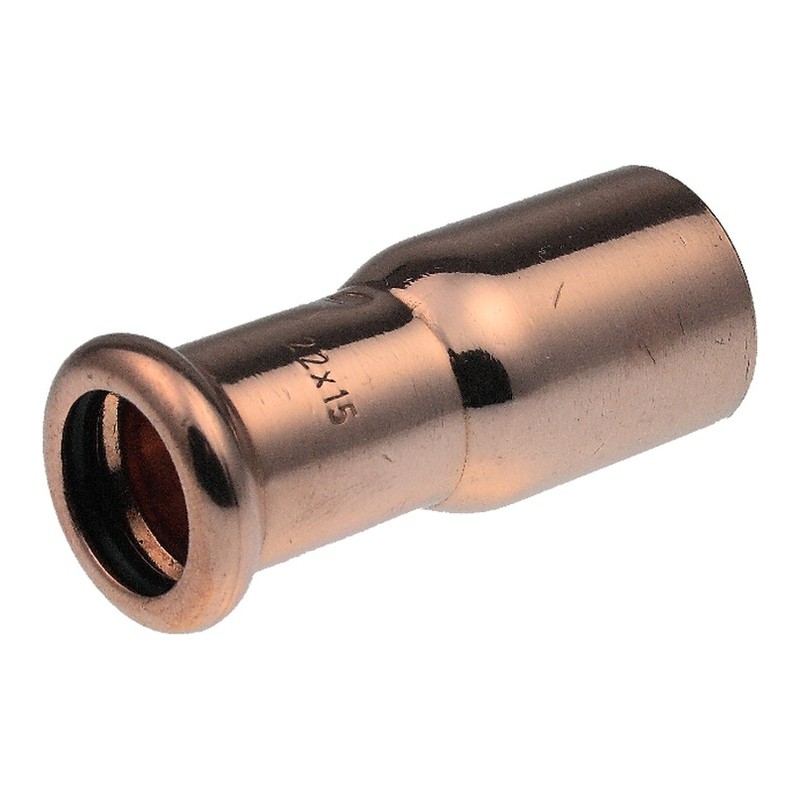

Pegler XPress Press-Fit Copper Reducer

This is a reducer for water and heating copper, for stepping down between sizes. It is listed from 22 x 15mm up to 108 x 88.9mm; the full set of sizes is in the Specification.

The large end is a male spigot that slots into another fitting’s socket, whereas a reducing coupling takes copper tube at both ends. Mark the depth on the male end and check the line sits at the socket mouth before pressing. Reductions from 108mm are listed, so it suits plant room headers as well.

Plumb Parts stocks the full Pegler XPress Press-Fit Fittings range, in sizes from 15mm to 108mm.

Other fitting types in the Pegler XPress Press-Fit system: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Male Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Backplate Elbows, Copper Long Pattern BackPlate Elbows, Copper Bends, Copper Obtuse Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

Xpress copper press-fit suits houses, commercial buildings and industrial plant alike. Joints go together quickly with no flame, and the fittings are designed to work as one complete system.

What the Xpress system offers

• Temperature range of -20°C to 110°C
• Holds a 16 bar pressure rating across the whole temperature span
• Leak Before Press design means a missed joint is picked up at the test stage
• BS 8537:2010 compliant and BSI Kitemark approved
• Holds many UK and international approvals
• Pressing takes less time and labour than conventional jointing
• Cold jointing with no naked flame, so there is no hot works permit or insurance to arrange
• Where pipes are on view, a chrome plated range is available

Specification

• Brand: Pegler XPress
• Range: Xpress Copper (water)
• Maker code: S6; article numbers 38222 (76.1mm x 35mm), 38223 (76.1mm x 42mm), 38224 (76.1mm x 54mm), 38225 (76.1mm x 66.7mm), 38233 (88.9mm x 42mm), 38226 (88.9mm x 54mm), 38227 (88.9mm x 76.1mm), 38228 (108mm x 42mm), 38229 (108mm x 54mm), 38230 (108mm x 66.7mm), 38231 (108mm x 76.1mm), 38232 (108mm x 88.9mm), 38200 (22 x 15mm), 38202 (28 x 15mm), 38204 (28 x 22mm), 38207 (35 x 22mm), 38208 (35 x 28mm), 38210 (42 x 22mm), 38211 (42 x 28mm), 38212 (42 x 35mm), 38215 (54 x 28mm), 38216 (54 x 35mm), 38217 (54 x 42mm), 38218 (66.7 x 28mm), 38219 (66.7 x 35mm), 38220 (66.7 x 42mm), 38221 (66.7 x 54mm)
• Material: Copper
• Connection: Male spigot end into a press fitting, press end for the smaller tube
• Sizes: 22 x 15mm, 28 x 15mm, 28 x 22mm, 35 x 22mm, 35 x 28mm, 42 x 22mm, 42 x 28mm, 42 x 35mm, 54 x 28mm, 54 x 35mm, 54 x 42mm, 66.7 x 28mm, 66.7 x 35mm, 66.7 x 42mm, 66.7 x 54mm, 76.1mm x 35mm, 76.1mm x 42mm, 76.1mm x 54mm, 76.1mm x 66.7mm, 88.9mm x 42mm, 88.9mm x 54mm, 88.9mm x 76.1mm, 108mm x 42mm, 108mm x 54mm, 108mm x 66.7mm, 108mm x 76.1mm and 108mm x 88.9mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 16 bar
• Suitable for: Water services on hard and half-hard copper tube
• Max temperature: -20°C to +110°C

Common Questions

Reducer or reducing coupling, which do I want?

This reducer has a large male end that slots into another fitting’s socket. A reducing coupling takes copper tube at both ends instead.

Can it step down from big commercial sizes?

Yes, the list runs from 22 x 15mm right up to 108mm reductions, so it suits plant room headers too.

Do I mark depth on the male end?

Yes, mark it before fitting and check the line sits at the socket mouth before pressing.
