Pegler Yorkshire SS12 XPress Stainless Steel Elbow 90 Degree 15mm to 54mm
Price range: £11.58 through £74.20 inc VAT ( Price range: £9.65 through £61.83 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

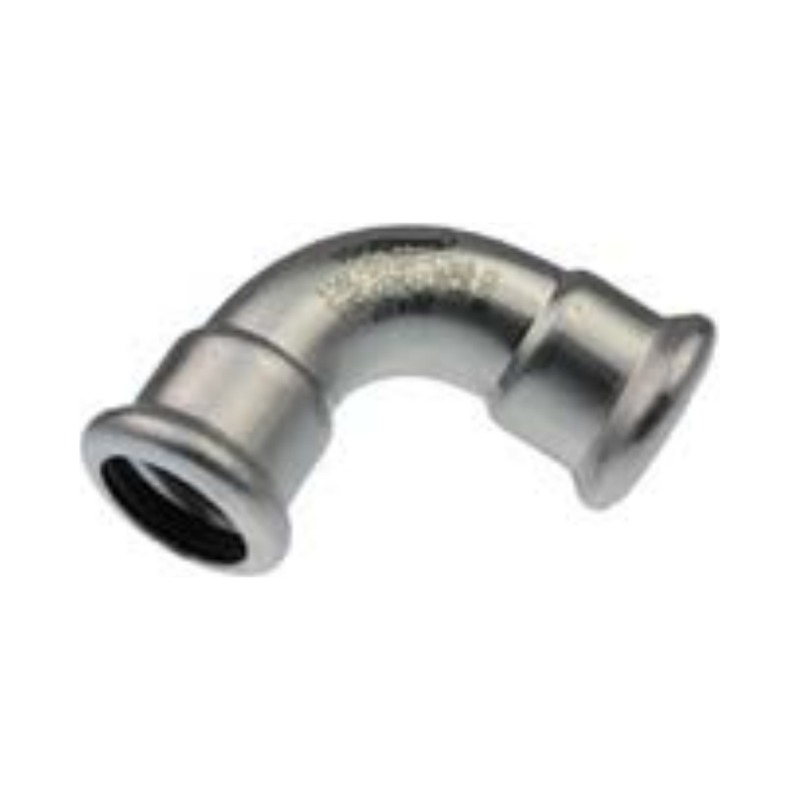

The XPress 316 Stainless Steel Elbow 90 Degree, maker code SS12, is a 90 degree elbow with a press socket on both ends for the 316L XPress Stainless press fit system, 15mm to 54mm, rated 16 bar. Need an XPress 316 Stainless Steel Elbow 54mm in Glasgow? Collect from our shop at 555 South Street, Glasgow G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYSSE9015 |
|
15mm | £11.58 inc VAT (£9.65 ex VAT) |
-
+
|
£11.58 inc VAT | ||
| PYSSE9022 |
|
22mm | £16.22 inc VAT (£13.52 ex VAT) |
-
+
|
£16.22 inc VAT | ||
| PYSSE9028 |
|
28mm | £20.46 inc VAT (£17.05 ex VAT) |
-
+
|
£20.46 inc VAT | ||
| PYSSE9035 |
|
35mm | £32.17 inc VAT (£26.81 ex VAT) |
-
+
|
£32.17 inc VAT | ||
| PYSSE9042 |
|
42mm | £53.74 inc VAT (£44.78 ex VAT) |
-
+
|
£53.74 inc VAT | ||
| PYSSE9054 |
|
54mm | £74.20 inc VAT (£61.83 ex VAT) |
-
+
|
£74.20 inc VAT |
The Pegler Yorkshire XPress 316 Stainless Steel Elbow 90 Degree, maker code SS12, is a 90 degree elbow with a press socket on both ends for the XPress Stainless press fit system. We list it in 15mm, 22mm, 28mm, 35mm, 42mm and 54mm for plumbers and mechanical contractors on commercial water and heating work in Glasgow and the West of Scotland.
Push the tube fully into each socket and press it, and you have a square turn in the pipe run. It is made of 316L stainless steel with an EPDM sealing ring, so it suits drinking water, heating, chilled water and compressed air. Every size, the XPress 316 Stainless Steel Elbow 54mm included, can be bought online or over our South Street counter.
XPress uses the M press profile. Mark the insertion depth on the tube before you push it in, so you know it is fully home before you press.
Couplings, tees and bends to go with it are in our Pegler Yorkshire XPress 316 stainless steel press fit range.
Specification
- Brand: Pegler Yorkshire (VSH, Aalberts IPS)
- Range: XPress Stainless
- Maker code: SS12: 11620 (15mm), 11622 (22mm), 11623 (28mm), 11624 (35mm), 11625 (42mm), 11626 (54mm)
- Type: Elbow 90 degree, press fit x press fit
- Material: Stainless steel 316L (1.4404)
- Seal: EPDM sealing ring, M press profile
- Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm
- Max pressure: 16 bar (PN16)
- Suitable for: Drinking water, heating, chilled water and compressed air
Common Questions
Is the SS12 a 90 degree elbow? Yes. The SS12 turns the pipe through 90 degrees, with a press socket on both ends. For a 45 degree turn use the SS21 obtuse elbow.
Do you have the XPress 316 Stainless Steel Elbow 54mm in stock in Glasgow? Yes. Every size from 15mm to 54mm shows In Stock and can be collected from our counter.
Which press jaws do I need for XPress Stainless? XPress uses the M profile, so use M profile jaws of the right size on a compatible press tool.
Can I use it on copper pipe? No. Use stainless fittings on stainless tube; copper XPress is a separate range.
Call in at our counter, 555 South Street, Glasgow G14 0QX, or buy online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm. Tel: 0141 404 5128.
| Size |
15mm ,22mm ,28mm ,35mm ,42mm ,54mm |
|---|
