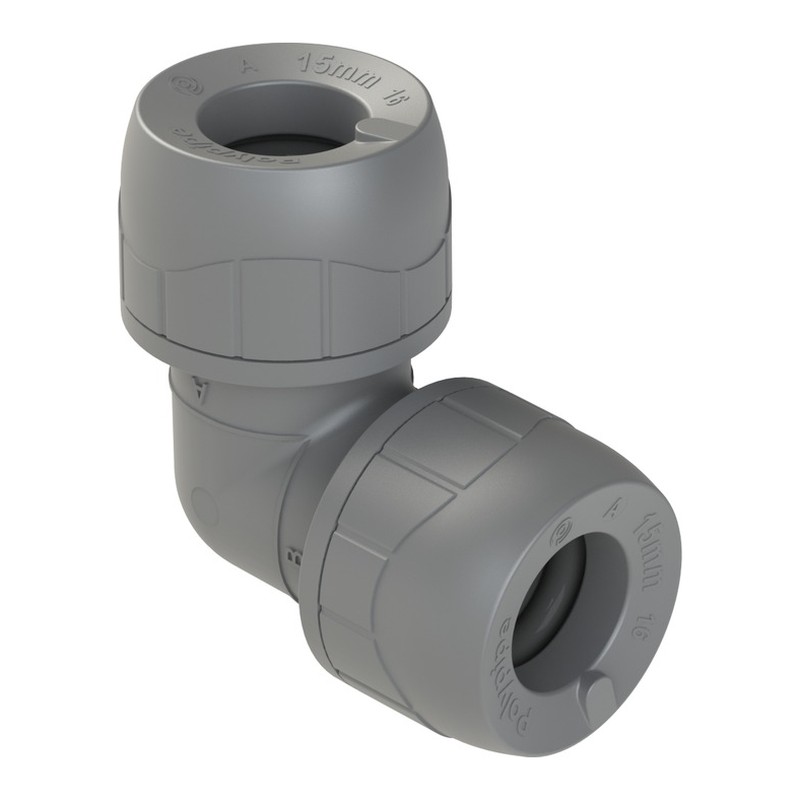

POLYPLUMB EQUAL ELBOW 10mm to 28mm

The Polyplumb Equal Elbow is a 90 degree bend with the same size Push Fit socket on each end. Push the pipe in on both sides and the turn is done.

Fitting a Polyplumb Equal Elbow

Plastic pipe can be bent gently, but a tight corner needs an elbow. You will use these at the foot of risers, around joists and where pipe turns up to an appliance. Microbore radiator tails take the 10mm. Most house jobs run in 15mm and 22mm, and 28mm handles larger mains. Carry spares of each size, because a job always eats one more than planned.

• Sizes: 10mm, 15mm, 22mm and 28mm
• Equal 90 degree elbow
• Polyplumb Push Fit sockets
• Takes plastic pipe with a stiffener, or copper

Square cuts matter more with Push Fit than with any other joint, because the O ring seals on the outside of the pipe. Use a proper cutter, not a hacksaw, on plastic. Fit the stiffener, mark the insertion depth and push in. Elbows can rotate after fitting, so clip the pipe to hold the angle. Our Polyplumb Fittings page has the rest.

Elbows over the counter in Glasgow

Plumb Parts, 555 South Street, Glasgow G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm, with online orders taken around the clock.

Specification

• Brand: Polyplumb
• Range: Polyplumb Push Fit
• Connection: Push Fit sockets both ends
• Sizes: 10mm, 15mm, 22mm and 28mm
• Suitable for: Polybutylene and copper pipe on hot, cold and heating systems
• Standard/approval: BS 7291 Class S, Kitemarked, BBA certified
• Guarantee: 50 years

Common Questions

Do I need an elbow or can I bend the plastic pipe?

Gentle curves are fine, but use an elbow for a tight 90 degree turn.

Can a Polyplumb elbow swivel after fitting?

Yes, Push Fit elbows can rotate, so clip the pipe to hold the angle.

Which elbow suits microbore?

The 10mm elbow, for microbore radiator tails. Keep a few spares of each size, as jobs always use one more than planned.
