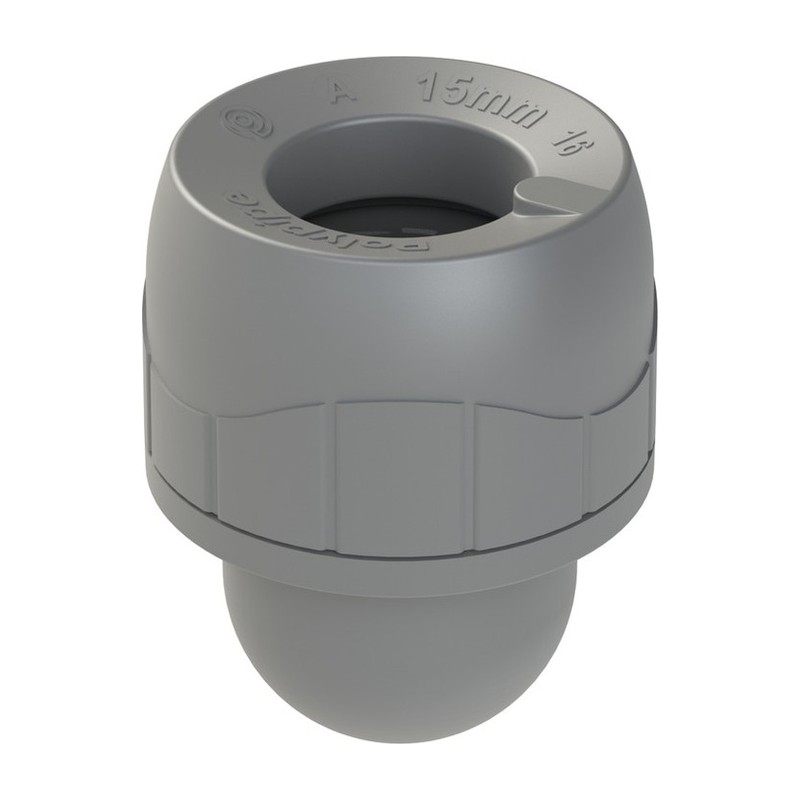

PolyPlumb Socket Blank End 10mm to 28mm

The Polyplumb Socket Blank End is a cap that pushes onto the end of a pipe and seals it shut. It works like any other Polyplumb socket, but with nothing on the far side.

Uses for a Polyplumb Socket Blank End

On first fix, you often run a spur for a tap or radiator that will not go in until later. A blank end lets you fill and test the system with that spur sealed. It is also handy for capping a pipe when an appliance is taken out, or for pressure testing a section before connecting it.

• Sizes: 10mm, 15mm, 22mm and 28mm
• Push Fit socket cap
• Fits over the pipe end
• Stiffener needed in plastic pipe

Cut and stiffen the pipe as you would for any other joint, and push the cap fully on. Do not leave a capped pipe where it might get knocked, because a Push Fit cap relies on the pipe being held still. Clip it close to the end. For spigot caps and other parts, see Polyplumb Fittings.

Blank ends from our Glasgow counter

Look in at Plumb Parts, 555 South Street, Glasgow G14 0QX, Monday to Friday 8am to 5pm, Saturday and Sunday 8am to 1pm. Or just order online.

Specification

• Brand: Polyplumb
• Range: Polyplumb Push Fit
• Connection: Push Fit socket cap
• Sizes: 10mm, 15mm, 22mm and 28mm
• Suitable for: Polybutylene and copper pipe on hot, cold and heating systems
• Standard/approval: BS 7291 Class S, Kitemarked, BBA certified
• Guarantee: 50 years

Common Questions

What is a Polyplumb socket blank end? It is a cap that pushes onto the end of a pipe to seal it off. It uses the same stainless steel grab ring as the rest of the Polyplumb range.

Can it be used on central heating? Yes, Polyplumb copes with heating as well as hot and cold supplies, so radiator and underfloor circuits are fine.

Can I take the blank end off and use it again? Yes, Polyplumb fittings can be taken apart and reused or changed later.

Do I need a pipe stiffener with it? Yes, fit a Polyplumb pipe stiffener in the end of polybutylene pipe before you push the cap on, so the joint seals properly.

Can I paint Polyplumb fittings? Yes, they take ordinary household paints.

What guarantee does it come with? Polyplumb carries a 50 year guarantee, and it is Kitemarked and BBA certified.

Datasheets

• Polypipe PolyPlumb Enhanced Installation and Testing Guide (PDF)
