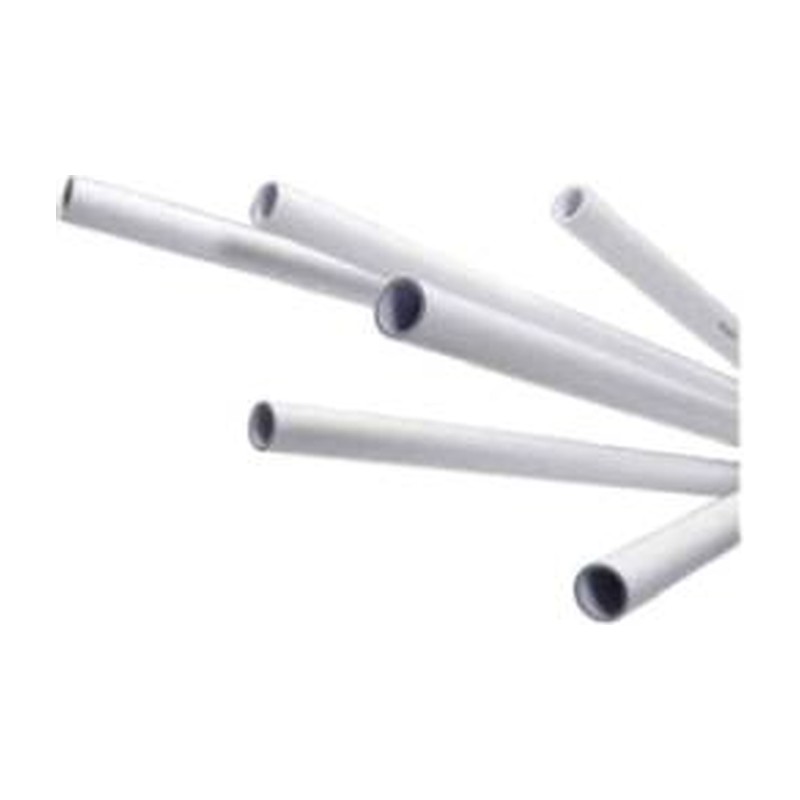

Speedfit PEX Barrier Pipe 22mm

For main runs, Speedfit PEX Barrier Pipe 22mm is the size to use, carrying the flow and return or main hot and cold supplies that feed your 15mm branches.

Where Speedfit PEX Barrier Pipe 22mm goes

Think boiler flow and return, cylinder feeds and main distribution under the floor. It’s John Guest’s cross-linked polyethylene pipe with a barrier layer that helps keep oxygen out of heating water, made to BS 7291 Class S. Joints are made with JG Speedfit Push Fit fittings, and no flame or solder is needed, which makes it handy in lofts and timber floors.

• 22mm x 1m
• 22mm x 2m
• 22mm x 3m

Fit a 22mm Speedfit pipe insert every time before the pipe goes into a fitting. Cut square with a plastic pipe cutter and check there’s no burr or score on the outside that could damage the O-ring. 22mm is stiffer than 15mm, so allow a gentle bend radius or use a bend fitting rather than kinking it. Near the boiler, check the manufacturer’s instructions on how far from the appliance plastic pipe can start. Clips, inserts and fittings are in our John Guest Speedfit pipe range.

Glasgow collection for 22mm plastic pipe

Come in to Plumb Parts, 555 South Street, Glasgow G14 0QX. Counter hours: Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. The website takes orders as well.

Specification

• Brand: JG Speedfit
• Material: PEX (cross-linked polyethylene) with an oxygen barrier
• Connection: JG Speedfit Push Fit fittings, with a Speedfit pipe insert in each cut end
• Sizes: 22mm, in 1m, 2m or 3m lengths
• Suitable for: Boiler flow and return and main runs
• Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
• Max pressure: 12 bar at 20°C, 6 bar at 65°C, 3 bar at 82°C
• Max temperature: Up to 95°C hot water
• Guarantee: 50 years with JG Speedfit barrier pipe

Common Questions

Do I need a special cutter for 22mm PEX?

Use a plastic pipe cutter for a clean, square end. A hacksaw leaves a ragged edge that can damage the O ring.

Can I join 22mm Speedfit pipe to copper?

Yes, Speedfit fittings take copper too. Deburr the copper so it does not score the seal.

Why fit an insert in 22mm Speedfit pipe?

It supports the pipe wall from inside, so the pipe stays round and the joint holds its seal.

Datasheets

• JG Speedfit White PEX Barrier Pipe Length Data Sheet (PDF)
