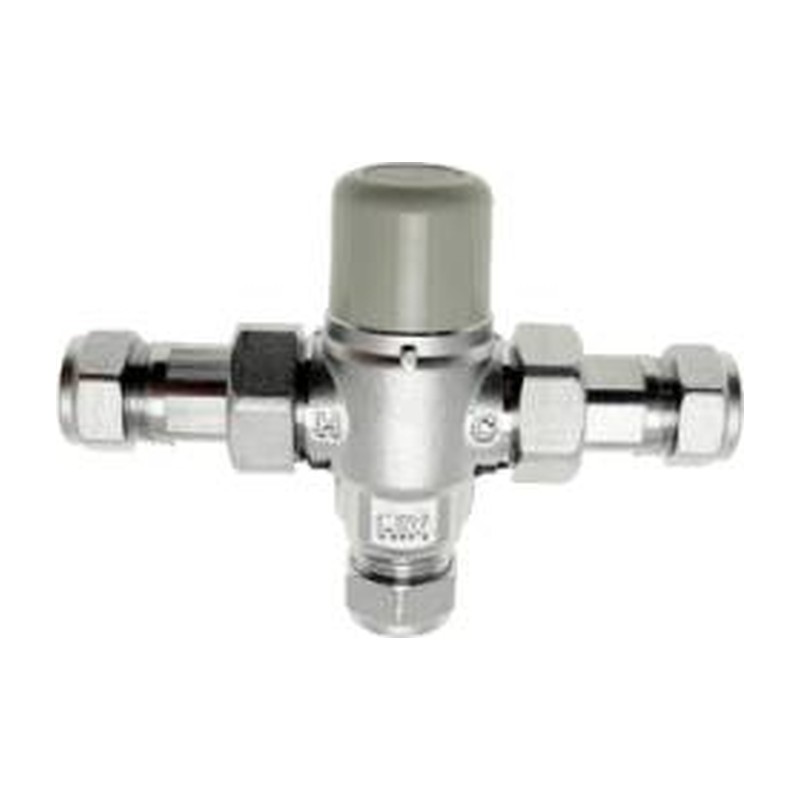

Thermostatic Mixing Valve 28mm

When one valve has to feed a run of outlets, the thermostatic mixing valve 28mm gives you the flow to do it. It has 28mm connections and gives high flow even at low head.

Features of the thermostatic mixing valve 28mm

The body is DZR brass with a chrome finish. A fast temperature sensor inside reacts quickly when the supply changes. Each inlet has its own non-return valve, so hot and cold cannot cross over. A locking cap stops anyone changing the setting by accident.

• Size: 28mm connections
• DZR brass body, chrome plated
• Non-return valve in each inlet
• Locking cap on the adjustment
• Can be fitted in any orientation

Because it can go in any position, it fits into awkward plant spaces and ceiling voids. The connections can be undone, so the valve comes off for service without disturbing the pipework. Use it for a group of basins in a washroom, or for a bank of showers in a sports club. Flush the system first, fit isolating valves, and commission it with a thermometer at the nearest and furthest outlets.

Larger TMVs from our Glasgow shop

Smaller sizes are in our thermostatic mixing valves section.

Ask at the Plumb Parts trade counter, 555 South Street, Glasgow G14 0QX. Hours are Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or order online.

Specification

• Material: DZR brass, chrome plated
• Sizes: 28mm
• Suitable for: Groups of basins or showers fed from one valve

Common Questions

Why choose a 28mm TMV instead of one at each tap?

One larger valve can serve a run of basins or showers from a single point, which cuts the number of valves to service. It gives high flow even at low head.

Can the 28mm mixing valve be fitted on its side?

Yes, it can go in any orientation, which helps in ceiling voids and ducts. Leave access for servicing and for the locking cap.

Does it stop hot and cold crossing over?

Yes, each inlet has its own non-return valve. Fit isolating valves and strainers too, so the valve can be serviced.
