Warix Cylinder Flange Male 22mm
Price range: £19.22 through £20.93 inc VAT ( Price range: £16.02 through £17.44 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The WARIX Cylinder FLANGE Male fits the top of a vented cylinder to give a shower pump its own feed, in 22mm x 3/4″ and 22mm x 1″. Plumb Parts in Glasgow can help you pick the size.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| WARIXCYLFLM22E |
|
22mm x 3/4" | £19.22 inc VAT (£16.02 ex VAT) |
-
+
|
£19.22 inc VAT | ||
| WARIXCYLFLM22F |
|
22mm x 1" | £20.93 inc VAT (£17.44 ex VAT) |
-
+
|
£20.93 inc VAT |

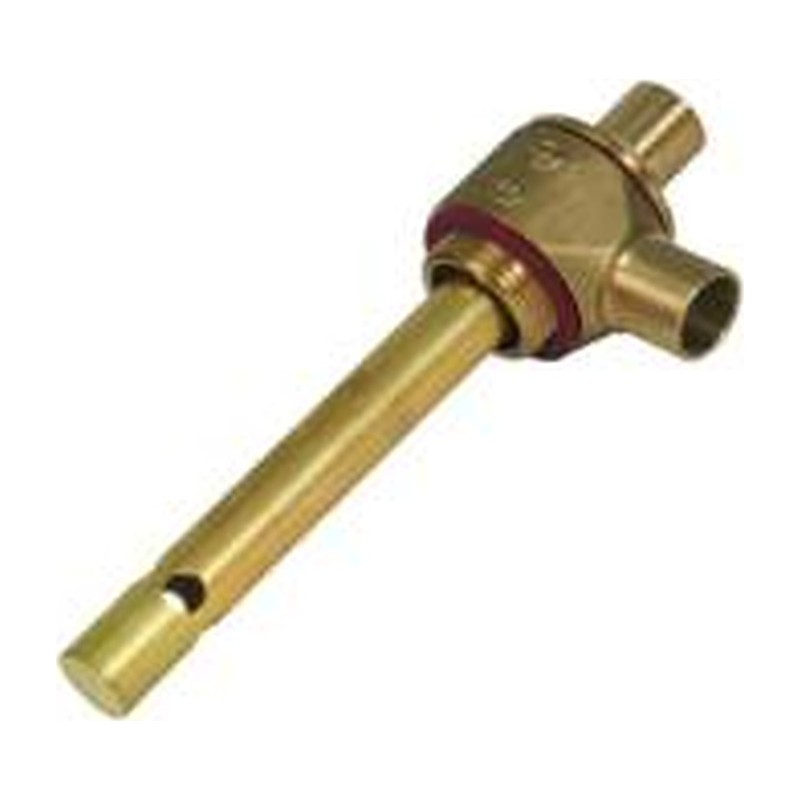

A Warix Cylinder Flange Male screws onto the top of a vented hot water cylinder and splits the shower supply from the vent and hot draw-off. It comes in 22mm x 3/4″ and 22mm x 1″, with 22mm pipe connections and either a 3/4″ or 1″ thread to suit the cylinder.
How the Warix cylinder flange works
When a shower pump shares the top outlet of a cylinder with the vent, it can draw in air, which makes the shower surge and the pump cut out. The Warix is a variation on the York flange, with the shower outlet on top and the vent on the side. It takes water for the shower from inside the cylinder, so the pump gets a steady feed without air bubbles.
Specification
- Range: Warix
- Material: Brass
- Connection: 3/4″ or 1″ male thread to the cylinder, 22mm pipe connections
- Sizes: 22mm x 3/4″ and 22mm x 1″
- Suitable for: Shower pump feed from a vented hot water cylinder
Common Questions
How is a Warix flange laid out?
The shower outlet comes off the top and the vent off the side, so each pipe has its own connection. It is a variation on the York flange.
Which Warix size do I need?
Check the thread on the cylinder top: 3/4″ or 1″. Both versions have 22mm pipe connections.
Will a Warix flange stop my shower pump surging?
It gives the pump a feed with less air, which is the usual cause of surging. If it still surges, check the pump and pipe layout with the pump maker’s guide.
Glasgow fitting advice
Check the cylinder top thread and size before choosing between the two versions. Read the shower pump instructions too, because pump makers often say which flange types they accept. Turn off the cold feed, drain the cylinder down a little, and remove the old fitting. Seal the threads to suit, connect the vent and hot pipes in the right places, and refill slowly while you watch for leaks.
The WARIX Cylinder FLANGE Male sits beside the Danzey and York flanges in our brass fittings range.
Plumb Parts supplies both sizes from its counter at 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Orders can also be placed online.
| Sizes |
22mm x 3/4" ,22mm x 1" |
|---|
