Washing Machine Straight Valve 15mm

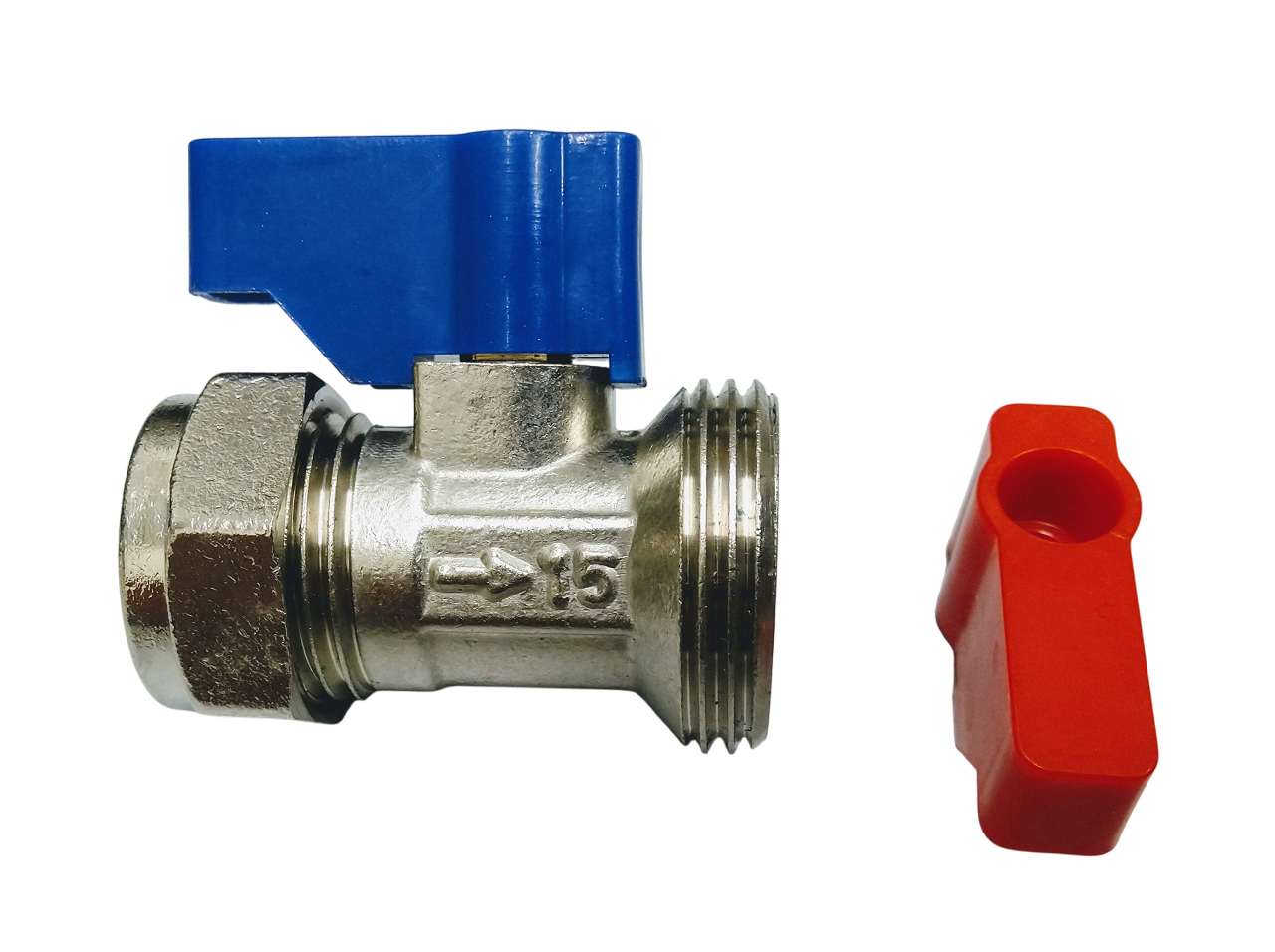

The Washing Machine Straight Valve is an appliance shut off valve where the 15mm pipe and the 3/4″ hose outlet run in a straight line. Use it where the supply pipe comes straight towards the machine.

When to fit a Washing Machine Straight Valve

Choose the straight pattern when the pipe runs horizontally along a wall and the hose leaves in line with it, or when the pipe rises straight up behind the machine. It keeps everything compact and in line. If the pipe arrives at a right angle, an angled version will usually sit neater.

• Size: 15mm x 3/4″
• Straight pattern
• Quarter turn handle
• 3/4″ threaded outlet for the hose

Cut the pipe square and fit the inlet using the nut and olive supplied. Set the handle where it can be reached and turned easily. Screw the hose on by hand with its washer in place. Turn the valve off before you pull the machine out, because hoses can come off when the machine is moved. For angled and tee valves, look through Valves and Control Devices.

Straight appliance valves in Glasgow

Plumb Parts has its trade counter at 555 South Street, Glasgow G14 0QX. It opens Monday to Friday 8am to 5pm, Saturday and Sunday 8am to 1pm, and online ordering is open too.

Specification

• Connection: 15mm inlet, 3/4″ threaded outlet, in line
• Sizes: 15mm x 3/4″
• Suitable for: Washing machine or dishwasher supplies where the pipe comes straight to the appliance

Common Questions

What size is a washing machine valve?

The standard is 15mm on the pipe side and 3/4″ on the hose side. Most machine fill hoses have a 3/4″ nut.

Straight or angled washing machine valve?

Straight suits a pipe coming end on to the machine space. Angled suits a pipe coming along the wall or up from the floor.

How do I stop the valve leaking at the hose?

Make sure the hose has its rubber washer, and tighten the nut by hand. Overtightening squashes the washer and can split it.
