XPRESS YORKSHIRE PRESS-FIT COPPER MALE UNION ADAPTOR 15mm to 54mm
Price range: £24.01 through £76.69 inc VAT ( Price range: £20.01 through £63.91 ex VAT)
The Xpress Yorkshire Press-Fit Copper Male Union Adaptor goes from press to male thread with a union, in sizes from 15mm x 1/2 inch to 54mm x 2 inch. It lets kit come off for service. From Plumb Parts in Glasgow.
| SKU | Thumbnail | SIZE | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYUM15D |
|
15mm x 1/2" | £24.01 inc VAT (£20.01 ex VAT) |
-
+
|
£24.01 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYUM15E |
|
15mm x 3/4" | £25.25 inc VAT (£21.04 ex VAT) |
-
+
|
£25.25 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYUM22E |
|
22mm x 3/4" | £35.41 inc VAT (£29.51 ex VAT) |
-
+
|
£35.41 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYUM28F |
|
28mm x 1" | £39.84 inc VAT (£33.20 ex VAT) |
-
+
|
£39.84 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYUM54I |
|
54mm x 2" | £76.69 inc VAT (£63.91 ex VAT) |
-
+
|
£76.69 inc VAT ({price_excluding_tax} ex VAT) |

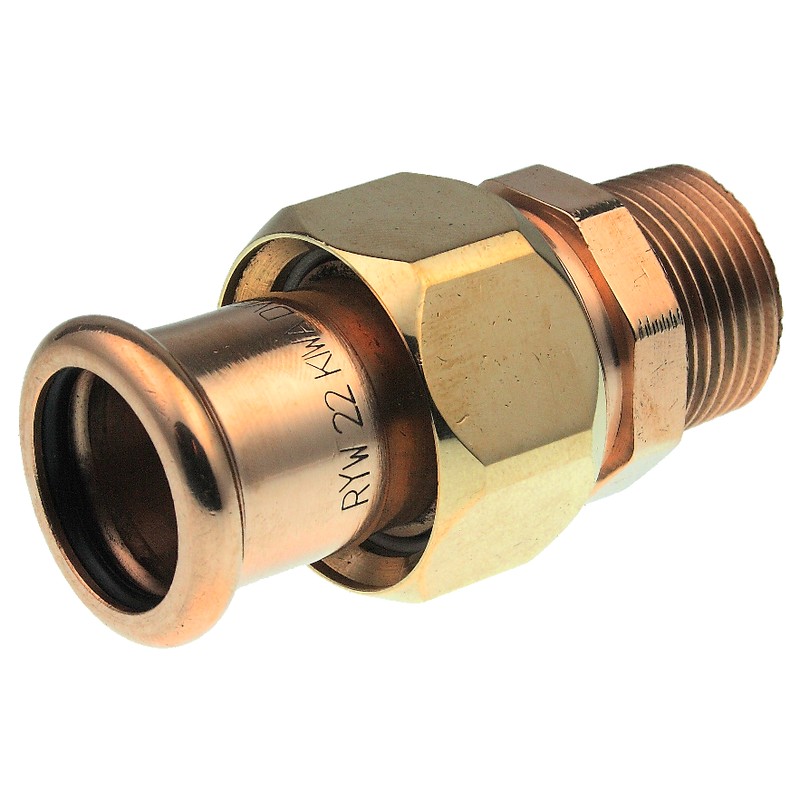

An Xpress Yorkshire Press-Fit Copper Male Union Adaptor joins copper tube to a female threaded fitting through a union, so the joint can be split later without cutting pipe. The press end goes on the copper, and the other side carries a male BSP thread.
What it’s used for
Unions earn their keep anywhere you’ll need to take something off again: pumps, valves, plate heat exchangers, water heaters and meters. Thread the male end into the kit, press the copper into the other end, and the union nut lets you break the joint for servicing or replacement.
As an Xpress copper fitting, it is meant for water, heating and chilled water, never gas.
Sizes available
- Smallest: 15mm x 1/2″
- 15mm x 3/4″
- 22mm x 3/4″
- 28mm x 1″
- 54mm x 2″
Fitting tips
Do the threaded side first, using PTFE tape or a thread sealant that suits the system, then press the copper last so the pressed joint is never twisted. Cut the tube square, deburr it, and mark the insertion depth.
The female version and threaded elbows are in our Xpress copper Press-Fit range.
Collecting union adaptors in Glasgow
Male union adaptors are sold at the Plumb Parts trade counter, 555 South Street, Glasgow G14 0QX, or order online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Specification
- Brand: Pegler Yorkshire
- Range: Xpress Copper
- Maker code: S69
- Connection: Press Fit with EPDM seal, union, male BSP thread
- Sizes: 15mm x 1/2″, 15mm x 3/4″, 22mm x 3/4″, 28mm x 1″ and 54mm x 2″
- Standard or approval: EN 1254-7 press fittings, BSI certificate KM 789225 (water fittings)
- Max pressure: 16 bar
- Suitable for: Hot and cold water, heating and chilled water on hard and half-hard copper tube; not gas
Common Questions
What is the smallest male union adaptor listed?
The 15mm x 1/2″. There is also a 15mm x 3/4″, then 22mm x 3/4″, 28mm x 1″ and 54mm x 2″.
Where would I fit a male union adaptor?
Into a female port on a pump, valve, water heater or meter, so it can be taken off later. The union nut is the break point.
Should I use PTFE on the male thread?
Yes, or a thread sealant that suits the system. Do the thread first, then press the copper.
| SIZE |
15mm x 1/2" ,15mm x 3/4" ,22mm x 3/4" ,28mm x 1" ,54mm x 2" |
|---|
