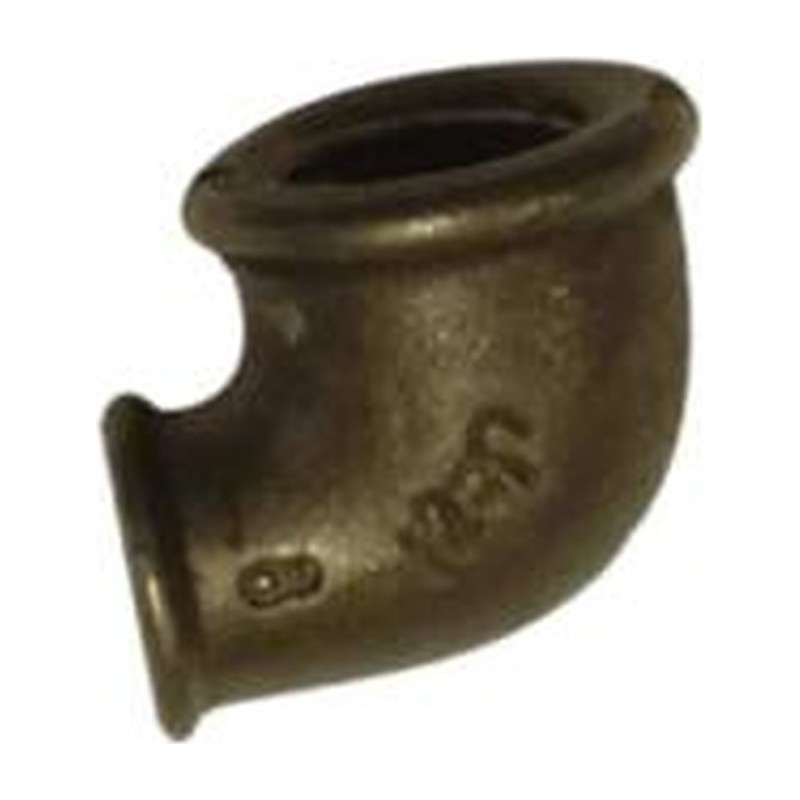

Black Malleable Iron 90 Deg Reducing Elbow F x F 1/2 inch to 2 inch

Black Malleable Iron 90 Deg Reducing Elbow F x F

Black Malleable Iron 90 deg reducing Elbow F x F used to connect two male threaded fittings at 90 deg.

At Plumb Parts in Glasgow, we stock a wide range of Black and Galvanised Malleable Iron Pipe Fittings.

Due to their durability, corrosion resistance and mechanical strength these fittings are ideal when compared to grey cast iron and mild steel.

Black Malleable attachments are solidly made for long-lasting durability and dependability. Black Malleable Iron fire and corrosion-resistant properties make them especially useful for natural gas or hot water heating systems or plumbing applications making these fitting ideal to use in Schools, Nursing Homes, Hospitals, Warehouses, and Industrial Spaces.

Malleable iron pipe fittings are available in black and galvanised finishes with the majority of fittings having the BSI Kitemark approval and conforming to BS EN 10242 and have UL approval.

 Our stock of malleable iron fittings is of the Blackheart type which is ideally suited to pipe fittings and manufacturing processes which conforms to BS EN 1562.

Malleable Fittings Features & Benefits

Offer taper to taper threaded joints ensuring uniform stressing of threads due to full engagement between male and female threads, thus avoiding localised stress.

Made from ‘blackheart’ MI, ensuring even distribution of carbon content.

Specially tested fittings for high pressures above 25 bar

Have a full clear bore.

Threads with precise axial alignment ensure high sealing forces and a straight pipe run

Have a high factor of safety over the working pressure.

Fields of Application:

Sanitary, heating and gas installation

Cooling and air conditioning

Sprinkler and gas fire extinguishing systems

HVAC

Steam

General non-aggressive media

Construction of industrial plants (e.g. gas, emulsion, and pressured air pipework)

Machine construction (e.g. oil, cooling, and lubrication pipes)

Construction of petrol stations (gas lines)

Commercial and domestic vehicles construction

 Variations

 At Plumb Parts in Glasgow we keep a variety of Black and Galvanised Fittings including;

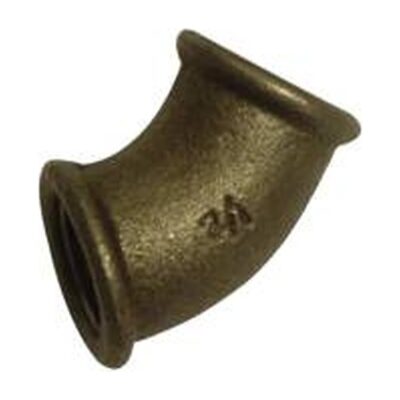

  Black Iron 45 deg Elbow F x F

 Black Iron 45 deg Elbow M x F

Black Iron 90 deg Elbow F x F

 Black Iron 90 deg Elbow M x F

Black Iron 90 deg Reducing Elbow F x F

Black Iron 90 deg Bend F x F

Black Iron 90 deg Bend M x F

Black Iron Back Nut

Black Iron Elbow Union M x F

Black Iron Elbow Union F x F

Black Iron Flanged Plug

Black Iron Plain Plug

Black Iron Hexagon Bush M x F

Black Iron Hexagon Cap

Black Iron Nipple M x M

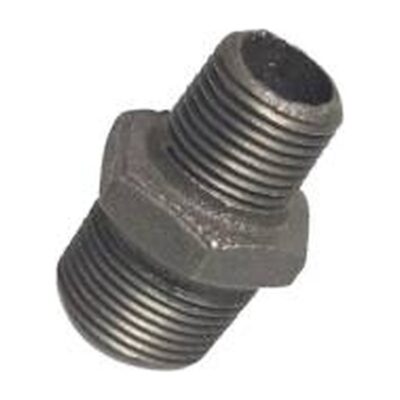

Black Iron Reducing Nipple M x M

Black Iron Socket F x F

Black Iron Reducing Socket M x F

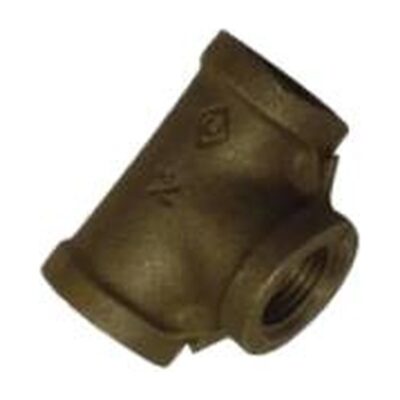

Black Iron Equal Tee

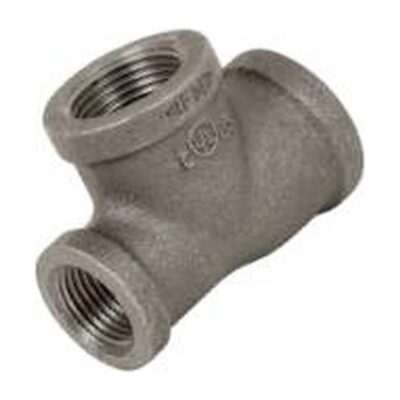

Black Iron Reducing Tee

Black Iron Straight Union M x F

Black Iron Straight Union F x F

Galvanised Iron 45 deg Elbow F x F

 Galvanised Iron 45 deg Elbow M x F

Galvanised Iron 90 deg Elbow F x F

 Galvanised Iron 90 deg Elbow M x F

Galvanised Iron 90 deg Reducing Elbow F x F

Galvanised Iron 90 deg Bend F x F

Galvanised Iron 90 deg Bend M x F

Galvanised Iron Back Nut

Galvanised Iron Elbow Union M x F

Galvanised Iron Elbow Union F x F

Galvanised Iron Flanged Plug

Galvanised Iron Plain Plug

Galvanised Iron Hexagon Bush M x F

Galvanised Iron Hexagon Cap

Galvanised Iron Nipple M x M

Galvanised Iron Reducing Nipple M x M

Galvanised Iron Socket F x F

Galvanised Iron Reducing Socket M x F

Galvanised Iron Equal Tee

Galvanised Iron Reducing Tee

Galvanised Iron Straight Union M x F

Galvanised Iron Straight Union F x F

Specification

• Material: Black malleable iron
• Connection: Female BSP thread on both ends, one larger than the other
• Sizes: 1/2″ x 3/8″, 3/4″ x 3/8″, 3/4″ x 1/2″, 1″ x 1/2″, 1″ x 3/4″, 1.1/4″ x 1/2″, 1.1/4″ x 3/4″, 1.1/4″ x 1″, 1.1/2″ x 1″, 1.1/2″ x 1.1/4″, 2″ x 1.1/4″ and 2″ x 1.1/2″
• Suitable for: Turning and reducing in one fitting on steel pipe

Common Questions

What is a reducing elbow? It turns the pipe through 90 degrees and drops the size at the same time. This one is female threaded at both ends, so it takes male threaded pipe or fittings.

Can black malleable iron fittings be used on gas? Yes, black malleable iron is widely used on natural gas pipework. Any gas installation must be carried out by a Gas Safe registered engineer.

Are black iron fittings OK for a water supply? They are well suited to heating pipework. For water supplies many installers go for the galvanised version in the same range, as plain black iron can rust on the inside.

Can I paint black malleable fittings? Yes. Clean off any oil or grease first, then a metal primer and topcoat will take well.

How do I seal and tighten the threads? Put a suitable thread sealant or PTFE tape on the male thread and tighten with a pipe wrench, as the tapered threads pull up tight. On gas, make sure the sealant is approved for gas.

How are black iron pipe sizes measured? The inch sizes are nominal bore sizes, not the outside measurement, so 3/4 inch pipe measures quite a bit more than 3/4 inch across. Check your existing fittings or ask us if you are unsure.

Do elbows reduce water flow? Every bend adds a bit of resistance, so a run with lots of elbows will lose some flow. Where there is room, a bend with a gentler sweep helps.
