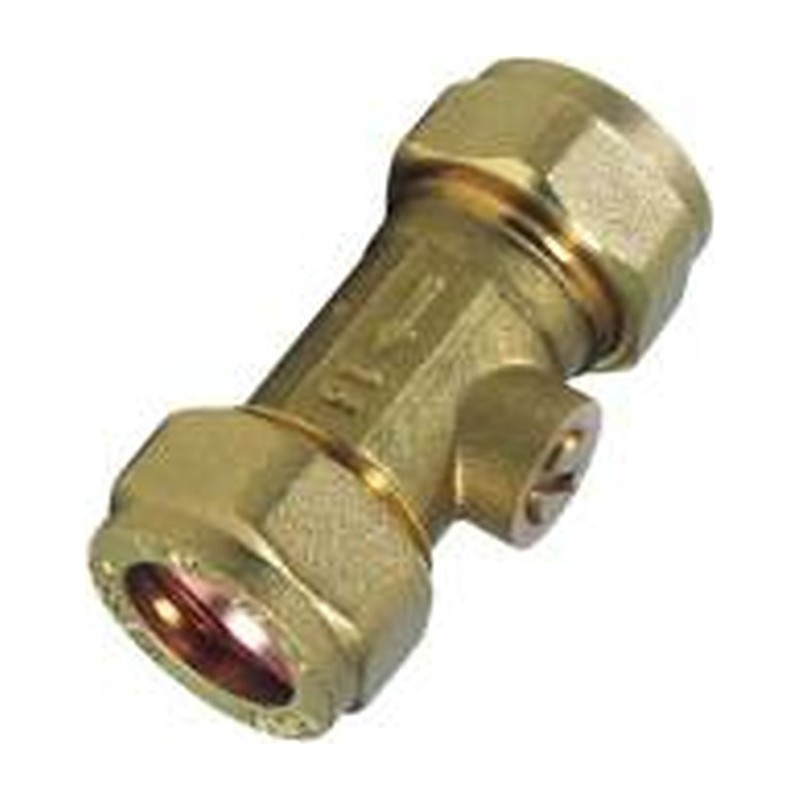

Brass Isolation Valve 15mm to 22mm

Brass Isolation Valve

Valves

At Plumb Parts, Plumbers Merchants in Glasgow, our Valves are available in the following:

Sizes: 15mm, 22mm

Our range of Valves includes: Angled Isolating Valves, Angled Washing Machine Valves, Ball Type Pump Valves, Blue Lever Ball Valve Compression, Capillary Gas Cock Rigid Fan, Compression Brass Lever Isolating Valves, Compression Iso Gas Cock, Copper Floats Round, Float Valve High Pressure Part 1, Float Valve High Pressure Part 2, Full Bore Isolating Valve Compression x Compression, Garden Tap Kit, Gas Lever Ball Valve F x F, Gas Yellow Lever Ball Valves, Gate Type Pump Valves, Gate Valves, Gun Metal Gate Valves, Hose Union Bib Tap Lockshield Valves, Hose Union Bib Tap Valves, Isolating Valves, Isolating Valves with Lever, Lockshield Gate Valves, Mini Lever Ball Valves, Mini Lever Ball Valve Elbows, MT Draw Off Cock Type A Capillary, MT Draw Off Cock Type B, Red Butterfly Handle Valves, Red Lever Ball Valves, Service Valve CxSwivel Nut, Single Check Valves, Spring Check Valves, Stopcocks, DZR Stopcocks, DZR Stopcock Lockshield, Straight Washing Machine Valves, Surestop Remote Stopcocks, Swing check Valves, Washing Machine Self Cutting Valves, Washing Machine Tee Valves.

Available Online and at Plumb Parts Plumbers Merchants in Glasgow Open Monday to Friday 8am to 5pm, Saturday and Sunday 8am to 1pm

• WRAS Approved
• Full Bore
• Free Delivery Over £250.00

Common Questions

What does an isolation valve actually do? It lets you cut the water to a single tap, cistern or appliance so you can work on it while the rest of the house stays on. Handy for swapping a tap or a fill valve without draining anything down.

Can you put isolation valves on central heating pipes? Yes, they’re often fitted on heating pipework, for example either side of a pump so it can be changed without draining the system. On radiators themselves, the valve on each end usually does the isolating job already.

Can I use a brass isolation valve on plastic pipe? You can, as long as you fit a pipe insert into the plastic pipe end so the compression olive has something solid to grip. Without the insert the pipe can squash and the joint may weep.

Which way do I turn an isolation valve to shut it off? Turn the slot a quarter turn so it sits across the pipe; when the slot lines up with the pipe, the water is flowing. A flat-blade screwdriver is all you need.

Do I need PTFE tape on an isolation valve? Not on the compression joints, as the olive makes the seal. A wee smear of jointing compound on the olive can help, but tape wrapped round the thread does nothing for a compression fitting.

What size isolation valve do I need? Match it to the outside diameter of your pipe. Most tap and appliance feeds are 15mm, while 22mm is used on the bigger supply runs.

Do isolation valves restrict flow? A full bore valve like this one keeps the opening the same size as the pipe, so it won’t choke the flow when fully open. Reduced-bore types can cut flow slightly, which matters more on low-pressure systems.
