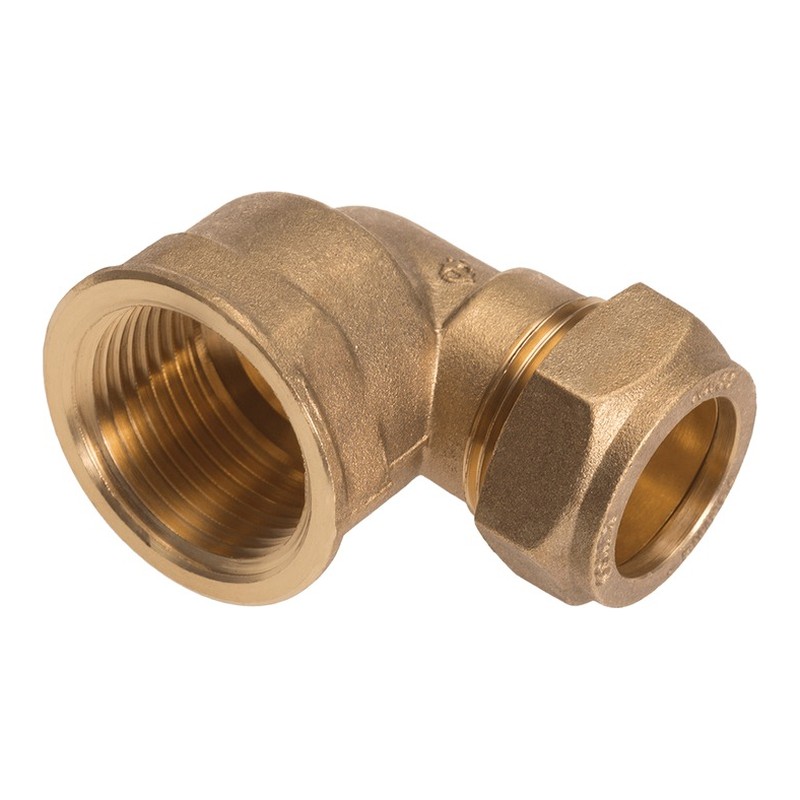

Compression DZR Female Elbow 15mm to 54mm
Price range: £4.06 through £83.57 inc VAT ( Price range: £3.38 through £69.64 ex VAT)
Free Click and Collect from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
The Compression DZR Female Elbow turns 90 degrees from copper to a female thread, sized 15mm x 1/2″ through to 54mm x 2″, for pump valves and male tails. Sold at Plumb Parts in Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
|
15mm x 1/2" | £4.06 inc VAT (£3.38 ex VAT) |
-
+
|
£4.06 inc VAT ({price_excluding_tax} ex VAT) | |||
|
|
15mm x 3/4" | £10.49 inc VAT (£8.74 ex VAT) |
-
+
|
£10.49 inc VAT ({price_excluding_tax} ex VAT) | |||
|
|
22mm x 3/4" | £6.68 inc VAT (£5.57 ex VAT) |
-
+
|
£6.68 inc VAT ({price_excluding_tax} ex VAT) | |||
|
|
22mm x 1" | £10.06 inc VAT (£8.38 ex VAT) |
-
+
|
£10.06 inc VAT ({price_excluding_tax} ex VAT) | |||
|
|
28mm x 1" | £11.34 inc VAT (£9.45 ex VAT) |
-
+
|
£11.34 inc VAT ({price_excluding_tax} ex VAT) | |||
|
|
35mm x 1.1/4" | £24.94 inc VAT (£20.78 ex VAT) |
-
+
|
£24.94 inc VAT ({price_excluding_tax} ex VAT) | |||
|
|
42mm x 1.1/2" | £42.54 inc VAT (£35.45 ex VAT) |
-
+
|
£42.54 inc VAT ({price_excluding_tax} ex VAT) | |||
|
|
54mm x 2" | £83.57 inc VAT (£69.64 ex VAT) |
-
+
|
£83.57 inc VAT ({price_excluding_tax} ex VAT) |
A Compression DZR Female Elbow turns through 90 degrees and changes from copper to thread on the way: Compression on one end, a female BSP thread on the other. Its body is DZR brass, which resists losing its zinc in aggressive water.
Jobs for a DZR female elbow
Connecting copper to anything with a male thread where the pipe has to come in at a right angle. Think pump valves, boiler and cylinder connections, male-ended valves, and adaptors onto steel or other systems. With the range running up to 54mm x 2″, it also covers plant room work on larger pipe.
Sizes available
- 15mm x 1/2″ and 15mm x 3/4″
- 22mm x 3/4″ and 22mm x 1″
- 28mm x 1″
- 35mm x 1 1/4″, 42mm x 1 1/2″ and 54mm x 2″
Glasgow fitting advice
Make the threaded joint before the Compression joint. Dress the male thread that screws in with PTFE tape or a thread sealant to suit the service, then tighten it so the elbow ends up pointing where you need it. Overshooting and backing off to line it up is how threaded joints start to weep. Once that is set, make the Compression end onto the copper.
For the male thread version and wallplate elbows, look beside the Compression DZR Female Elbow in our Compression DZR fittings.
Order online, or come to the Plumb Parts counter at 555 South Street, Glasgow G14 0QX to collect. Times are Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.
Specification
- Material: DZR brass
- Connection: 90 degree, Compression x female thread
- Sizes: 15mm x 1/2″, 15mm x 3/4″, 22mm x 3/4″, 22mm x 1″, 28mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/2″, 54mm x 2″
- Suitable for: connecting copper at a right angle onto male threaded fittings
Common Questions
DZR female elbow on a pump valve: which size?
Check the male thread on the valve. Many domestic pump valves have 3/4″ or 1″ threads, so the 22mm x 3/4″ or 22mm x 1″ is the usual pick on 22mm pipe.
Is there a washer inside the female end?
No, the thread joint is sealed with PTFE tape or paste on the male thread that goes in. Only tap and union connectors rely on a washer.
Can I fit it on a male thread that already has old sealant?
Clean the old tape or paste off with a wire brush first. Fresh sealant on a clean thread gives the best chance of a dry joint.
| Size |
15mm x 1/2" ,15mm x 3/4" ,22mm x 3/4" ,22mm x 1" ,28mm x 1" ,35mm x 1.1/4" ,42mm x 1.1/2" ,54mm x 2" |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products

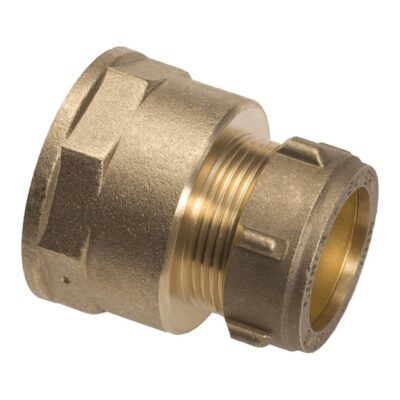

Compression DZR Female Coupler 15mm to 54mm
Price range: £2.35 through £59.02 inc VAT ( Price range: £1.96 through £49.18 ex VAT)

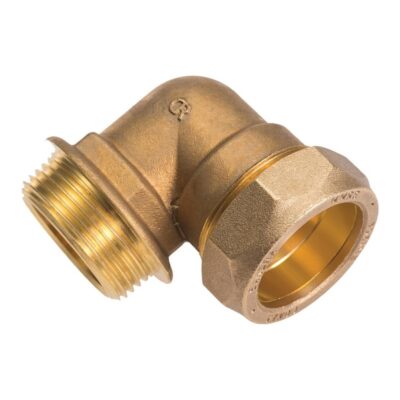

Compression DZR Male Elbow 15mm to 54mm
