Home / Compression DZR Fittings / Compression Female Tee 15mm to 28mm

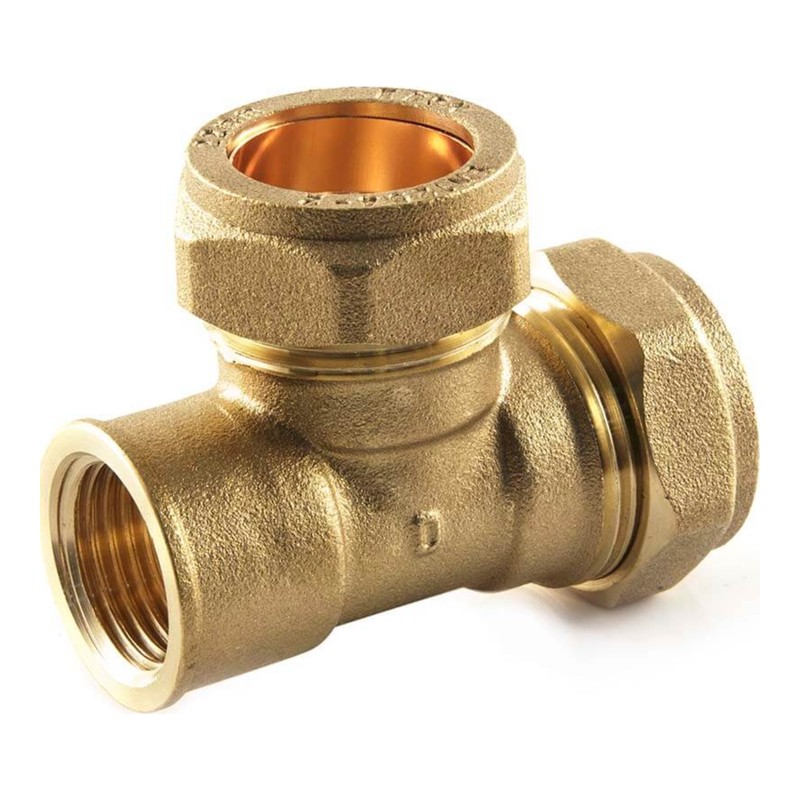

Compression Female Tee 15mm to 28mm

Price range: £6.72 through £13.02 inc VAT ( Price range: £5.60 through £10.85 ex VAT)



✓ In Stock

Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.

Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns

Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.



Brass compression female tee with two compression ends and one female thread, 15mm to 28mm. Copper pipe, or plastic pipe with a pipe insert. Free Click and Collect, no minimum order, from 555 South Street, Glasgow G14 0QX, or we can deliver.

SKUThumbnail Size PriceQuantityTotal
CPFT15D15 Compression Female Tee 15mm to 28mm - 15mm x 1/2 15mm x 1/2" x 15mm £6.72 inc VAT (£5.60 ex VAT)
-
+
£6.72 inc VAT
✓
spinner
CPFT1515D Compression Female Tee 15mm to 28mm - 15mm x 15mm x 1/2 15mm x 15mm x 1/2" £9.26 inc VAT (£7.72 ex VAT)
-
+
£9.26 inc VAT
✓
spinner
CPFT22E22 Compression Female Tee 15mm to 28mm - 22mm x 3/4 22mm x 3/4" x 22mm £9.04 inc VAT (£7.53 ex VAT)
-
+
£9.04 inc VAT
✓
spinner
CPFT2222D Compression Female Tee 15mm to 28mm - 22mm x 22mm x 1/2 22mm x 22mm x 1/2" £13.02 inc VAT (£10.85 ex VAT)
-
+
£13.02 inc VAT
✓
spinner
CPFT2222E Compression Female Tee 15mm to 28mm - 22mm x 22mm x 3/4 22mm x 22mm x 3/4" £7.48 inc VAT (£6.23 ex VAT)
-
+
£7.48 inc VAT
✓
spinner
CPFT2828D Compression Female Tee 15mm to 28mm - 28mm x 28mm x 1/2 28mm x 28mm x 1/2" £7.50 inc VAT (£6.25 ex VAT)
-
+
£7.50 inc VAT
✓
spinner
CPFT2828E Compression Female Tee 15mm to 28mm - 28mm x 28mm x 3/4 28mm x 28mm x 3/4" £9.90 inc VAT (£8.25 ex VAT)
-
+
£9.90 inc VAT
✓
spinner
Description

Compression Female Tee 15mm to 28mm

A compression female tee has two compression ends for the pipe and one female thread, so you can take a threaded connection off a pipe run.

Most sizes have the female thread on the branch. The 15mm x 1/2 inch x 15mm and 22mm x 3/4 inch x 22mm have the thread on one end of the run and the compression branch at the side.

We keep it in 7 sizes, from 15mm up to 28mm.

Each compression end is made with a nut and olive. Slide the nut and then the olive onto the pipe, push the pipe right into the fitting, then tighten the nut with a spanner. There is no solder and no flame, so it suits repairs and places where you would rather not use a blowlamp.

It goes straight onto copper pipe. On plastic pipe, put a pipe insert (stiffener) in the pipe end first: plastic pipe makers such as Polypipe say the stiffener must be used when the pipe goes into a compression fitting.

Specification

  • Material: Brass
  • Connection: Compression (nut and olive)
  • Sizes: 15mm x 1/2″ x 15mm, 15mm x 15mm x 1/2″, 22mm x 3/4″ x 22mm, 22mm x 22mm x 1/2″, 22mm x 22mm x 3/4″, 28mm x 28mm x 1/2″, 28mm x 28mm x 3/4″
  • Suitable for: Copper pipe, or plastic pipe with a pipe insert

Common Questions

Which female tee do I need for a 1/2 inch branch on 15mm pipe? The 15mm x 15mm x 1/2 inch tee, which has the female thread on the branch. There is also a 15mm x 1/2 inch x 15mm version with the thread on the run.

What sizes does the compression female tee go up to? It goes up to 28mm, with 1/2 inch and 3/4 inch female options on 22mm and 28mm.

Can I use it on plastic pipe? Yes, with a pipe insert (stiffener) pushed fully into the pipe end first. On copper pipe no insert is needed.

Plumb Parts Glasgow

Plumb Parts, 555 South Street, Glasgow G14 0QX
Tel: 0141 404 5128
Open 7 days: Mon-Fri 8am-5pm, Sat-Sun 8am-1pm

Free Click and Collect, no minimum order, or we can deliver. Returns within 14 days.

Additional information
Size15mm x 1/2″ x 15mm, 15mm x 15mm x 1/2″, 22mm x 3/4″ x 22mm, 22mm x 22mm x 1/2″, 22mm x 22mm x 3/4″, 28mm x 28mm x 1/2″, 28mm x 28mm x 3/4″
