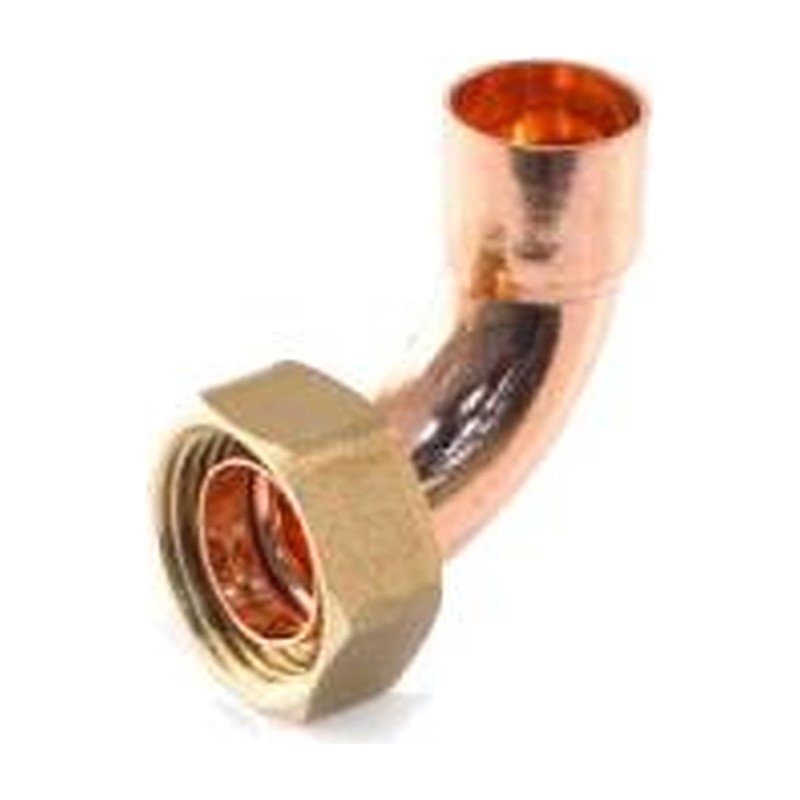

END FEED BENT CYLINDER UNION

End Feed Bent Cylinder Union used to connect Copper pipe at 90 deg to a female threaded socket.

At Plumb Parts in Glasgow, we stock a large supply of jointing solutions that meet the changing needs of people who enjoy DIY, specifiers and installers alike.

End Feed Bent Cylinder Union: Professional 90° Plumbing Solution

Product Overview The End Feed Bent Cylinder Union, available exclusively at Plumb Parts Glasgow, represents an essential professional-grade solution for connecting copper pipes to female threaded sockets at a perfect 90-degree angle. This WRAS-approved bent pipe connector combines innovative design with superior craftsmanship, making it the preferred choice for both professional plumbers and experienced DIY enthusiasts. Engineered for optimal performance in diverse plumbing applications, from domestic installations to commercial systems, this versatile threaded pipe fitting ensures reliable, leak-proof connections every time.

Key Features and Benefits

• Precision-engineered 90° angle design
• Premium-grade copper/gunmetal construction
• WRAS certification for water systems
• Comprehensive size range availability
• Space-efficient installation profile
• Superior flow characteristics
• Professional finish quality
• Maximum temperature tolerance: 110°C
• Universal system compatibility

Technical Applications Our Bent Cylinder Unions excel in:

• Domestic Plumbing: Perfect for water supply connections
• Heating Systems: Ideal for boiler and cylinder installations
• Commercial Projects: Robust performance in demanding environments
• Gas Applications: Certified for gas pipe installations
• Industrial Systems: Reliable compressed air solutions

Professional Installation Guidelines Follow these expert steps for optimal results:

1. Size Verification: Confirm exact pipe and thread dimensions
2. Surface Preparation: Ensure thorough cleaning of all components
3. Assembly Alignment: Verify proper positioning of the union
4. Heat Application: Use a controlled, even heating technique
5. Joint Completion: Allow proper cooling and testing

Frequently Asked Questions

Q: How do you install a bent cylinder union? A: Professional installation involves a thorough cleaning, correct alignment, proper flux application, even heating until solder flows, and natural cooling. Always pressure test after installation for safety assurance.

Q: What sizes do bent cylinder unions come in? A: Plumb Parts stocks all standard sizes from 15mm to 28mm pipe connections, with various thread size options including 1/2″, 3/4″, and 1″ BSP female threads to suit different applications.

Q: Are bent cylinder unions suitable for hot water? A: Yes, our unions are engineered to handle continuous temperatures up to 110°C, making them perfect for both domestic hot water and heating system installations.

Q: Can I use a bent cylinder union with gas pipes? A: Yes, when installed by a qualified gas engineer, these unions are fully certified for both natural and manufactured gas applications, meeting all current safety standards.

Q: What’s the difference between end feed and compression bent unions? A: End feed unions create permanent soldered joints through capillary action, providing superior long-term reliability compared to compression fittings which use mechanical compression for connection.

Technical Specifications

• Material: Professional-grade copper/gunmetal
• Operating Temperature: Maximum 110°C
• Thread Standard: BSP Female
• Connection Method: Capillary solder
• Certification: WRAS approved
• Installation Type: Professional/qualified DIY
• System Compatibility: Universal plumbing
• Pressure Rating: Standard plumbing systems

Quality Assurance At Plumb Parts Glasgow, each bent cylinder union undergoes rigorous quality control, ensuring compliance with current building regulations and plumbing standards. Our WRAS certification guarantees safety for potable water applications.
