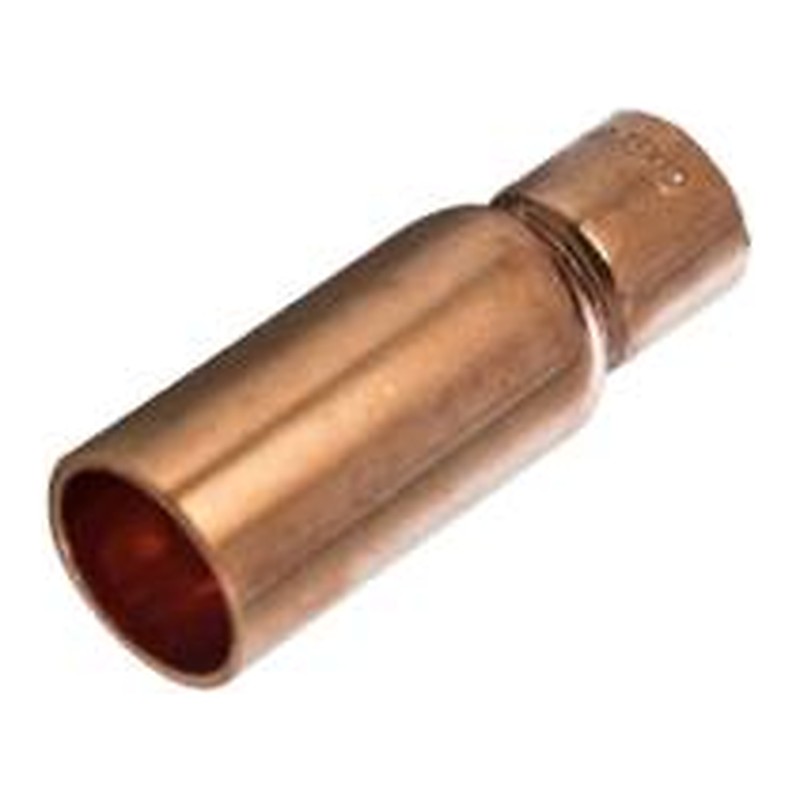

End Feed Long Tail Fitting Reducer 15mm

For dropping a 15mm fitting down to microbore, the End Feed Long Tail Fitting Reducer has a longer spigot than the standard reducer. The spigot pushes into a 15mm socket, and the small end takes 8mm or 10mm pipe.

Why choose the End Feed Long Tail Fitting Reducer

The longer tail gives more room between the two joints. So you can solder one without melting the other, and it is easier to get a flame on it in a tight spot, for example at a radiator valve or a manifold. It can also go straight into a tee, so you save a short piece of 15mm pipe.

Clean and flux the tail and the 15mm socket it goes into, and the microbore pipe end. Heat each joint and feed in solder wire. Take care with small bore pipe, because it heats fast and can burn through if the flame stays too long.

• Sizes: 15mm x 8mm and 15mm x 10mm
• Long spigot for the 15mm end
• Socket for 8mm or 10mm microbore
• End Feed, soldered with wire

Other reducers are in our End Feed fittings range.

Microbore parts in Glasgow

Plumb Parts, 555 South Street, Glasgow G14 0QX. The doors are open Mon to Fri 8am to 5pm, Sat and Sun 8am to 1pm, and online ordering is also available.

Specification

• Material: copper
• Connection: long End Feed spigot x socket
• Sizes: 15mm x 8mm, 15mm x 10mm
• Suitable for: dropping 15mm fittings down to 8mm or 10mm microbore

Common Questions

Long tail reducer: why the longer spigot?

It puts more distance between the two joints, so you can solder one without remelting the other, and it is easier to reach in tight spots.

How do I avoid burning through microbore?

Small pipe heats very fast. Keep the flame moving and aimed at the fitting body, and take it away as soon as the solder runs.

Can the spigot go straight into a tee?

Yes, the spigot fits a 15mm socket, so it can go straight into a tee or valve with no short piece of pipe.
