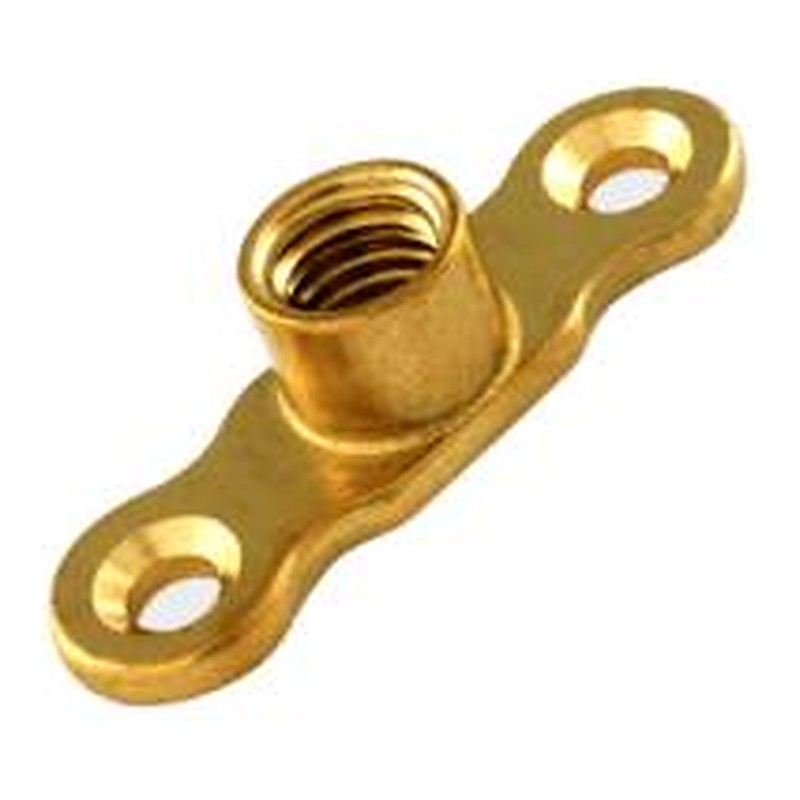

Female Brass Back Plate M10

The female brass back plate M10 has a threaded socket in the middle, so M10 rod or a male stud screws into it. It forms the wall end of a brass munsen ring support.

What the female brass back plate M10 is for

Use it to fix brass munsen rings to a wall, ceiling or timber. For pipe close to the wall, screw a short M10 stud into the plate and run the ring on. To hang pipe lower, use a longer length of M10 threaded rod. Brass keeps the finish consistent with brass rings, and it will not rust on hot or damp runs.

• Brass back plate
• Female M10 thread in the centre
• Takes M10 threaded rod or a stud
• Screws to walls, ceilings and timber

Check whether your ring has a male or female boss before buying, because that decides whether you need a female plate with a stud, or a male plate. If you get it wrong, the parts will not join without an adaptor. Screw the plate down firmly with fixings suited to the surface. On tiles, drill slowly with a tile bit so you do not crack the glaze. Set all plates on a straight line so the pipe sits square. Male plates and rings are listed under munsen rings.

Back plates at our Glasgow shop

Pick it up at Plumb Parts, 555 South Street, Glasgow G14 0QX. The doors open Mon-Fri 8am-5pm, then Sat-Sun 8am-1pm at weekends. You can order online as well.

Specification

• Material: Brass
• Connection: Female M10 thread in the centre
• Sizes: M10
• Suitable for: Fixing brass munsen rings by rod or stud

Common Questions

What is a back plate for? This brass back plate fixes a Munsen ring or a rod fitting to a wall or ceiling. It has a female M10 thread in the middle.

How do you put on a back plate? Screw the plate to the surface with fixings that suit what you’re fixing into. Then screw your M10 rod or Munsen ring into the threaded centre.

What thread does it take? M10, which matches our Munsen rings and M10 threaded rod.

What’s the difference between the male and female back plates? The female plate has an M10 threaded hole for a rod or male fitting to screw into. The male version has the thread on the outside instead.

What can I use with it? It pairs with our brass Munsen rings and M10 threaded rod for supporting pipework.
