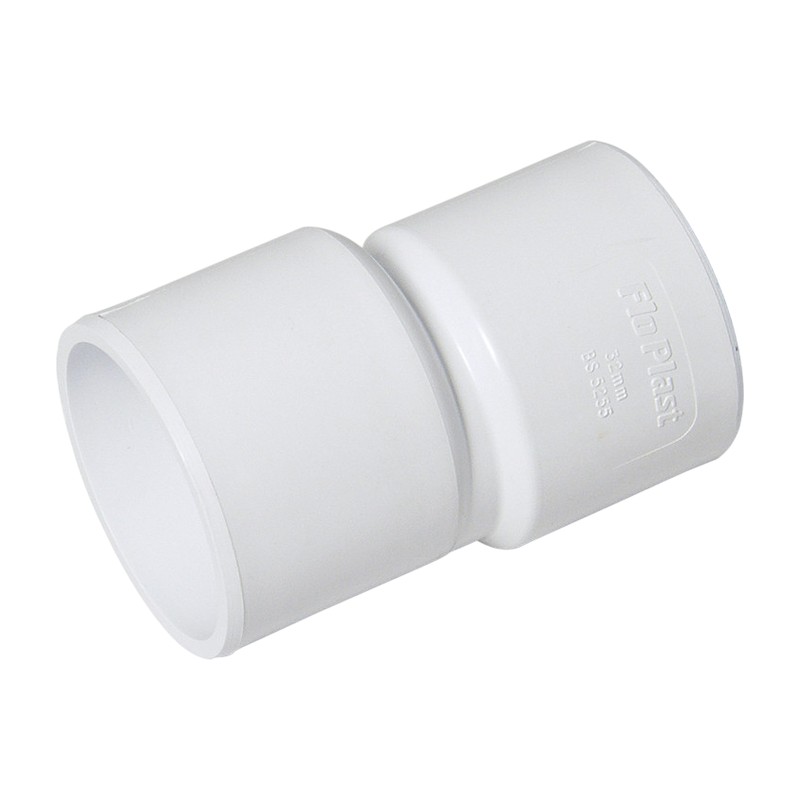

FloPlast ABS Solvent Waste Level Invert Reducer – WS50 40mm

Changing a waste from 40mm to 32mm without leaving a step for water to sit in is what the FloPlast ABS Solvent Waste Level Invert Reducer WS50 is for. It keeps the bottom of the pipe, the invert, in a straight line through the size change.

Why the FloPlast ABS Solvent Waste Level Invert Reducer WS50 drains better

A standard reducer steps down around the centre line, which leaves a small lip at the bottom. Water and debris can sit behind it. With a level invert, the bottom of the bore runs through flat, so the waste empties fully. Use it where a 32mm basin waste meets a 40mm run, or where a run changes size along its length.

Make sure the flat side faces down when you glue it. Mark it during the dry fit, since you cannot turn it once the cement takes. Clean, deburr and dry the pipe ends, then cement both surfaces.

Getting a level invert reducer in Glasgow

Fittings in both sizes sit in the Flexible range, ready to order. Or collect from Plumb Parts at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.

Specification

• Brand: FloPlast
• Range: ABS Solvent Weld Waste
• Maker code: WS50
• Material: ABS (acrylonitrile butadiene styrene)
• Connection: Solvent sockets, flat bottom through the reduction
• Sizes: 40mm x 32mm
• Standard or approval: BS EN 1455-1, Kitemark KM 548614
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Joining a 32mm basin waste to a 40mm run without a lip at the invert

Common Questions

What does level invert mean?

The invert is the inside bottom of the pipe. A level invert reducer keeps that line flat through the size change, so water does not sit behind a step.

Which way up does it go?

The flat side goes at the bottom. Mark it during the dry fit, because you cannot turn it once the cement has gripped.

Is a level invert reducer worth it over a standard one?

On a gently falling waste, yes. The flat bottom lets the pipe drain fully, so less debris settles at the change in size.

Datasheets

• FloPlast Soil & Waste Systems Brochure (PDF)
