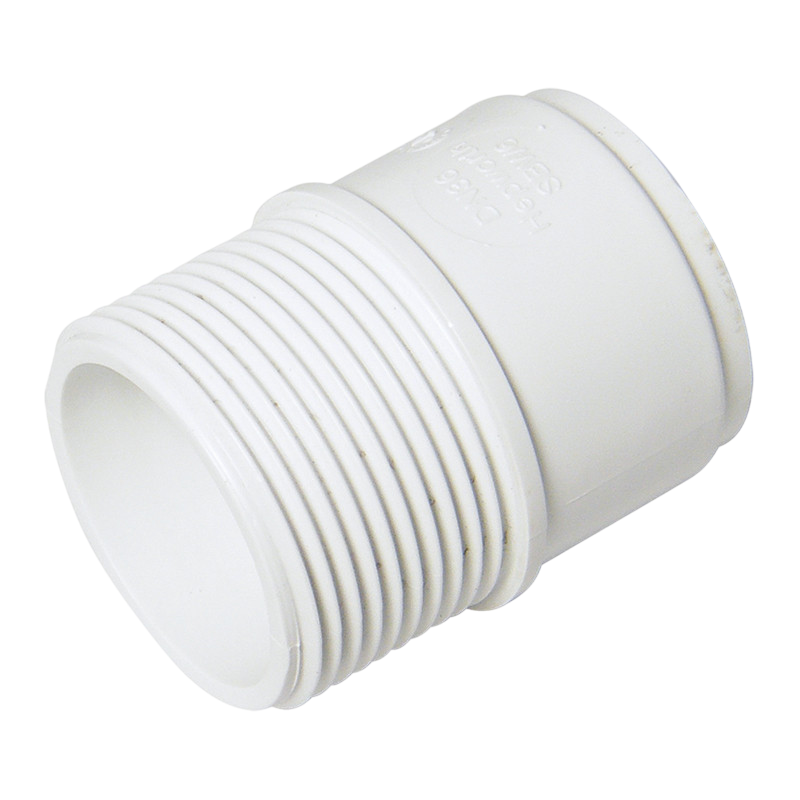

FloPlast ABS Solvent Waste Male Adaptor 32mm to 40mm

Solvent Weld waste pipe meets a female threaded fitting through the FloPlast ABS Solvent Waste Male Adaptor. The pipe glues into its socket, while the male thread screws into the part you are joining to.

When you need a FloPlast ABS solvent waste male adaptor

Plastic waste does not always end in another solvent socket. A tank connector, a threaded boss or some traps take a male thread, so this adaptor bridges the gap. It saves fiddling with mixed systems, as the solvent side matches FloPlast ABS waste pipe. The white finish blends in with the rest of the run.

• Sizes: 32mm and 40mm
• White ABS
• Solvent Weld socket to male thread
• Typical use: waste pipe to tank connectors and threaded outlets

Cut the waste pipe square and take off any burr. Clean the pipe and socket, then use a solvent cement made for ABS and push the pipe fully home. Give the joint time to set before you put any strain on it. Wrap the male thread with PTFE tape if the fitting it goes into needs it, and tighten by hand first. A plastic thread does not like a big spanner. Other solvent waste fittings are in the Solvent Weld fittings range.

Glasgow collection for waste fittings

Call in to Plumb Parts, 555 South Street, Glasgow G14 0QX. Counter hours: Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. You can also order online.

Specification

• Brand: FloPlast
• Range: ABS Solvent Weld Waste
• Maker code: WS63 (32mm White), WS64 (40mm White)
• Material: ABS in white
• Connection: Solvent Weld socket x male thread
• Sizes: 32mm and 40mm
• Standard or approval: BS EN 1455-1 (FloPlast ABS Solvent Weld waste range)
• Suitable for: Taking a Solvent Weld waste into a female threaded fitting
• Max temperature: Continuous discharge up to 70°C to 75°C

Common Questions

Male adaptor or tank connector: which do I need?

A male adaptor screws into a female threaded fitting. A tank connector goes through a hole in a tank or cistern wall and is clamped with a backnut and washers.

How tight should a plastic thread be?

Hand tight plus a small turn is usually enough. Plastic threads crack if forced, and an overtightened fitting can leak just as much as a loose one.

Will it fit a 1 1/4 or 1 1/2 inch thread?

Waste threads are made in matching sizes to the pipe, but check the fitting you are joining to before buying. If unsure, bring the part into the shop and match it up.

Datasheets

• FloPlast Soil & Waste Systems Brochure (PDF)
