FloPlast Ring Seal 112.5 Deg Branch – SP200 110mm

£23.40 inc VAT (£19.50 ex VAT)



✓ In Stock

Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.

Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns

Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.



A gentler soil branch: the FloPlast Ring Seal 112.5 Deg Branch SP200 joins a pipe into a 110mm stack at a swept angle. Black, grey or white with Ring Seal joints, from Plumb Parts in Glasgow.

SKUThumbnail Size Colour PriceQuantityTotal
SP200 FloPlast Ring Seal 112.5 Deg Branch – SP200 110mm - 110mm - Black 110mm Black £23.40 inc VAT (£19.50 ex VAT)
-
+
£23.40 inc VAT
✓
spinner
SP200 FloPlast Ring Seal 112.5 Deg Branch – SP200 110mm - 110mm - Grey 110mm Grey £23.40 inc VAT (£19.50 ex VAT)
-
+
£23.40 inc VAT
✓
spinner
SP200 FloPlast Ring Seal 112.5 Deg Branch – SP200 110mm - 110mm - White 110mm White £23.40 inc VAT (£19.50 ex VAT)
-
+
£23.40 inc VAT
✓
spinner
Description

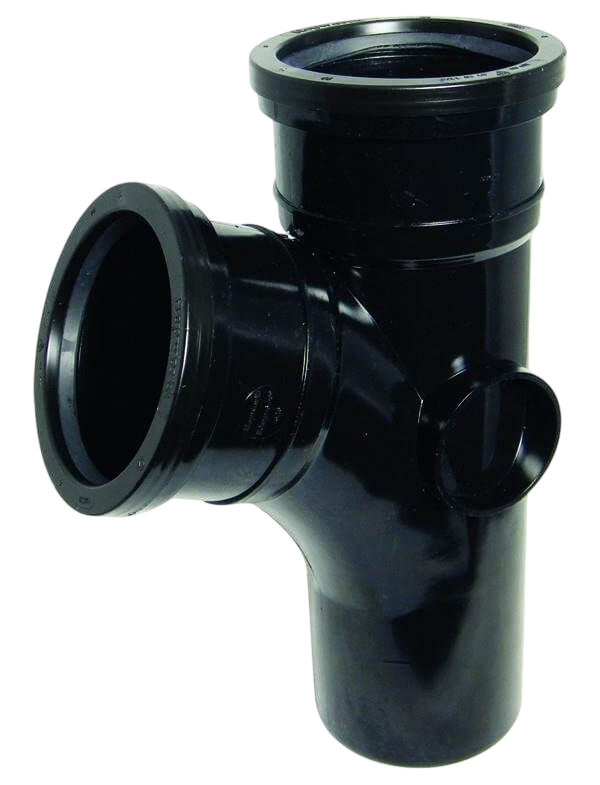

Where a pipe needs to join a stack at a gentle sweep, the FloPlast Ring Seal 112.5 Deg Branch SP200 is a 110mm soil branch with its inlet set at a swept angle. That brings a pipe into the stack more gently than a standard square branch, which helps when the incoming run falls steeply.

Where the FloPlast Ring Seal 112.5 Deg Branch SP200 fits

You fit it in a 110mm soil stack or run where a WC connection or another soil pipe needs to join. It belongs to FloPlast’s Ring Seal soil range, so the joints push together with a rubber Ring Seal rather than glue.

Chamfer every cut pipe end so it does not dislodge the seal. Apply silicone lubricant and push the pipe fully into the socket, then pull back slightly to allow for expansion. Turn the branch to face the incoming pipe before fixing the stack.

Clip the stack firmly close to the branch, because it takes the load of the WC connection.

Plan access for rodding nearby, such as an access pipe or access bend, so any blockage can be reached.

Soil branches from our Glasgow counter

Clips, bends and pipe are in the Flexible range. Order on the website, or come and collect it from the Plumb Parts counter at 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm or Sat-Sun 8am-1pm.

Specification

  • Brand: FloPlast
  • Range: 110mm Ring Seal Soil
  • Maker code: SP200
  • Material: PVC-U
  • Connection: Ring Seal sockets with a 112.5 degree branch
  • Sizes: 110mm
  • Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
  • Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
  • Suitable for: Joining a steeply falling soil pipe into the stack at a gentle sweep

Common Questions

When is the SP200 used rather than the usual 92.5 degree branch?

When the incoming soil pipe falls steeply or has to meet the stack at a sweep. The 112.5 degree inlet brings that flow in more gently.

Why chamfer a soil pipe before pushing it into the SP200?

A square cut edge can catch the rubber and push it out of its groove. A file or rasp chamfer lets the pipe slide past the seal cleanly.

Can I swivel the branch after the stack is up?

Ring Seal joints let it turn until the clips are tightened. Line it up with the incoming pipe first, then clip the stack close above and below.
