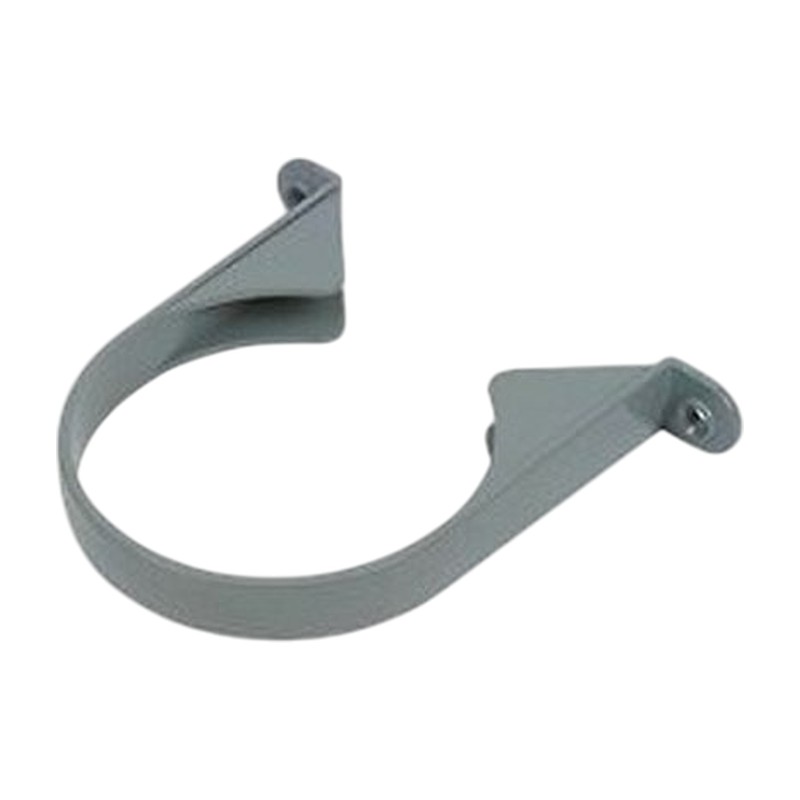

FloPlast Ring Seal Pipe Clip – SP82 110mm

Proper support matters on any stack, and the FloPlast Ring Seal Pipe Clip SP82 holds 110mm soil pipe to the wall. Black, white and grey versions suit the matching pipe.

Fitting the FloPlast Ring Seal Pipe Clip SP82

Ring Seal joints allow movement, so the clips are what keep the stack upright and in line. Put one close to each socket, so the joints sit where they should, and space the rest evenly up the stack.

Use fixings to suit the wall. On old sandstone, drill into solid stone rather than mortar joints, and choose plugs that grip well.

Check the stack with a level as you go. A stack that leans out of true looks bad and puts strain on the joints.

Fit clips before the stack is loaded with branches, so the weight is supported as you build. On a tall outside stack, a clip near the top stops the vent end swaying in the wind. Paint or render work round the clips is easier before the pipe goes up.

Buying soil clips in Glasgow

Soil pipe and fittings are in the Flexible range, so you can buy clips and stack in one order. Plumb Parts, 555 South Street, Glasgow G14 0QX, is open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, or shop online.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP82
• Material: PVC-U
• Connection: Pipe clip fixed to the wall
• Sizes: 110mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Holding 110mm soil pipe upright and in line

Common Questions

How far apart should soil pipe clips be? FloPlast’s advice for 110mm soil is no more than 1.8m between clips going up a stack and no more than 1.0m on a level run. Each socket should be anchored as well.

What are pipe clips for on a soil stack? They hold the plain lengths of pipe between the joints and keep the stack straight on the wall. Socket clips do the anchoring at the joints themselves.

How do these pipe clips work? The SP82 screws to the wall and wraps round the 110mm pipe. Don’t clamp it so tight that the pipe can’t move a little at the ring seal joints, as it needs to as it warms and cools.

What size screws should I use for pipe clips? Pick fixings to suit your wall rather than one set size. A full soil stack is heavy, so make sure they hold well.

Will the SP82 fit solvent weld soil pipe? No, it’s for ring seal soil. FloPlast make the SS82 for their solvent soil stacks.

What colours does the SP82 come in? It’s made in black, white, grey and anthracite grey, so you can match it to the stack.

Datasheets

• FloPlast Soil & Waste Systems Brochure (PDF)
