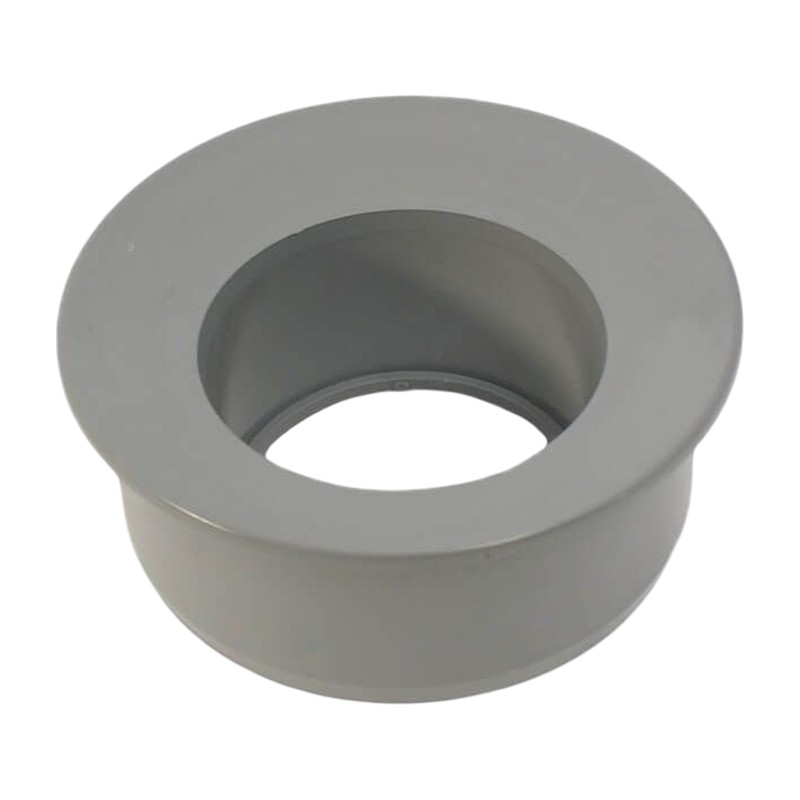

FloPlast Ring Seal Waste Reducer – SP95 110mm

Bringing a waste into a soil socket, the FloPlast Ring Seal Waste Reducer SP95 lets you go from a 110mm soil socket down to a waste connection. The size sold here is 110mm x 50mm.

Using the FloPlast Ring Seal Waste Reducer SP95

It is a handy way to bring a sink, bath or utility waste into the end of a soil run or a spare 110mm socket. The 110mm end pushes into a Ring Seal socket, and the smaller end takes the waste connection.

Grease the large end with silicone and press it into the socket until it stops. Make up the waste connection on the smaller end as the fitting allows.

Keep the waste falling towards the soil pipe, and clip it close so its weight does not lever on the reducer.

Check the joint with the appliance running before covering it up. If the soil socket is at floor level, protect the waste from knocks.

Waste reducers in Glasgow

For boss adaptors and other soil fittings, see the Flexible range. Plumb Parts at 555 South Street, Glasgow G14 0QX keeps counter hours of Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and sells online.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP95
• Material: PVC-U
• Connection: 110mm Ring Seal spigot; small end takes a boss adaptor
• Sizes: 110mm x 50mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Bringing a waste into a spare 110mm soil socket

Common Questions

How does the waste connect to the SP95?

FloPlast’s brochure says to use boss adaptors in it. Choose a rubber Push-Fit or solvent boss adaptor to suit your waste.

Can it go at the end of a soil run?

Yes, it pushes into a spare 110mm socket at the end of a run or on a fitting. Lubricate the large end and push it home.

Does the waste need clipping near it?

Yes. Clip it close so its weight does not lever on the reducer.

Datasheets

• FloPlast Soil & Waste Systems Brochure (PDF)
