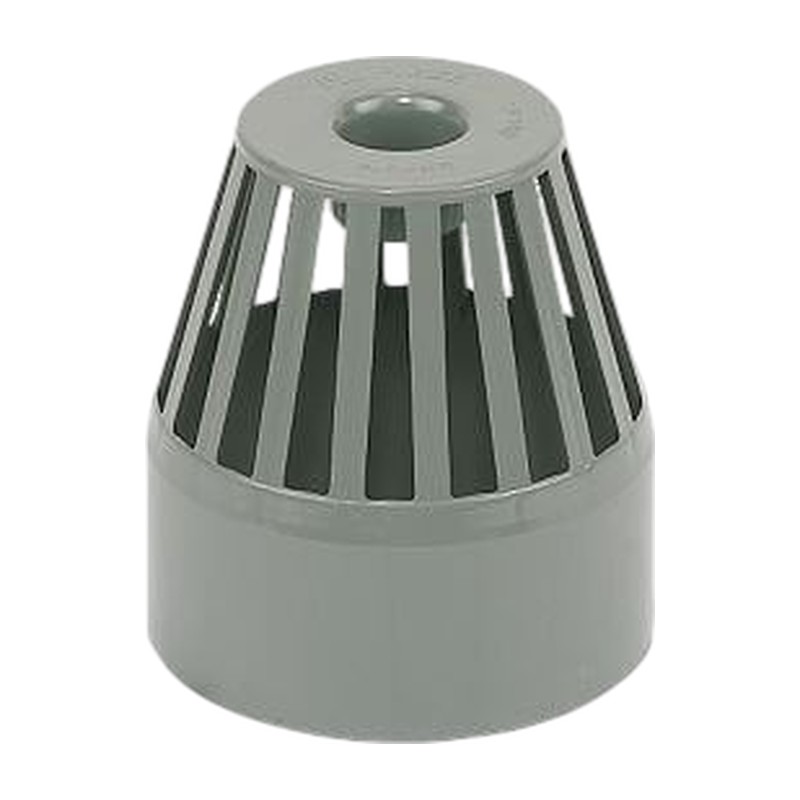

FloPlast Seal Ring Vent Terminal – SP302 110mm

Topping out a Ring Seal stack, the FloPlast Seal Ring Vent Terminal SP302 sits on the open top of a 110mm soil vent pipe. It lets the stack breathe while stopping birds and debris from getting in.

Why fit the FloPlast Seal Ring Vent Terminal SP302

A soil stack that vents through the roof or above the eaves needs a terminal on top. Without one, nesting material or leaves eventually end up down the stack, and that is an unpleasant blockage to clear. This one pushes on with a Ring Seal.

Cut the pipe square and chamfer it so it slides into the seal cleanly. Silicone lubricant helps it go on.

Check the height of the vent above the roof and its distance from windows, because the building regulations set limits.

On an exposed roof where rain down the stack is a worry, a hooded cowl may suit better. Fit the terminal last, after the weathering slate and collar, so nothing needs to be taken off again.

Vent terminals from Glasgow

Weathering slates and collars to finish the roof are in the Flexible range. Plumb Parts is at 555 South Street, Glasgow G14 0QX, so call in for the SP302 Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or order online.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP302
• Material: PVC-U
• Connection: Ring Seal push-on joint
• Sizes: 110mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Guarding the open top of a 110mm soil vent

Common Questions

What does a soil vent terminal do? It caps the open top of the soil vent pipe so air can still move freely, while birds, squirrels and leaves are kept out. Without one, nesting material can end up blocking the stack.

Why does a soil pipe need a vent? Venting lets air into the stack as waste runs down, which stops traps being sucked dry, and lets foul air escape well away from windows.

How do I fit the SP302? Cut the pipe end square, chamfer it and wipe on a little silicone lubricant, then push the terminal on so the seal doesn’t roll. There’s no solvent needed.

Do I need a soil vent pipe through the roof? Many houses can use air admittance valves on some stacks, but a building normally still needs at least one open vent. Check the Building Regulations for your job.

Will rain get into the stack? A little can, since it’s an open cage, and that does no harm. If you’d rather keep the weather out, FloPlast’s SP310 extract cowl has a hood.

What do I need for a pitched roof? You’ll need a weathering slate where the pipe comes through, and FloPlast’s SP320 suits this 110mm size.

What colours does it come in, and is there a solvent version? FloPlast make the SP302 in black, white, grey and anthracite grey. For a solvent soil stack, their SS302 is the matching terminal.
