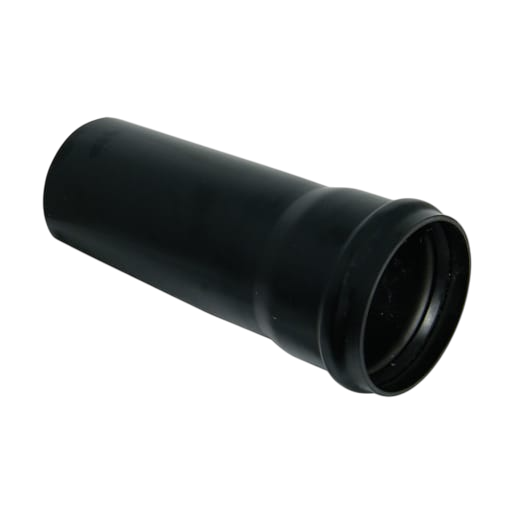

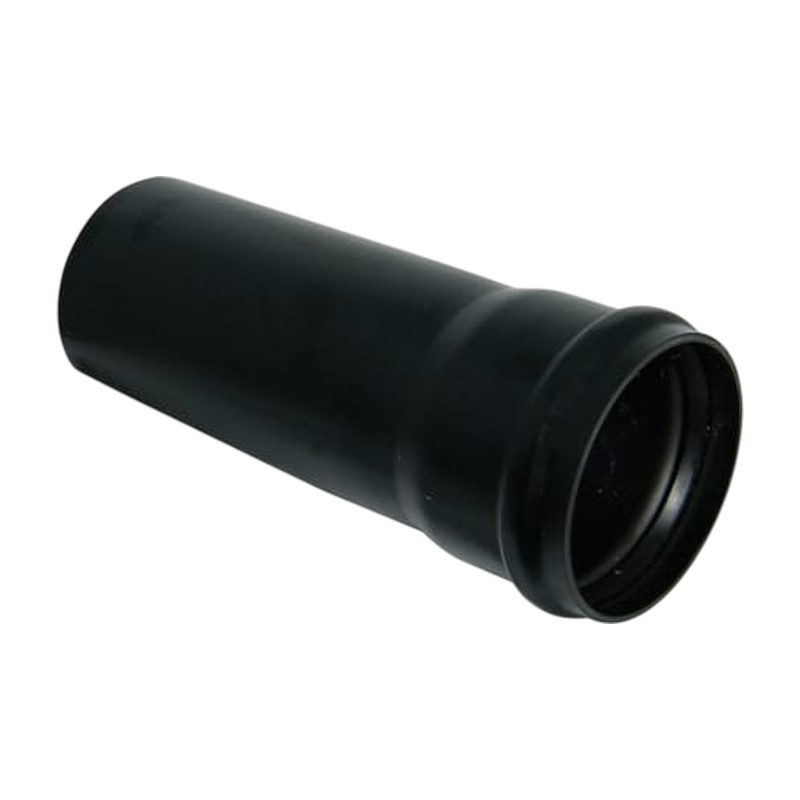

FloPlast Single Socket Soil Pipe 110mm

FloPlast Single Socket Soil Pipe 110mm is soil pipe made with a Ring Seal socket at its top and a plain end at its foot. It comes in 1m, 2m and 3m lengths.

Building a stack with FloPlast Single Socket Soil Pipe 110mm

This is the pipe for soil stacks and WC branches, inside or outside the building. The socket end takes the next pipe or fitting with a Push-Fit seal, so you can build a stack length by length without solvent.

Start at the bottom and work up. Cut ends need chamfering before they go into a seal, and silicone lubricant makes the joint far easier. Pull each spigot back slightly in its socket to leave room for expansion.

Clip the pipe at each socket and at regular spacing between. Build in access points for testing and rodding later.

Pick the length that cuts down on waste: a 3m length suits a tall stack, while shorter lengths handle branches.

Soil pipe at our Glasgow counter

Couplers, offsets and boss adaptors for 110mm stacks are in the Flexible range. Soil pipe lengths can be collected at Plumb Parts, 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and online too.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP8 (1m), SP3 (3m)
• Material: PVC-U
• Connection: Ring Seal socket one end, plain spigot the other
• Sizes: 1m, 2m and 3m lengths
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Soil stacks and WC branches

Common Questions

Which length of soil pipe should I buy?

A 3m length suits a tall stack, while 1m and 2m pieces are handy for branches and short runs. Pick the one that leaves the least waste.

Does a stack through a floor between flats need a fire collar?

FloPlast say fire collars are needed where a pipe passes through a wall or floor into a neighbouring property. The collar seals the gap if there is a fire.

How should the pipe be clipped?

Clip at each socket and space the rest evenly. FloPlast’s figures are up to 1.8 metres apart on a vertical stack and about a metre on horizontal runs.
