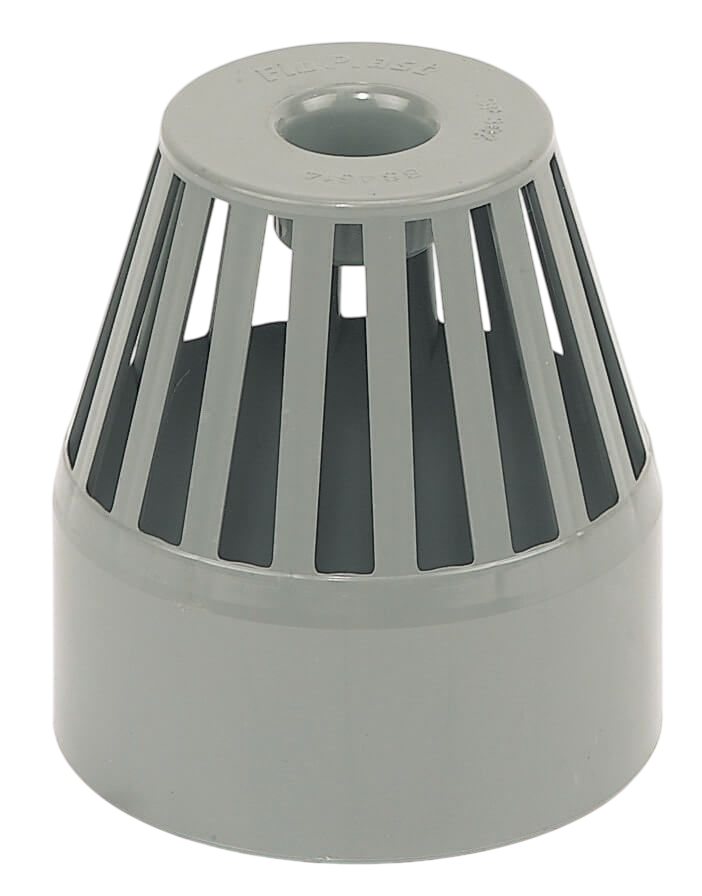

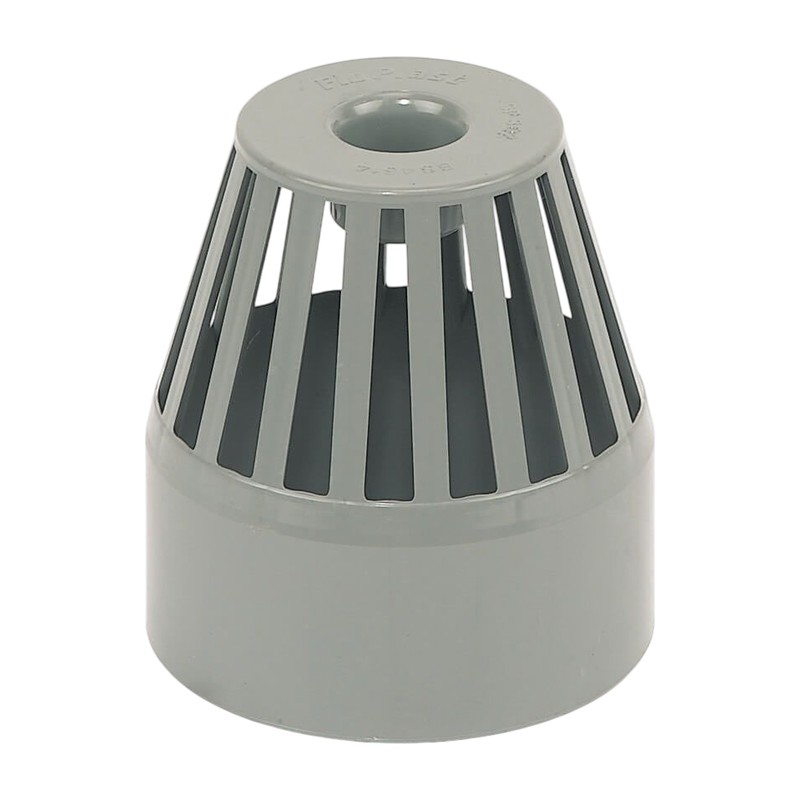

FloPlast Solvent Soil Vent Terminal – SS302 110mm

On a glued stack, the FloPlast Solvent Soil Vent Terminal SS302 goes on the open end of the 110mm vent pipe. It keeps birds and debris out while air moves freely.

Fitting the FloPlast Solvent Soil Vent Terminal SS302

Most houses with a soil stack have the vent rising above the eaves or through the roof. This is the terminal for the solvent soil system, so it is glued on and stays put once fitted.

Cut the pipe square, clean it and apply solvent cement to both surfaces. Push the terminal on and hold it straight while it grabs.

Check the vent height and distance from windows against the building regulations before you finish.

Where the pipe passes through a roof, fit the weathering slate and collar before the terminal. Once glued, the terminal cannot easily come off, so make sure everything below is finished first. A terminal that is level and square looks far better from the street.

Vent terminals in Glasgow

Weathering slates and soil pipe are listed in the Flexible range. Plumb Parts, 555 South Street, Glasgow G14 0QX has counter hours of Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and an online shop.

Specification

• Brand: FloPlast
• Range: 110mm Solvent Soil
• Maker code: SS302
• Material: PVC-U
• Connection: Solvent Weld joint
• Sizes: 110mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: Guarding the top of a glued 110mm vent pipe

Common Questions

Can the SS302 be removed later?

Not easily once glued. Finish everything below first.

What rules apply to vent height?

The building regulations control how far the vent rises above the roof and how close it sits to windows. Check them before gluing the SS302 on.

What goes on before the terminal?

On a roof penetration, the slate and collar go on first. The terminal is the final piece.

Datasheets

• FloPlast Soil & Waste Systems Brochure (PDF)
