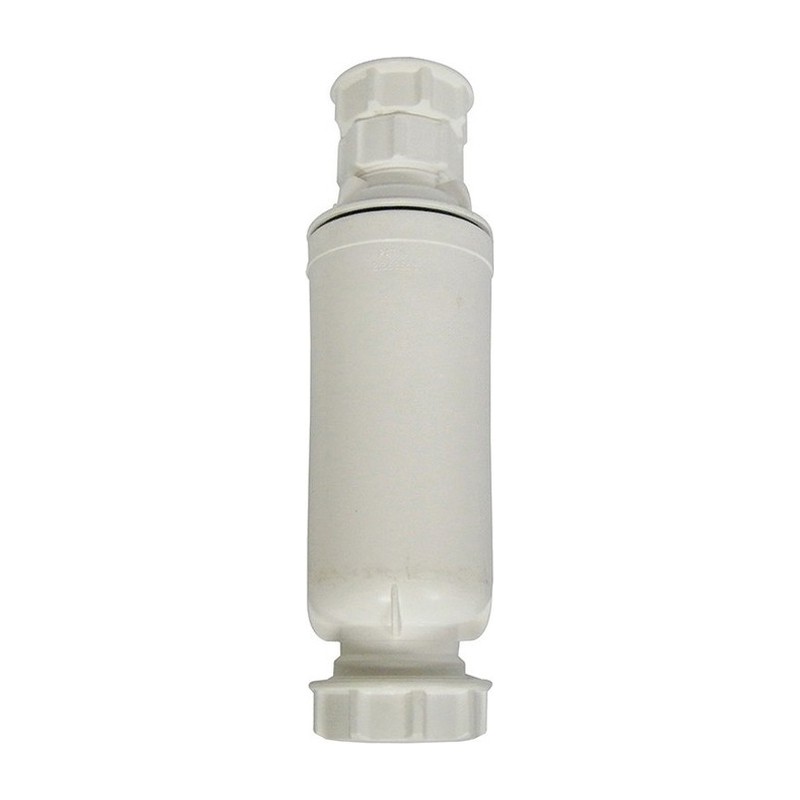

FloPlast Telescopic Pedestal Trap 32mm to 40mm

A FloPlast Telescopic Pedestal Trap is shaped to hide inside the pedestal of a bathroom basin. The telescopic leg slides to bridge the gap between the basin waste and the outlet pipe, so the trap stays tucked out of sight behind the pedestal.

Fitting a pedestal trap in a bathroom

Pedestal basins leave very little room for a standard bottle trap, and the outlet usually has to come out low through the wall behind. A pedestal trap is built for that shape of space. It is common on full bathroom refits, and on cloakroom suites where the pedestal hides all the pipework. The sliding section also helps when a new basin sits at a different height from the old one.

Most basins take 32mm waste, but if the run out of the room is 40mm, the 40mm trap avoids an extra reducer.

Fitting order

Fit the basin waste and the trap before the basin goes onto the pedestal for good, because space gets very tight afterwards. Make the outlet joint to the wall pipe first, then extend the telescopic leg to the waste and tighten the top nut by hand. Set the pedestal in place, check that nothing is pressing on the trap, and fill the basin to test. A torch and a mirror help you look for drips behind the pedestal.

Other patterns sit beside the FloPlast TELESCOPIC Pedestal Trap in our FloPlast traps list.

Call in to Plumb Parts at 555 South Street, Glasgow G14 0QX while the counter is open, Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or buy online for collection.

Specification

• Brand: FloPlast
• Range: Waste Traps
• Maker code: TD372T (32x32mm), TD374T (32x40mm)
• Material: White polypropylene
• Connection: 32mm basin waste inlet, 32mm or 40mm Compression outlet
• Sizes: 32mm and 40mm outlet, 76mm water seal
• Standard or approval: BS EN 274-1
• Suitable for: Pedestal basins

Common Questions

Why use a pedestal trap instead of a bottle trap?

It is shaped to sit inside the pedestal with the outlet low at the back, so it stays hidden. A bottle trap often sits too far forward.

What does 32x40mm mean on the TD374T?

The inlet is the 32mm basin size and the outlet is 40mm, so it can go straight into a 40mm waste without a reducer.

Can I fit it with the basin already on the pedestal?

It is hard work. Fit the trap and waste first, then set the pedestal, as there is very little room afterwards.
