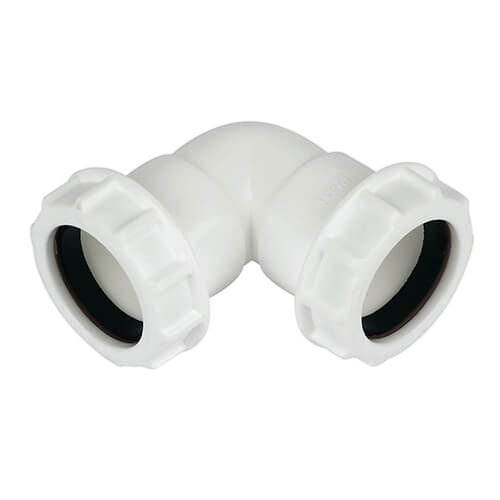

FloPlast White Compression 90° Elbow – WC11 40mm

Forty mil wastes take their corners with the FloPlast White Compression 90° Elbow WC11, a white right-angle bend with Compression joints at each end.

Jobs for the FloPlast White Compression 90° Elbow WC11

Sinks, baths, showers and appliances run in 40mm. This elbow takes the waste round a corner, through a wall and down outside, or up behind a unit to a trap.

Square off and deburr the pipe ends. Slip on the nut and seal, push the pipe in to the stop, then hand tighten and add a small turn.

Compression joints can come apart later, handy if the kitchen is refitted.

Clip close to the bend, and keep the horizontal run falling towards the outlet. Check the nuts once hot water has run through. Where a washing machine empties into the run, clip the pipe firmly, as pump-out surges shake loose pipework. Compression fittings also suit joining onto old waste of unknown make, which is common on kitchen refits.

Specification

• Brand: FloPlast
• Range: Compression Waste (white)
• Maker code: WC11
• Material: Polypropylene
• Connection: Compression joint at each end, sealed by nut and ring
• Sizes: 40mm
• Standard or approval: FloPlast list BS EN 1451-1
• Suitable for: Kitchen, bath, shower and appliance wastes
• Max temperature: Continuous discharge up to 70°C to 75°C

Common Questions

Will the WC11 fit 1 1/2 inch waste pipe?

40mm is the metric size that replaced 1 1/2 inch, and FloPlast list them together. Check the outside of the old pipe; it should measure close to 40mm.

What clip spacing is needed on 40mm waste?

FloPlast give 0.5m between clips on level 40mm runs and 1.2m on upright runs. Put one close to each side of the elbow too.

Can hot water from a washing machine damage it?

FloPlast make these fittings in polypropylene for normal domestic waste, including washing machine and dishwasher discharge. Just clip it well, as the pump-out can shake the pipe.

Elbows from our Glasgow counter

The Flexible range lists other 40mm Compression fittings. Plumb Parts is at 555 South Street, Glasgow G14 0QX, with the counter open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and it sells online.

Datasheets

• FloPlast Unicom Compression Waste Leaflet (PDF)
