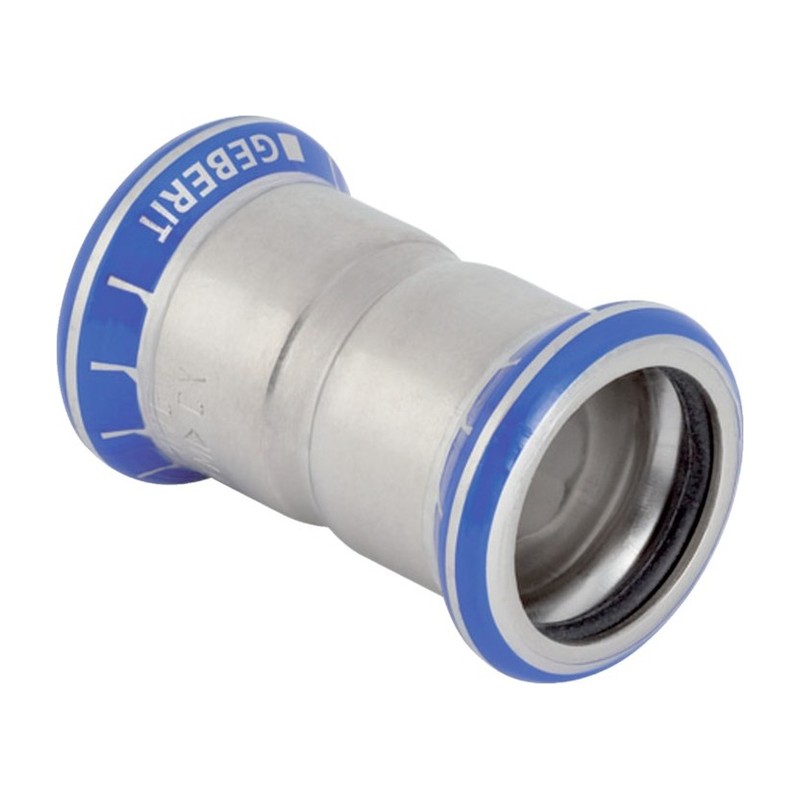

Geberit Mapress Stainless Steel Coupling 15mm to 108mm

The Geberit Mapress 316 Stainless Steel Coupling joins two lengths of Mapress stainless pipe in a straight line. We list it in 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm (listed as 76mm), 88.9mm (listed as 89mm) and 108mm. The Geberit Mapress 22mm coupling is one of the most used sizes on commercial water and heating jobs. It suits installers working on schools, offices, plant rooms and anywhere stainless press pipe is specified.

Each end is a press socket with a black seal ring already inside. Cut the pipe square, deburr it, mark the insertion depth, push it in to the mark and press with the right tool and jaw. Geberit design the fitting so an unpressed joint leaks under test, and there is a pressing indicator, so a missed joint shows up before handover. Couplings are what you buy most of, as every long run needs joining and every repair needs a pair.

We stock genuine Geberit Mapress, not a lookalike. Pick it up from our Glasgow shop or order online.

Specification

• Brand: Geberit
• Range: Geberit Mapress 316 Stainless Steel
• Maker code: 32002 (15mm), 32004 (22mm), 32005 (28mm), 32006 (35mm), 32007 (42mm), 32008 (54mm), 32011 (108mm)
• Material: CrNiMo 316 stainless steel 1.4401
• Connection: Press fit, M contour, with pressing indicator
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm, 88.9mm, 108mm
• Max pressure: 16 bar (drinking water, heating and cooling)
• Max temperature: 100°C on drinking water; up to 120°C with antifreeze
• Suitable for: Hot and cold drinking water, heating and cooling water, rainwater, sprinkler water, compressed air

Common Questions

What sizes does Geberit Mapress 316 Stainless Steel come in?

Geberit make it from 15mm up to 108mm. That covers 15, 22, 28, 35, 42 and 54mm, then 76.1, 88.9 and 108mm for large bore work.

What press jaws does Mapress need?

Mapress uses an M contour, so you need jaws made for that profile in the right size. Check your press tool maker’s list before you start.

What happens if I miss pressing a joint?

Geberit make the fitting so it leaks when it has not been pressed, and there is a pressing indicator on it. Pressure test before anything is boxed in and a missed joint will show.

Can this coupling be used on gas?

No, this is the water version. Geberit make a separate Mapress 316 Stainless Steel gas range for gas work.

Datasheets

• Geberit Mapress 316 Stainless Steel Application Overview (Liquid Media) (PDF)
