Geberit Mapress Stainless Steel End Cap 15mm to 108mm
Price range: £12.88 through £144.61 inc VAT ( Price range: £10.73 through £120.51 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

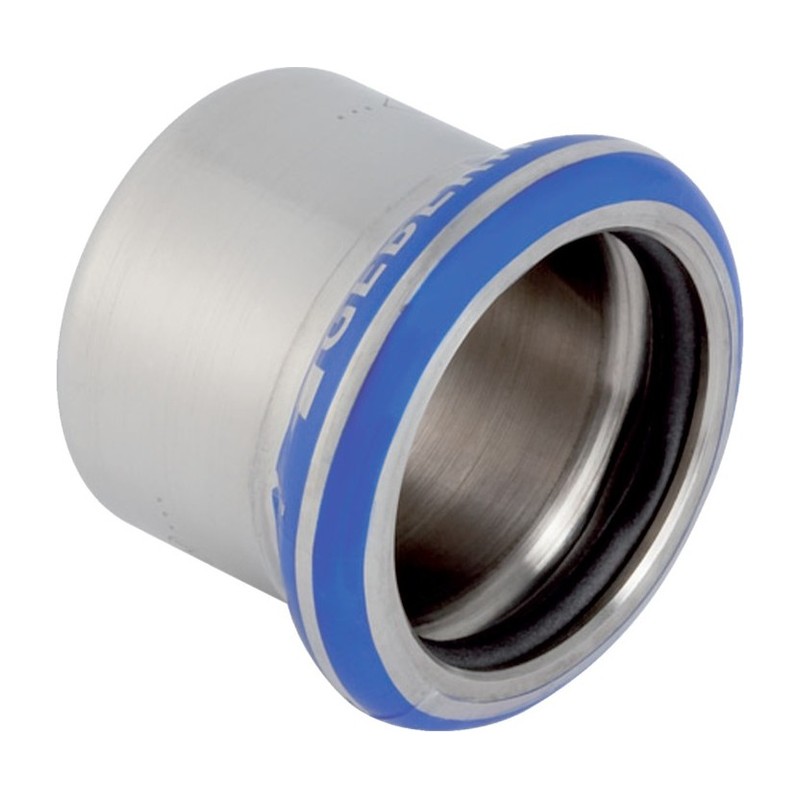

Geberit Mapress 316 Stainless Steel End Cap closes off the end of a stainless press pipe for blanking or future extension. Sizes 15mm to 108mm, available from Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| GEBSSSTOP15 |
|
15mm | £12.88 inc VAT (£10.73 ex VAT) |
-
+
|
£12.88 inc VAT | ||
| GEBSSSTOP22 |
|
22mm | £16.74 inc VAT (£13.95 ex VAT) |
-
+
|
£16.74 inc VAT | ||
| GEBSSSTOP28 |
|
28mm | £20.12 inc VAT (£16.77 ex VAT) |
-
+
|
£20.12 inc VAT | ||
| GEBSSSTOP35 |
|
35mm | £28.10 inc VAT (£23.42 ex VAT) |
-
+
|
£28.10 inc VAT | ||
| GEBSSSTOP42 |
|
42mm | £61.25 inc VAT (£51.04 ex VAT) |
-
+
|
£61.25 inc VAT | ||
| GEBSSSTOP54 |
|
54mm | £67.36 inc VAT (£56.13 ex VAT) |
-
+
|
£67.36 inc VAT | ||
| 33219 |
|
76mm | £85.72 inc VAT (£71.43 ex VAT) |
-
+
|
£85.72 inc VAT | ||
| M33220 |
|
89mm | £104.39 inc VAT (£86.99 ex VAT) |
-
+
|
£104.39 inc VAT | ||
| GEBSSSTOP108 |
|
108mm | £144.61 inc VAT (£120.51 ex VAT) |
-
+
|
£144.61 inc VAT |
Closing a pipe end on a stainless press system is done with the Geberit Mapress 316 Stainless Steel End Cap. It presses onto the tube like any other fitting and seals the end off.
When to use a Geberit Mapress 316 Stainless Steel End Cap
Use one to cap a branch left for future use, close off a dead leg during alterations, or blank a run that has been cut back. It is also handy on phased jobs, where a floor is piped up and capped until the next stage. Remember that long capped dead legs on drinking water systems can let water stagnate, so keep them as short as you can.
- 15mm, 22mm and 28mm
- 35mm, 42mm and 54mm
- 76mm, 89mm and 108mm
- Single press socket, 316 stainless steel
Prepare the pipe end in the usual way: square cut, deburred and clean. Mark the depth, push the cap fully on and press with the jaw for that size. Because a cap takes the full pressure on its face, make sure the pipe is well supported and anchored near the end. On larger sizes, an unanchored cap can try to push the pipe along when the system is filled. Couplings and tees are in the Geberit Mapress 316 stainless steel section if you need to extend the run later.
End caps at our Glasgow counter
Plumb Parts sells them from 555 South Street, Glasgow G14 0QX. You can collect Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, and online orders are accepted.
Specification
- Brand: Geberit
- Range: Mapress 316 Stainless Steel
- Maker code: 33212 (15mm), 33214 (22mm), 33215 (28mm), 33216 (35mm), 33217 (42mm), 33218 (54mm), 33219 (76mm), 33221 (108mm)
- Material: CrNiMo 316 stainless steel 1.4401 (316)
- Connection: Single Press Fit socket, black CIIR seal ring
- Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76mm, 89mm and 108mm
- Max pressure: 16 bar for drinking water and heating water
- Max temperature: 100°C for drinking water and heating water without antifreeze
- Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe
Common Questions
Can an end cap be taken off later?
No, a pressed cap is permanent. To extend the run later, cut the cap off behind the socket and fit a coupling.
Is a capped branch a problem on drinking water?
It can be. Long dead legs let water stand still, so keep any capped branch on a drinking water system as short as you can.
Does a large cap need extra support?
Yes, a cap takes the full system pressure on its face. Anchor the pipe near the cap on 76mm, 89mm and 108mm so it cannot move when filled.
