Geberit Mapress Stainless Steel Gas 45 Degree Elbow 15mm to 108mm
Price range: £13.44 through £321.50 inc VAT ( Price range: £11.20 through £267.92 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

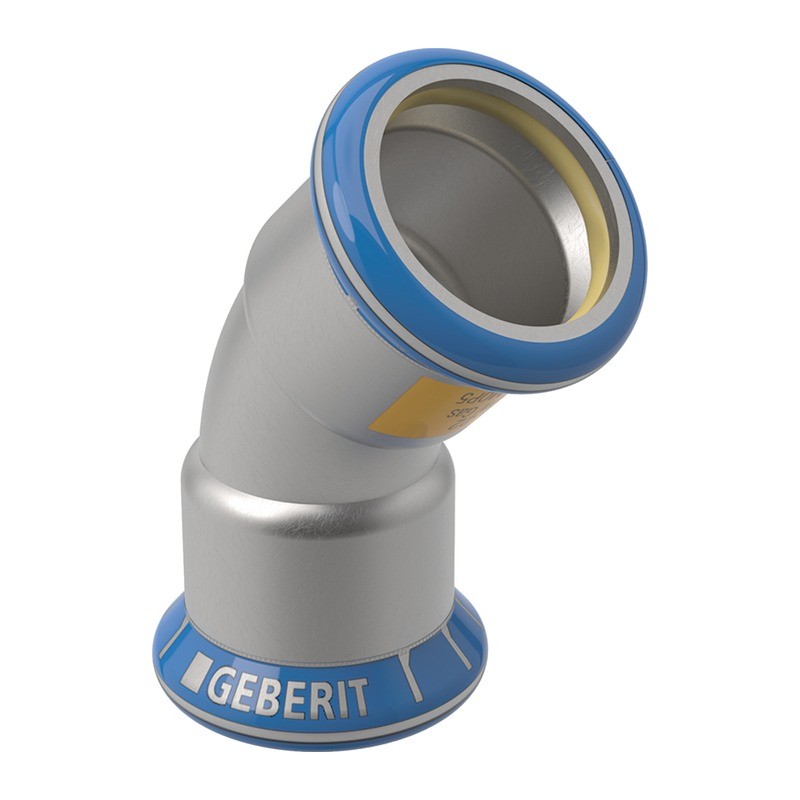

The Mapress Stainless Gas 45 Degree Elbow is a Geberit press fit bend with a press socket on both ends, yellow HNBR seals and yellow gas marking, in CrNiMo 316 stainless steel. Sold from 15mm to 108mm. Collect from our Glasgow counter at 555 South Street G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| 34014 |
|
15mm | £13.44 inc VAT (£11.20 ex VAT) |
-
+
|
£13.44 inc VAT | ||
| 34016 |
|
22mm | £18.34 inc VAT (£15.28 ex VAT) |
-
+
|
£18.34 inc VAT | ||
| 34017 |
|
28mm | £23.22 inc VAT (£19.35 ex VAT) |
-
+
|
£23.22 inc VAT | ||
| 34193 |
|
35mm | £34.64 inc VAT (£28.87 ex VAT) |
-
+
|
£34.64 inc VAT | ||
| 34194 |
|
42mm | £54.30 inc VAT (£45.25 ex VAT) |
-
+
|
£54.30 inc VAT | ||
| 34195 |
|
54mm | £74.88 inc VAT (£62.40 ex VAT) |
-
+
|
£74.88 inc VAT | ||
| 34447 |
|
76.1mm | £191.86 inc VAT (£159.88 ex VAT) |
-
+
|
£191.86 inc VAT | ||
| 34448 |
|
88.9mm | £235.13 inc VAT (£195.94 ex VAT) |
-
+
|
£235.13 inc VAT | ||
| 34449 |
|
108mm | £321.50 inc VAT (£267.92 ex VAT) |
-
+
|
£321.50 inc VAT |
The Mapress Stainless Gas 45 Degree Elbow is a socket-by-socket 45° bend for 316 stainless steel gas pipework, in sizes from 15mm to 108mm, for Gas Safe registered engineers. Both ends take Mapress stainless system pipe and are pressed in the usual way.
Geberit’s datasheet gives the material as CrNiMo 316 stainless steel 1.4401 to EN 10088. The seal ring is yellow HNBR, the fitting is marked yellow and each socket has a yellow protection plug. It is suitable for natural gas, liquefied gas and biogas, and it is silicone-free. A joint left unpressed will leak on test.
Two 45s with a short length of pipe between them make a neater, lower-resistance offset than a pair of 90s, and are easier to get round obstructions in risers. Keep the plugs in until you fit, mark the insertion depth, check the seal and press with the correct jaw. We carry 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm, 88.9mm and 108mm.
Couplings, tees and stop ends are in our Geberit Mapress Gas 316 Stainless Steel Press Fit section.
Specification
- Brand: Geberit
- Range: Mapress 316 Stainless Steel Gas
- Maker code: 34014 (15mm), 34016 (22mm), 34017 (28mm), 34193 (35mm), 34194 (42mm), 34195 (54mm), 34447 (76.1mm), 34448 (88.9mm), 34449 (108mm)
- Material: CrNiMo 316 stainless steel 1.4401 (EN 10088), yellow HNBR seal ring
- Connection: Press socket both ends
- Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm, 88.9mm, 108mm
- Suitable for: Natural gas, liquefied gas and biogas (Geberit datasheet)
- Standard/approval: Gas approvals to DVGW G 260
- Max pressure: 5 bar (maximum operating pressure)
- Max temperature: -20°C to +70°C
Common Questions
Why use two 45s instead of two 90s for an offset? Two 45s give a smoother path for the gas and take up less room in a riser.
Is the Mapress Stainless Gas 45 Degree Elbow silicone-free? Yes. Geberit describe the gas range as silicone-free (LABS-free).
How do I tell gas Mapress from water Mapress? Gas fittings are marked yellow with a yellow HNBR seal and yellow plugs. The water range has black seals and clear plugs, and must not be used on gas.
Who can install Mapress gas fittings? Any work on a gas installation must be carried out by a Gas Safe registered engineer, including the tightness test.
You can collect from 555 South Street, Glasgow G14 0QX, or buy online. The shop is open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Datasheets
- Geberit Mapress 316 Stainless Steel Application Overview (Gaseous Media) (PDF)
| Size |
15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,76.1mm ,88.9mm ,108mm |
|---|
