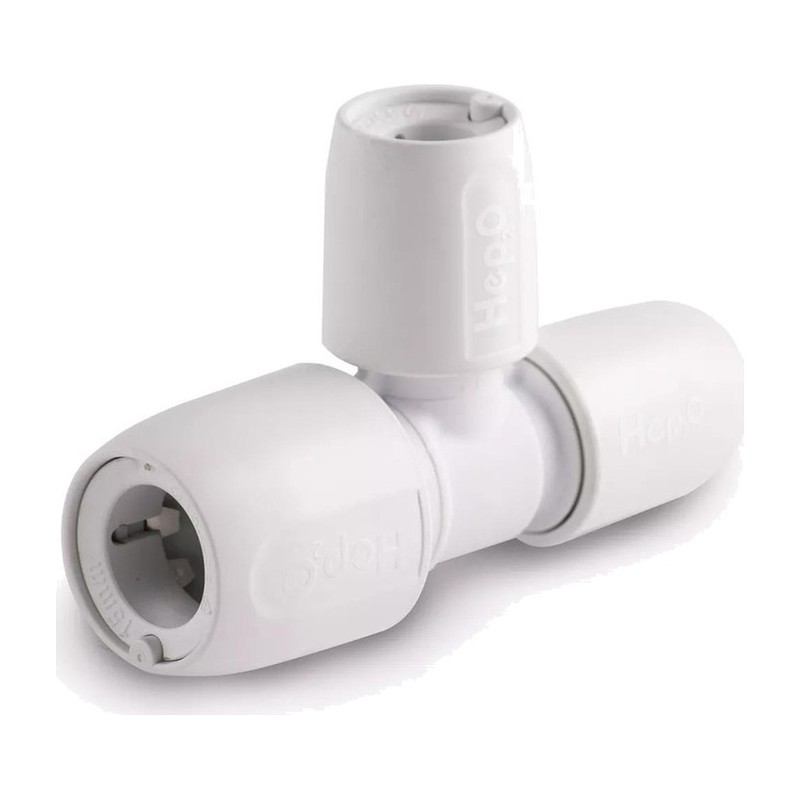

Hep2O Branch and One End Reduced Tee 15mm to 28mm
Price range: £4.03 through £10.92 inc VAT ( Price range: £3.36 through £9.10 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Hep2O Branch and One End Reduced Tee has one full-size end, with the other end and the branch reduced. Sizes 15mm x 10mm x 10mm to 28mm x 22mm x 22mm, sold by Plumb Parts, Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| HD1414W |
|
15mm x 10mm x 10mm | £4.03 inc VAT (£3.36 ex VAT) |
-
+
|
£4.03 inc VAT | ||
| HD14A22W |
|
22mm x 10mm x 10mm | £4.03 inc VAT (£3.36 ex VAT) |
-
+
|
£4.03 inc VAT | ||
| HD1422W |
|
22mm x 15mm x 15mm | £4.03 inc VAT (£3.36 ex VAT) |
-
+
|
£4.03 inc VAT | ||
| HD1428W |
|
28mm x 22mm x 22mm | £10.92 inc VAT (£9.10 ex VAT) |
-
+
|
£10.92 inc VAT |
At the end of a run that splits two ways, the Hep2O Branch and One End Reduced Tee saves a reducer. One end takes the full-size feed, and both the straight-through end and the branch take the smaller pipe.
Where the Hep2O Branch and One End Reduced Tee fits
A common case is a 22mm supply that splits into two 15mm pipes, for example hot water to a basin and a bath. On heating, the 15mm x 10mm x 10mm size can split a 15mm feed into two microbore pipes for a pair of radiators. The first figure is always the full-size end.
Use a support sleeve in every pipe end and push the pipe in until it bottoms. A firm tug confirms each joint has locked. Mark the insertion depth if you want to see it at a glance. Clip the pipe near the tee, so the weight of the runs does not pull on the joints.
Other tees and reducers are listed in Hep2O fittings.
Specification
- Brand: Hep2O
- Maker code: HD14/22W, HD14/28W
- Connection: Push Fit sockets
- Sizes: 15mm x 10mm x 10mm, 22mm x 10mm x 10mm, 22mm x 15mm x 15mm, 28mm x 22mm x 22mm
- Material: Polybutylene body, EPDM O-ring
- Standard or approval: BS 7291 Parts 1 and 2, Class S (Kitemark)
- Max pressure: 12 bar at 20°C
- Max temperature: 95°C at up to 6 bar (114°C short fault only)
- Suitable for: Splitting a feed into two smaller pipes
- Guarantee: 50 years
Common Questions
Which end of the tee is the full size?
The first figure. On 22mm x 15mm x 15mm, the 22mm pipe comes in and the other end and the branch both take 15mm.
Is this the same as a double end reduced tee?
No. On this tee the reduced ports are one end and the branch. On a double end reduced tee, both ends are small and the branch is the big port.
Can I use it at the last radiator pair?
Yes. A 15mm x 10mm x 10mm tee at the end of a 15mm run can split off to two radiators on microbore.
Our Glasgow counter
Plumb Parts, 555 South Street, Glasgow G14 0QX is open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and orders can go in online.
Datasheets
| Size |
15mm x 10mm x 10mm ,22mm x 10mm x 10mm ,22mm x 15mm x 15mm ,28mm x 22mm x 22mm |
|---|
