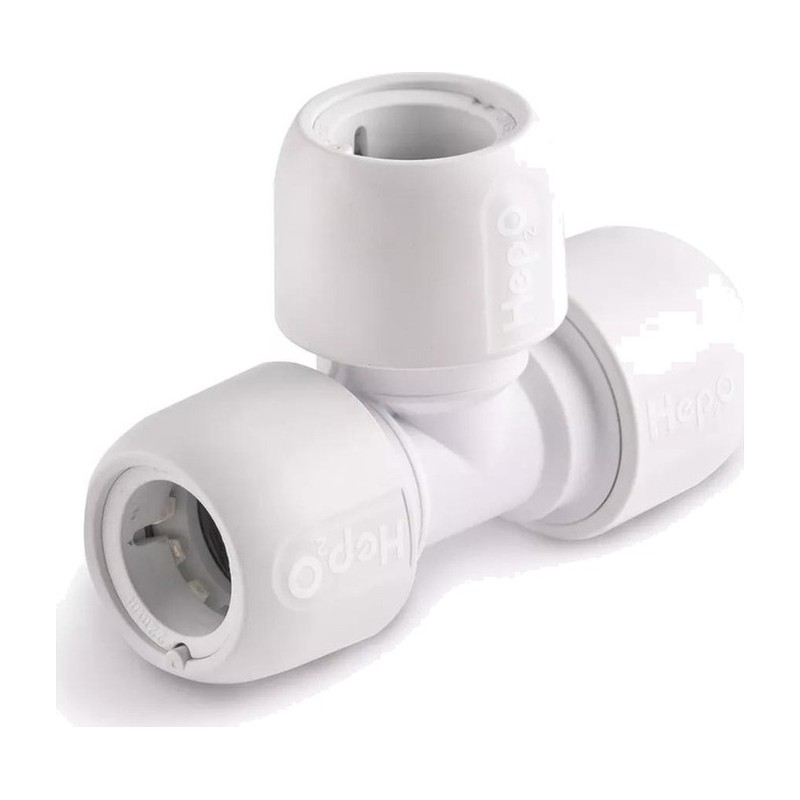

Hep2O Equal Tee 10mm to 28mm
Price range: £3.82 through £18.94 inc VAT ( Price range: £3.18 through £15.78 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Hep2O Equal Tee takes a branch off a Hep2O run, with all three ends the same size. Sizes 10mm, 15mm, 22mm and 28mm, for heating and water. Stocked by Plumb Parts, Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| HD1010W |
|
10mm | £3.82 inc VAT (£3.18 ex VAT) |
-
+
|
£3.82 inc VAT | ||
| HD1015W |
|
15mm | £3.95 inc VAT (£3.29 ex VAT) |
-
+
|
£3.95 inc VAT | ||
| HD1022W |
|
22mm | £3.82 inc VAT (£3.18 ex VAT) |
-
+
|
£3.82 inc VAT | ||
| HD1028W |
|
28mm | £18.94 inc VAT (£15.78 ex VAT) |
-
+
|
£18.94 inc VAT |
The Hep2O Equal Tee is the standard three-way fitting in the Hep2O system. It takes a branch off a pipe run at 90 degrees, and all three Push Fit sockets are the same size.
Using the Hep2O Equal Tee
Typical jobs include teeing off for a radiator, splitting a cold feed to a basin and WC, or adding a branch for an outside tap. 10mm tees suit microbore heating. 15mm and 22mm cover most household hot, cold and heating runs. 28mm is for larger supplies and primaries.
Every plastic pipe end needs a support sleeve. Push each pipe in until it reaches the stop inside the socket, and pull back to check it has locked. Line up the branch before you push the last pipe in, because the tee can still swivel on the pipe until everything is clipped.
Reducing tees are in our Hep2O fittings range too.
Specification
- Brand: Hep2O
- Maker code: HD10/10W (10mm), HD10/15W (15mm), HD10/22W (22mm), HD10/28W (28mm)
- Connection: Push Fit socket on all three ends
- Sizes: 10mm, 15mm, 22mm and 28mm
- Material: Polybutylene body, EPDM O-ring
- Standard or approval: BS 7291 Parts 1 and 2, Class S (Kitemark)
- Max pressure: 12 bar at 20°C
- Max temperature: 95°C at up to 6 bar (114°C short fault only)
- Suitable for: Equal branches on water and heating pipework
- Guarantee: 50 years
Common Questions
Can a 15mm equal tee feed a radiator?
Yes, on a 15mm system the branch takes the radiator tail. For microbore radiators, use a reducing tee or spigot reducer.
Can I put a Hep2O tee under a floor?
Yes, but leave access where the regulations or your own good sense ask for it, and clip the pipe so the tee does not move.
Will a Hep2O tee join to copper?
Yes. Copper goes into the same sockets with no insert. Take the burr off the cut and wipe it clean first.
Picking up tees in Glasgow
Visit Plumb Parts at 555 South Street, Glasgow G14 0QX. Opening hours are Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm, or buy online.
Datasheets
| Size |
10mm ,15mm ,22mm ,28mm |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products

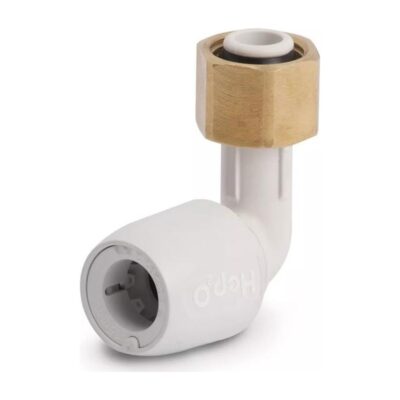

Hep2O Bent Tap Connector 15mm
£5.45 inc VAT (£4.54 ex VAT)

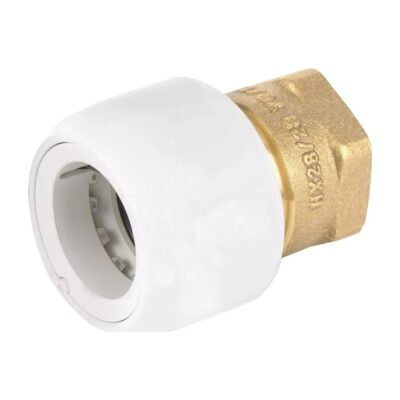

Hep2O Female Adaptor 10mm to 28mm
Price range: £4.54 through £12.82 inc VAT ( Price range: £3.78 through £10.68 ex VAT)

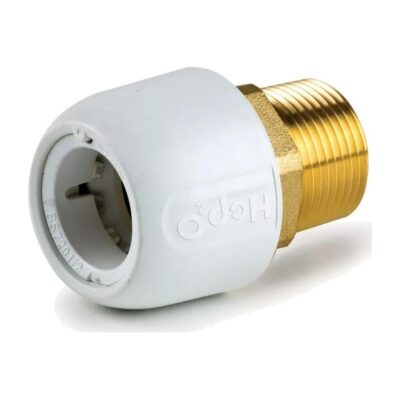

Hep2O Male Adaptor 10mm to 28mm
