Solder Ring One End Reduced Tee 22mm to 54mm

Solder Ring One End Reduced Tee

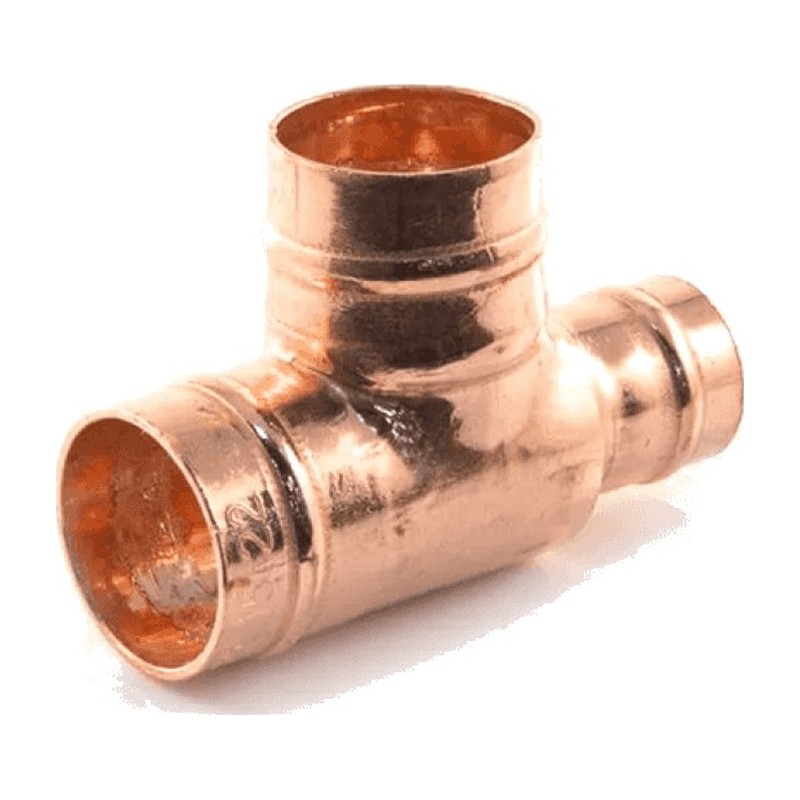

The Solder Ring One End Reduced Tee is a copper Solder Ring tee with one end reduced, available in 22mm to 54mm. Solder is built into the fitting, so the joint is made by cleaning, fluxing and heating, with no extra solder needed.

The Solder Ring One End Reduced Tee joins a smaller pipe on one end of the run, with the other end and the 90 degree branch at the larger size.

The Solder Ring One End Reduced Tee is a copper capillary tee with solder already loaded in each socket, handy where space is tight and you want a neat joint without feeding solder wire.

Clean the pipe end and the inside of the socket until bright, brush on flux, push the pipe fully home and heat the fitting until a bright ring of solder shows all round the mouth. Let the joint cool on its own rather than cooling it with water. The solder in these fittings is lead-free.

This is a simple and cost-effective method of joining copper tubes to standard EN 1057.
Suitable for use above ground and on hot or cold domestic and commercial systems

Solder ring fittings come as tees, couplers, elbows, reducers, stop ends and threaded adaptors for taps and iron pipe, so a whole copper run can be made from the one range.

Join copper pipes and tubes with Copper fittings from our range of plumbing fittings available at Plumb Parts to order online or collect from our store in Glasgow.

At Plumb Parts our Solder Ring One End Reduced Tee is available in the following sizes :

22mm x 15mm x 22mm , 28mm x 15mm x 28mm , 28mm x 22mm x 28mm , 35mm x 22mm x 35mm , 35mm x 28mm x 35mm , 42mm x 35mm x 42mm , 54mm x 42mm x 54mm

Our Extended Range of Fittings include:

Solder Ring Blow Off Pipe Cowl,    SOlder Ring Part Crossover,    Solder Ring Female Fitting Adaptor,    Solder Ring Male Fitting Adaptor,    Solder Ring Air Vent Cap,    Solder Ring Straight Cylinder Union,   Solder Ring Wall Plate Elbow,    Solder Ring Slip COUPLER,    Solder Ring Female Tee,    Solder Ring Equal Elbow,    Solder Ring Elbow 45 Deg,  Solder Ring Street Elbow,    Solder Ring Female Elbow,    Solder Ring Male Elbow,    Solder Ring Fitting REDUCER,    Solder Ring Long Fitting Reducer,    Solder Ring Stop End,    Solder Ring  COUPLER,    Solder Ring Reducing COUPLER,    Solder Ring Bent Tap Connector,    Solder Ring Straight Tap Connector,   Solder Ring Reducing Tee,    Solder Ring Full Crossover

Our Fitting Sizes include:

8mm, 10mm, 12mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm

We also stock a vast range of :

Compression Fittings, End Feed Fittings, and Malleable Iron Fittings

All our Solder Ring Fittings are made from quality Copper to British Standard EN 1254.

Our Solder Ring Fittings can be used for domestic plumbing in your home or for Industrial and Commercial use.

We also stock a wide range of jointing compounds and sundries.

Pick it up from our Glasgow trade counter at 555 South Street, or order online and we will deliver. Browse the full range of Solder Ring fittings.

Specification

• Material: Copper
• Connection: Solder Ring in all sockets
• Sizes: 22mm x 15mm x 22mm up to 54mm x 42mm x 54mm, 7 sizes in the options
• Suitable for: Tees where one end of the run is smaller than the other

Common Questions

What is a reducing tee in plumbing? It’s a tee where one size is smaller than the others. On this one end reduced tee, one end of the run is smaller while the other end and the branch stay at the larger size.

Do solder ring fittings need flux? Yes. The solder is already in the fitting, but you still clean and flux both the pipe and the fitting for the solder to run properly.

How do you solder ring fittings? Clean the pipe end and inside of the fitting, apply flux and push together. Heat until a bright ring of solder shows all round the mouth, then let it cool on its own without water.

Can you reuse solder ring fittings? It’s best not to, as the solder has already run once the joint has been heated. Fit a new one for a reliable joint.

Are solder ring fittings any good? Yes, they give a neat, reliable joint when the pipe is cleaned and fluxed properly. They’re handy in tight spots, as you don’t need to feed in solder by hand.

What sizes does the one end reduced tee come in? It starts at 22mm x 15mm x 22mm and goes up to 54mm x 42mm x 54mm.
