Solder Ring Straight Cylinder Union

What is a Solder Ring Straight Cylinder Union?

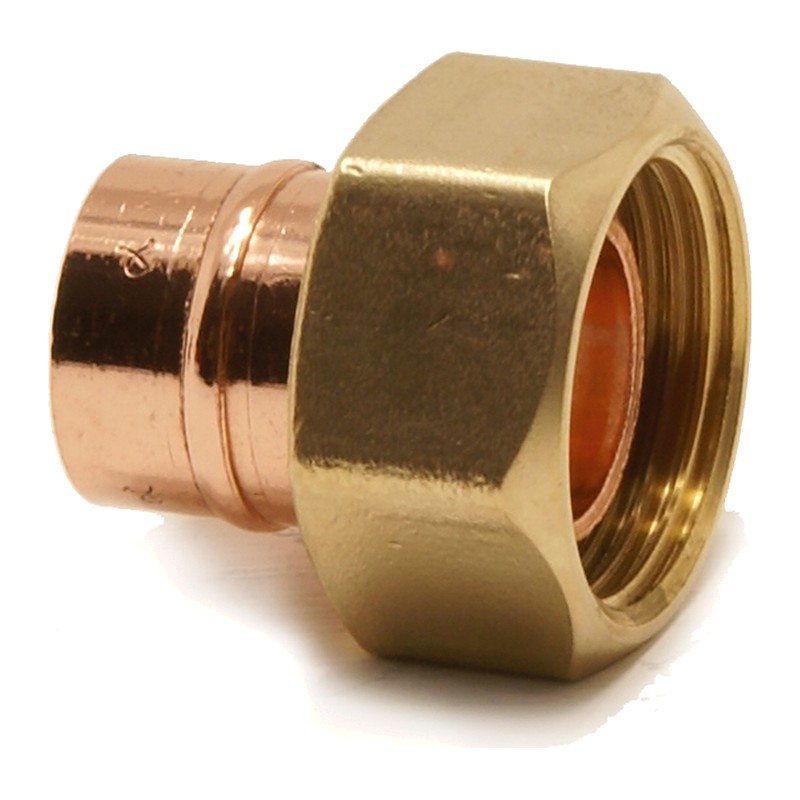

A Solder Ring Straight Cylinder Union is a precision-manufactured copper fitting designed for connecting copper pipes to threaded components in plumbing and heating systems. This specialized fitting incorporates a pre-formed solder ring within the copper connection and features a female threaded end for versatile system integration.

Key Technical Features

Material Construction: Manufactured from high-grade copper conforming to relevant British Standards, this fitting delivers exceptional durability, corrosion resistance, and thermal conductivity. The copper material provides excellent compatibility with copper pipe systems and long-term performance reliability.

Integral Solder Ring: The copper connection incorporates pre-formed lead-free solder rings positioned for optimal heat distribution and joint formation. These integral rings eliminate the need for additional flux and solder, ensuring consistent joint quality and reducing installation time.

Threaded Connection: The female threaded end provides secure connection to male threaded components including valves, appliances, and other fittings. The precision threading ensures reliable seal formation with appropriate thread sealing compounds.

Applications and Benefits

Copper plumbing systems in residential, commercial, and industrial applications utilize these fittings for connecting copper pipework to threaded components. Applications include boiler connections, valve installations, appliance connections, and system integration points requiring copper-to-thread transitions.

Installation Efficiency: Integral solder rings simplify joint formation by eliminating flux and solder application procedures on the copper connection. Professional installers achieve consistent results with reduced material requirements and installation time.

System Versatility: The combination of soldered copper connection and threaded end provides flexibility for connecting different system components. This versatility enables integration of copper pipework with threaded valves, fittings, and appliances.

Joint Reliability: Pre-formed solder rings ensure uniform heat distribution and consistent joint formation on the copper connection. The threaded end provides mechanical connection security with appropriate sealing compounds.

Technical Specifications and Standards

This fitting complies with relevant British Standards for copper pipe fittings and solder ring connections. The copper grade provides appropriate strength characteristics for plumbing applications while maintaining corrosion resistance properties. Threading specifications conform to standard pipe thread requirements.

Quality Assurance: Each fitting undergoes comprehensive manufacturing quality control to verify dimensional accuracy, material properties, solder ring placement, and thread specifications. This commitment ensures consistent installation performance across all supplied components.

Professional Recommendations

Professional plumbers and heating engineers recommend solder ring cylinder unions for projects requiring reliable copper-to-thread connections. The combination of soldered joint reliability and threaded connection versatility makes these fittings ideal for system integration applications.

Design Considerations: The straight cylinder design makes this fitting suitable for direct connections where space permits standard installation procedures. Professional designers utilize cylinder unions for reliable connections between copper systems and threaded components.

Installation Procedures: Proper pipe preparation and heating techniques maximize fitting performance and joint reliability on the copper connection. Professional installation ensures correct thread engagement and adequate heat application for complete solder ring activation.

Maintenance and Service Life

Copper construction requires minimal maintenance in most water conditions. The material’s natural corrosion resistance and antimicrobial properties contribute to system longevity and water quality maintenance. Properly formed connections provide reliable performance throughout system life.

Long-term Performance: Expected service life matches that of the copper pipe system, typically exceeding 50 years under normal operating conditions. The material’s resistance to corrosion and thermal cycling ensures consistent performance throughout the design period.

Environmental Benefits: Copper fittings contribute to sustainable construction through their recyclability and extended service life. The material’s antimicrobial properties reduce the need for chemical water treatment systems.
