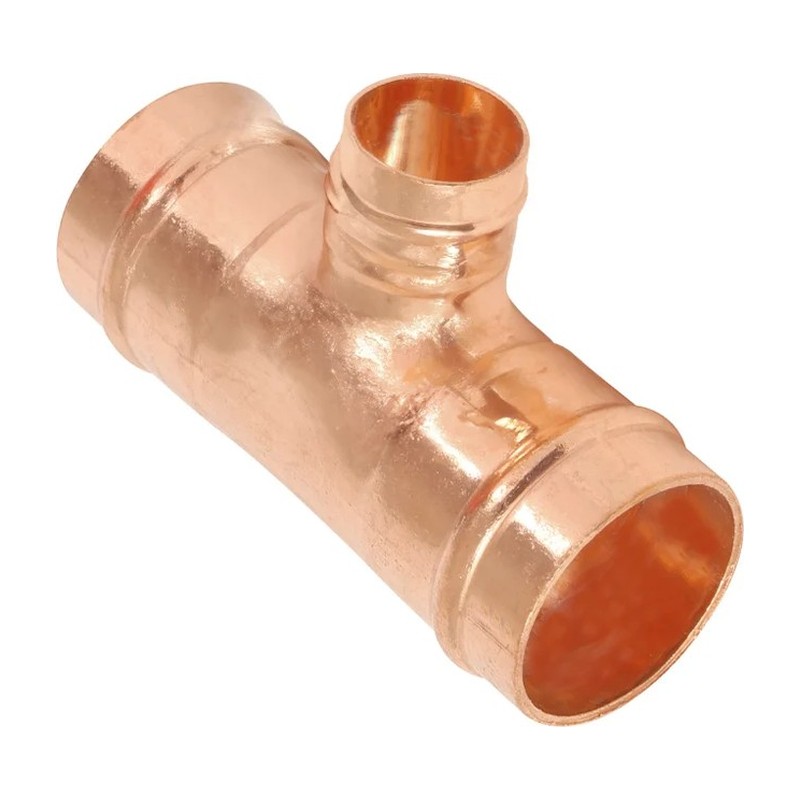

Solder Ring Branch Reducing Tee
Solder Ring Branch Reducing Tee is used to connect a smaller pipe or tube to the center of two pipes that have a larger diameter.
Solder Ring Fittings are pre-soldered capillary connectors used in plumbing and are ideal when fitting pipes in confined spaces…
To obtain perfect joints, the inside of the fitting and the outside of the copper pipe are cleaned using coarse steel wool, flux paste is applied, the pipe is inserted into the fitting and heat applied from a portable propane torch until a ring of solder shows at the edges of the fitting. To obtain a durable joint, water must not be poured on the solder joint to cool it. Fittings are now made with lead-free solder.
The fittings come in a great variety of configurations, such as Tee-pieces, straight couplers, elbows or bends, reducers (to join pipes of different diameters), stop-ends, and there are versions with screw threads (male or female) at one end to fit taps and galvanized iron pipes.
This is a simple and cost-effective method of joining copper tubes to standard EN 1057.
Suitable for use above ground and on hot or cold domestic and commercial systems
Join copper pipes and tubes with Copper fittings from our range of plumbing fittings available at Plumb Parts to order online or collect from our store in Glasgow.
At Plumb Parts our Solder Ring Branch Reducing Tee is available in the following:
Metric sizes : 15mm x 15mm x 10mm , 22mm x 22mm x 15mm , 28mm x 28mm x 15mm , 28mm x 28mm x 22mm , 35mm x 35mm x 15mm , 35mm x 35mm x 22mm , 35mm x 35mm x 28 , 42mm x 42mm x 15mm , 42mm x 42mm x 22mm , 42mm x 42mm x 28mm , 42mm x 42mm x 35mm , 54mm x 54mm x 15mm , 54mm x 54mm x 22mm , 54mm x 54mm x 28mm , 54mm x 54mm x 35mm , 54mm x 54mm x 42mm
Our Extended Range of Fittings include:
SOLDER RING BLOW OFF PIPE COWL,  SOLDER RING PART CROSSOVER,   SOLDER RING FEMALE FITTING ADAPTOR,   SOLDER RING MALE FITTING ADAPTOR,   SOLDER RING AIR VENT CAP,   SOLDER RING STRAIGHT CYLINDER UNION,  SOLDER RING WALL PLATE ELBOW,   SOLDER RING SLIP COUPLER,   SOLDER RING FEMALE TEE,   SOLDER RING EQUAL ELBOW,   SOLDER RING EQUAL TEE,   SOLDER RING OBTUSE ELBOW, SOLDER RING STREET ELBOW,   SOLDER RING FEMALE ELBOW,   SOLDER RING MALE ELBOW,  SOLDER RING FITTING REDUCER,   SOLDER RING LONG FITTING REDUCER,   SOLDER RING STOP END,   SOLDER RING COUPLER,   SOLDER RING REDUCING COUPLER,   SOLDER RING BENT TAP CONNECTOR,  SOLDER RING STRAIGHT TAP CONNECTOR,   SOLDER RING FULL CROSSOVER
Our Fitting Sizes include:
6mm 8mm 10mm 12mm 15mm 16mm 22mm 28mm 35mm 42mm 54mm and 67mm
We also stock a vast range of :
COMPRESSION FITTINGS, END FEED FITTINGS, and MALLEABLE IRON FITTINGS
All our Solder Ring Fittings are made from quality Copper to British Standard EN 1254.
Our Solder Ring Fittings can be used for domestic plumbing in your home or for Industrial and Commercial use.
We also stock a wide range of jointing compounds and sundries.
For more information on copper Solder Ring Fittings visit
www.ukcopperboard.co.uk
