Solder Ring Wall Plate Elbow 15mm to 22mm

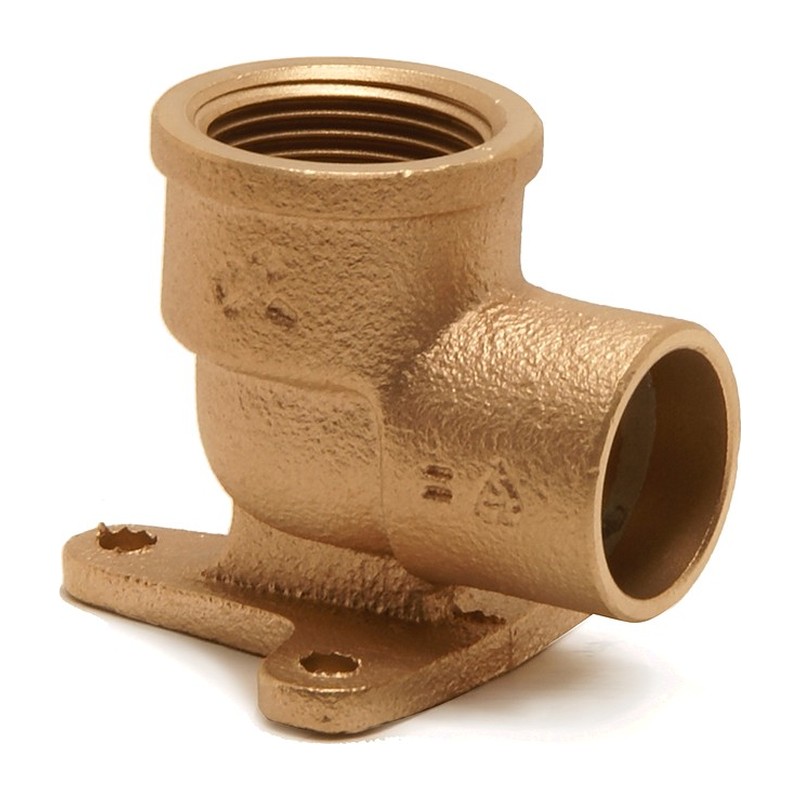

Solder Ring Wall Plate Elbow

The Solder Ring Wall Plate Elbow is a Solder Ring wall plate elbow for fixing tap and outlet points to a wall, available in 15mm x 1/2" and 22mm x 3/4". Solder is built into the fitting, so the joint is made by cleaning, fluxing and heating, with no extra solder needed.

It turns the pipe through 90 degrees and has a fixing plate, so a tap or valve with a male thread can screw into it firmly on the wall.

To obtain perfect joints, the inside of the fitting and the outside of the copper pipe are cleaned using coarse steel wool, flux paste is applied, the pipe is inserted into the fitting and heat applied from a portable propane torch until a ring of solder shows at the edges of the fitting. To obtain a durable joint, water must not be poured on the solder joint to cool it. Fittings are now made with lead-free solder.

This is a simple and cost-effective method of joining copper tubes to standard EN 1057.
Suitable for use above ground and on hot or cold domestic and commercial systems

The fittings come in a great variety of configurations, such as Tee-pieces, straight couplers, elbows or bends, reducers (to join pipes of different diameters), stop-ends, and there are versions with screw threads (male or female) at one end to fit taps and galvanised iron pipes.

Join copper pipes and tubes with Copper fittings from our range of plumbing fittings available at Plumb Parts to order online or collect from our store in Glasgow.

At Plumb Parts our Solder Ring Female WallPlate Elbow and Wallplate Connectors are available in the following sizes:

15mm x 1/2″

22mm x 3/4″

We also have a vast range of additional Solder Ring Fittings in the following sizes:

Metric sizes 8mm,10mm,15mm,22mm,28mm,35mm,42mm,54mm

Our Extended Range of Fittings include:

Solder Ring Blow Off Pipe Cowl,    SOlder Ring Part Crossover,    Solder Ring Female Fitting Adaptor,    Solder Ring Air Vent Cap,     Solder Ring Slip COUPLER,    Solder Ring Female Tee,    Solder Ring Equal Elbow,    Solder Ring Elbow 45 Deg,  Solder Ring Street Elbow,  Solder Ring Female Elbow,    Solder Ring Male Elbow,     Solder Ring Long Fitting Reducer,   Solder Ring  COUPLER,    Solder Ring Reducing COUPLER,  Solder Ring Bent Tap Connector,    Solder Ring Straight Tap Connector,   Solder Ring Reducing Tee,    Solder Ring Full Crossover

We also stock a vast range of:

Compression Fittings, End Feed Fittings, and Malleable Iron Fittings

All our Solder Ring Fittings are made from quality Copper to British Standard EN 1254.

Our Solder Ring Fittings can be used for domestic plumbing in your home or for Industrial and Commercial use.

We also stock a wide range of jointing compounds and sundries.

Pick it up from our Glasgow trade counter at 555 South Street, or order online and we will deliver. Browse the full range of Solder Ring fittings.

Specification

• Connection: Solder Ring socket and female thread on a fixing plate
• Sizes: 15mm x 1/2″ and 22mm x 3/4″
• Suitable for: Fixing a tap or outlet point firmly to a wall or board

Common Questions

What is a wall plate elbow used for?

It gives a rigid fixing point for a tap or valve that screws into its female thread. Typical uses are outside taps, washing machine valves and shower feeds.

How do I fix it to the wall?

Screw the plate to a solid backing, such as masonry or a timber noggin. A firm fixing stops the pipe twisting when the tap is turned.

Solder first or fix first?

Make the soldered joint first and allow it to cool before fixing the plate. It is easier to heat the joint away from the wall and the plugs.
