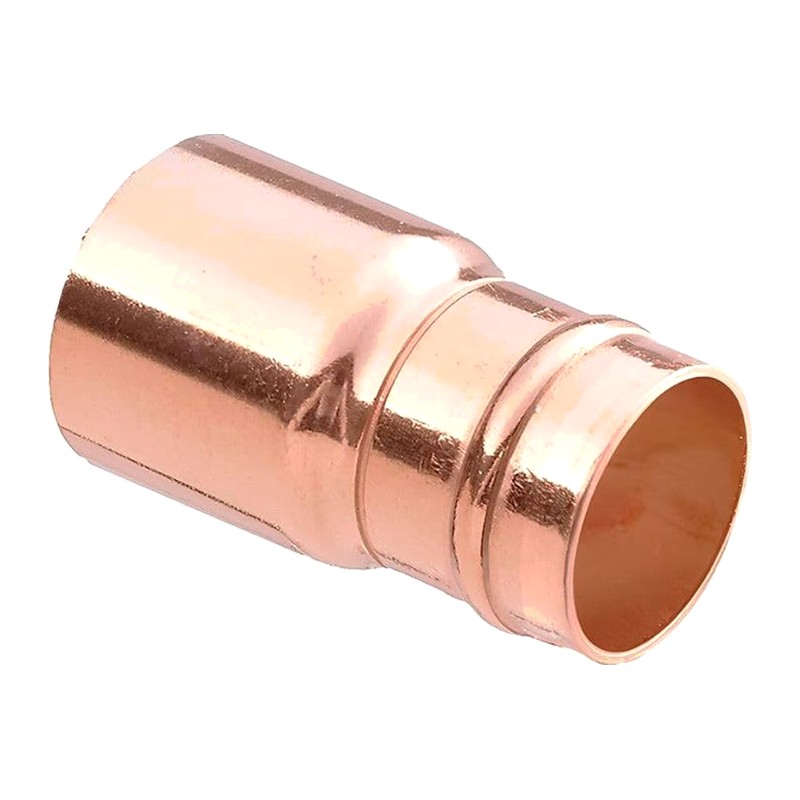

Solder Ring Fitting Reducer 10mm to 54mm

Solder Ring Fitting Reducer

The Solder Ring Fitting Reducer is a copper Solder Ring reducer that fits inside a larger fitting to step down the pipe size, available in 8mm to 54mm. Solder is built into the fitting, so the joint is made by cleaning, fluxing and heating, with no extra solder needed.

Solder Ring Fitting Reducer are soldered into another fitting to reduce its size and are pre-soldered capillary connectors used in plumbing and are ideal when fitting pipes in confined spaces…

To obtain perfect joints, the inside of the fitting and the outside of the copper pipe are cleaned using coarse steel wool, flux paste is applied, the pipe is inserted into the fitting and heat applied from a portable propane torch until a ring of solder shows at the edges of the fitting. To obtain a durable joint, water must not be poured on the solder joint to cool it. Fittings are now made with lead-free solder.

This is a simple and cost-effective method of joining copper tubes to standard EN 1057.
Suitable for use above ground and on hot or cold domestic and commercial systems

The fittings come in a great variety of configurations, such as Tee-pieces, straight couplers, elbows or bends, reducers (to join pipes of different diameters), stop-ends, and there are versions with screw threads (male or female) at one end to fit taps and galvanised iron pipes.

Join copper pipes and tubes with Copper fittings from our range of plumbing fittings available at Plumb Parts to order online or collect from our store in Glasgow.

At Plumb Parts our Solder Ring Fitting Reducer are available in the following sizes :

10mm x 8mm, 15mm x 8mm , 15mm x 10mm , 15mm x 12mm , 22mm x 15mm , 28mm x 15mm , 28mm x 22mm , 35mm x 15mm ,  35mm x 22mm , 35mm x 28mm , 42mm x 15mm , 42mm x 22mm , 42mm x 28mm , 42mm x 35mm , 54mm x 15mm , 54mm x 22mm , 54mm x 28mm , 54mm x 35mm , 54mm x 42mm

Our Extended Range of Fittings include:

Solder Ring Blow Off Pipe Cowl,    SOlder Ring Part Crossover,    Solder Ring Female Fitting Adaptor,    Solder Ring Air Vent Cap,    Solder Ring Straight Cylinder Union,   Solder Ring Wall Plate Elbow,    Solder Ring Slip COUPLER,    Solder Ring Female Tee,    Solder Ring Equal Elbow,    Solder Ring Elbow 45 Deg,  Solder Ring Street Elbow,    Solder Ring Female Elbow,    Solder Ring Male Elbow,     Solder Ring Long Fitting Reducer,   Solder Ring  COUPLER,    Solder Ring Reducing COUPLER,    Solder Ring Bent Tap Connector,    Solder Ring Straight Tap Connector,   Solder Ring Reducing Tee,    Solder Ring Full Crossover

Our Fitting Sizes include:

8mm, 10mm , 15mm  , 22mm , 28mm , 35mm , 42mm , 54mm

We also stock a vast range of :

Compression Fittings, End Feed Fittings, and Malleable Iron Fittings

All our Solder Ring Fittings are made from quality Copper to British Standard EN 1254.

Our Solder Ring Fittings can be used for domestic plumbing in your home or for Industrial and Commercial use.

We also stock a wide range of jointing compounds and sundries.

Pick it up from our Glasgow trade counter at 555 South Street, or order online and we will deliver. Browse the full range of Solder Ring fittings.

Specification

• Material: Copper
• Connection: Solder Ring on the small end; the large end spigot goes into another fitting
• Sizes: 20 sizes from 10mm x 8mm to 54mm x 42mm
• Suitable for: Reducing the socket of a tee, elbow or coupler to a smaller pipe

Common Questions

What is a copper solder ring fitting reducer? It’s a copper fitting that solders into a larger fitting to step it down to a smaller pipe size, so you don’t need a separate reducing fitting. The solder is already built in.

How do I install a solder ring fitting reducer? Clean the inside of the fitting and the outside of the pipe, apply flux, push the pipe in and heat until a ring of solder shows at the edge. Let it cool naturally rather than throwing water on it.

What sizes do the solder ring fitting reducers come in? They run from 10mm x 8mm up to 54mm x 42mm, including the everyday 22mm x 15mm. You can collect from our Glasgow shop on South Street.

Is a fitting reducer the same as a reducing coupler? Not quite. A fitting reducer slots inside the socket of a bigger fitting, while a reducing coupler joins two pipes of different sizes directly.

Can I use a solder ring fitting reducer on plastic pipe? No, it’s for copper pipe only, made to suit EN 1057 tube.

Is the solder in these fitting reducers lead free? Yes, the fittings are now made with lead-free solder, so they suit drinking water pipework.
