Hep2O Branch Reducing Tee 15mm to 28mm
Price range: £4.03 through £12.02 inc VAT ( Price range: £3.36 through £10.02 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

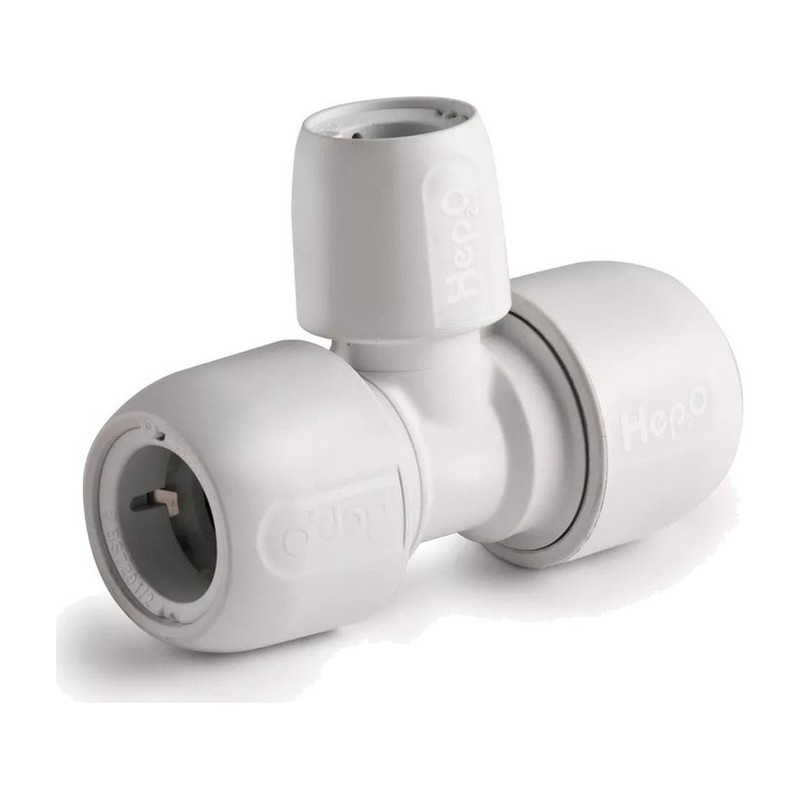

The Hep2O Branch Reducing Tee takes a smaller branch off a Hep2O run with Push Fit sockets. Sizes from 15mm x 15mm x 10mm to 28mm x 28mm x 22mm. Stocked by Plumb Parts, Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| HD1315W |
|
15mmx15mmx10mm | £4.03 inc VAT (£3.36 ex VAT) |
-
+
|
£4.03 inc VAT | ||
| HD13A22W |
|
22mmx22mmx10mm | £4.03 inc VAT (£3.36 ex VAT) |
-
+
|
£4.03 inc VAT | ||
| HD1322W |
|
22mmx22mmx15mm | £4.03 inc VAT (£3.36 ex VAT) |
-
+
|
£4.03 inc VAT | ||
| HD1828W |
|
22mmx22mmx28mm | £12.02 inc VAT (£10.02 ex VAT) |
-
+
|
£12.02 inc VAT | ||
| HD13A28W |
|
28mm x 28mm x 15mm | £10.92 inc VAT (£9.10 ex VAT) |
-
+
|
£10.92 inc VAT | ||
| HD1328W |
|
28mm x 28mm x 22mm | £10.92 inc VAT (£9.10 ex VAT) |
-
+
|
£10.92 inc VAT |
The Hep2O Branch Reducing Tee does the everyday job of taking a smaller pipe off a main run. The two run ends match, and the branch at 90 degrees takes a smaller pipe, all with Push Fit sockets.
Hep2O Branch Reducing Tee sizes
Read the size as run x run x branch. 15mm x 15mm x 10mm suits microbore radiator drops off a 15mm circuit. 22mm x 22mm x 10mm and 22mm x 22mm x 15mm take branches off a 22mm heating or water main. 28mm x 28mm x 15mm and 28mm x 28mm x 22mm work on larger primary or supply runs. There is also a 22mm x 22mm x 28mm option listed, where the branch is larger than the run.
Cut the pipe square, fit support sleeves and push each pipe into its socket until it stops. Check each joint by pulling back on the pipe.
Other tees are in our Hep2O fittings range.
Specification
- Brand: Hep2O
- Maker code: HD13/22W, HD13A/28W, HD13/28W
- Connection: Push Fit sockets all three ends
- Sizes: 15mm x 15mm x 10mm up to 28mm x 28mm x 22mm
- Material: Polybutylene body, EPDM O-ring
- Standard or approval: BS 7291 Parts 1 and 2, Class S (Kitemark)
- Max pressure: 12 bar at 20°C
- Max temperature: 95°C at up to 6 bar (114°C short fault only)
- Suitable for: Smaller branches off water and heating runs
- Guarantee: 50 years
Common Questions
Can a 28mm Hep2O tee take a 15mm branch?
Yes, the 28mm x 28mm x 15mm tee does that in one fitting, which is handy on larger feeds.
Is 22mm x 22mm x 28mm a branch reducing tee?
No. There the branch is bigger than the run, which is a double end reduced tee in Hep2O terms. It is listed here as an option, so check before ordering.
Can the branch tee be turned after fitting?
A Hep2O joint can swivel a little on the pipe, but do not use that to line things up under strain. Clip pipes so the tee sits square.
Buy Hep2O tees in Glasgow
Call at Plumb Parts, 555 South Street, Glasgow G14 0QX, Monday to Friday 8am to 5pm, or Saturday and Sunday 8am to 1pm. You can also order online.
Datasheets
| Sizes |
22mmx22mmx28mm ,15mmx15mmx10mm ,22mmx22mmx10mm ,22mmx22mmx15mm ,28mm x 28mm x 15mm ,28mm x 28mm x 22mm |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products

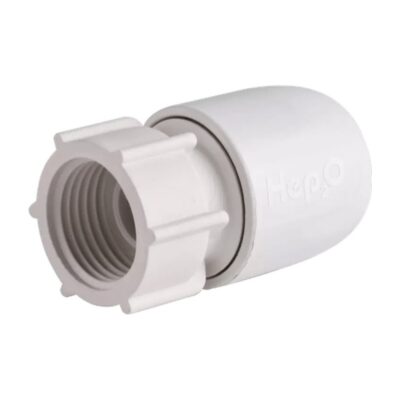

Hep2O Hand Titan Tap Connector 15mm to 22mm
Price range: £3.72 through £5.38 inc VAT ( Price range: £3.10 through £4.48 ex VAT)

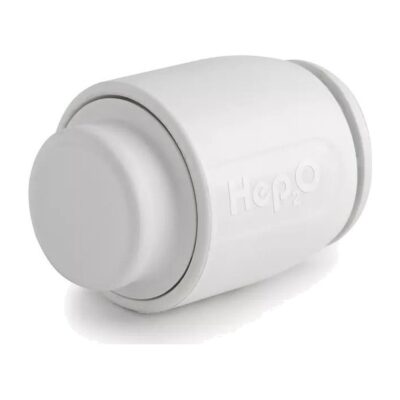

Hep2O Stop End 10mm to 28mm
