Hep2O Female Adaptor 10mm to 28mm
Price range: £4.54 through £12.82 inc VAT ( Price range: £3.78 through £10.68 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Hep2O Female Adaptor joins Hep2O pipe to a male threaded fitting. Sizes 10mm x 1/2″ up to 28mm x 1″, for valves, tails and appliances. Stocked by Plumb Parts, Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| HX2810W |
|
10mm x 1/2" | £5.14 inc VAT (£4.28 ex VAT) |
-
+
|
£5.14 inc VAT | ||
| HX2815W |
|
15mm x 1/2" | £4.54 inc VAT (£3.78 ex VAT) |
-
+
|
£4.54 inc VAT | ||
| HX2415W |
|
15mm x 3/4" | £7.19 inc VAT (£5.99 ex VAT) |
-
+
|
£7.19 inc VAT | ||
| HX2822W |
|
22mm x 3/4" | £6.48 inc VAT (£5.40 ex VAT) |
-
+
|
£6.48 inc VAT | ||
| HX2828W |
|
28mm x 1" | £12.82 inc VAT (£10.68 ex VAT) |
-
+
|
£12.82 inc VAT |

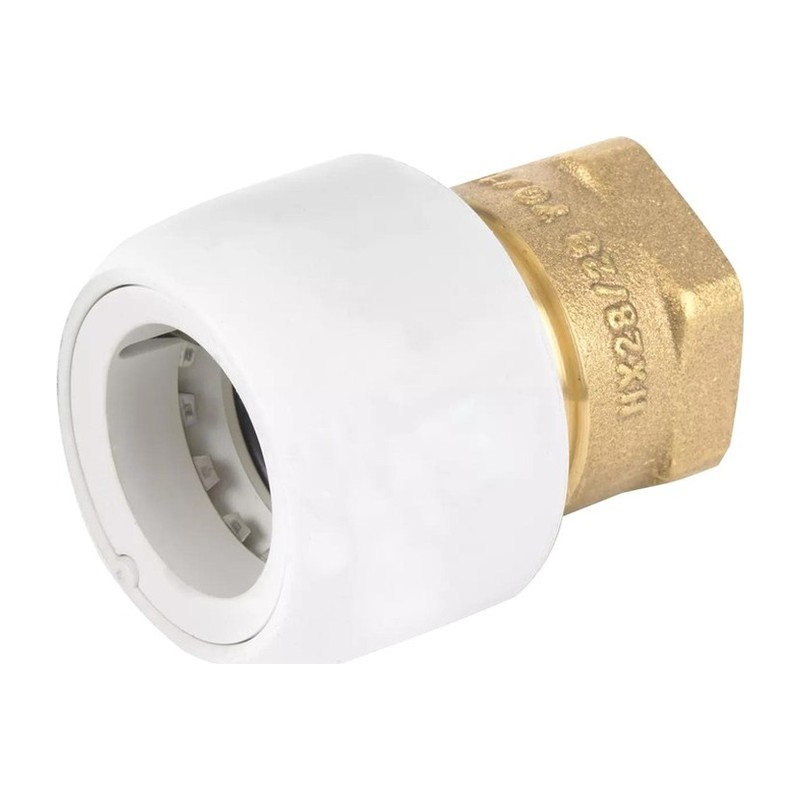

The Hep2O Female Adaptor has a Hep2O Push Fit socket at one end and a female thread at the other. So a plastic pipe can connect onto any male threaded valve, tail, pump or appliance inlet.
Sizes of Hep2O Female Adaptor
10mm x 1/2″ connects microbore to a 1/2″ male thread, such as a manifold or valve. 15mm x 1/2″ is the everyday size on domestic water. 15mm x 3/4″ lets 15mm pipe meet a 3/4″ male thread, for example an appliance or float valve tail. 22mm x 3/4″ and 28mm x 1″ suit larger valves, pumps and cylinder connections.
Make the threaded joint first, with PTFE tape or a plastic-safe sealant on the male thread, and tighten without overdoing it. Then insert a support sleeve and press the pipe home.
Male adaptors are listed alongside in our Hep2O fittings range.
Specification
- Brand: Hep2O
- Maker code: HX28/10W (10mm x 1/2″), HX28/15W (15mm x 1/2″), HX24/15W (15mm x 3/4″), HX28/22W (22mm x 3/4″), HX28/28W (28mm x 1″)
- Material: Brass, dezincification resistant
- Connection: Hep2O socket, female BSP thread
- Sizes: 10mm x 1/2″, 15mm x 1/2″, 15mm x 3/4″, 22mm x 3/4″ and 28mm x 1″
- Suitable for: Connecting pipe onto male threads
- Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
- Max pressure: 12 bar at 20°C, 6 bar at 95°C
- Max temperature: Up to 95°C
- Guarantee: 50 years
Common Questions
Does the female adaptor take copper?
Yes. Copper pushes into its socket without an insert, so it can link copper to a male thread too.
Can I screw it on after the pipe is in?
Make the thread first. Spinning the adaptor with the pipe fitted can twist the pipe.
Is 15mm x 3/4″ for float valves?
It suits a 3/4″ male tail such as on some float valves and appliances.
Hep2O adaptors at the Glasgow shop
Plumb Parts is at 555 South Street, Glasgow G14 0QX. Hours run Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm, and the website takes orders.
Datasheets
| Size |
10mm x 1/2" ,15mm x 1/2" ,15mm x 3/4" ,22mm x 3/4" ,28mm x 1" |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products

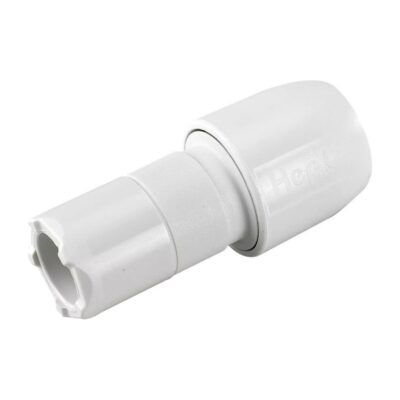

Hep2O Spigot Reducer 15mm to 28mm
Price range: £2.18 through £5.29 inc VAT ( Price range: £1.82 through £4.41 ex VAT)

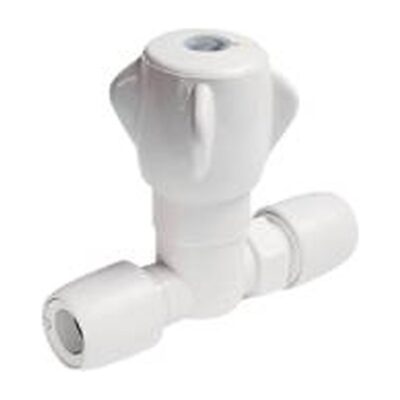

Hep2O Stop Cock 15mm to 22mm
Price range: £7.14 through £8.53 inc VAT ( Price range: £5.95 through £7.11 ex VAT)

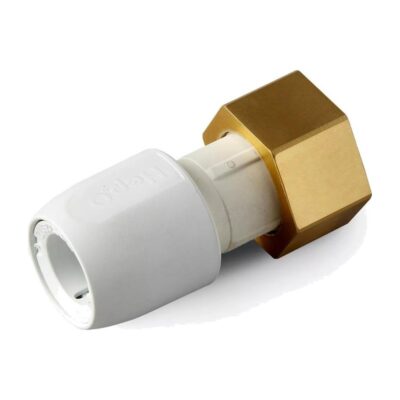

Hep2O Straight Tap Connector 15mm to 22mm
