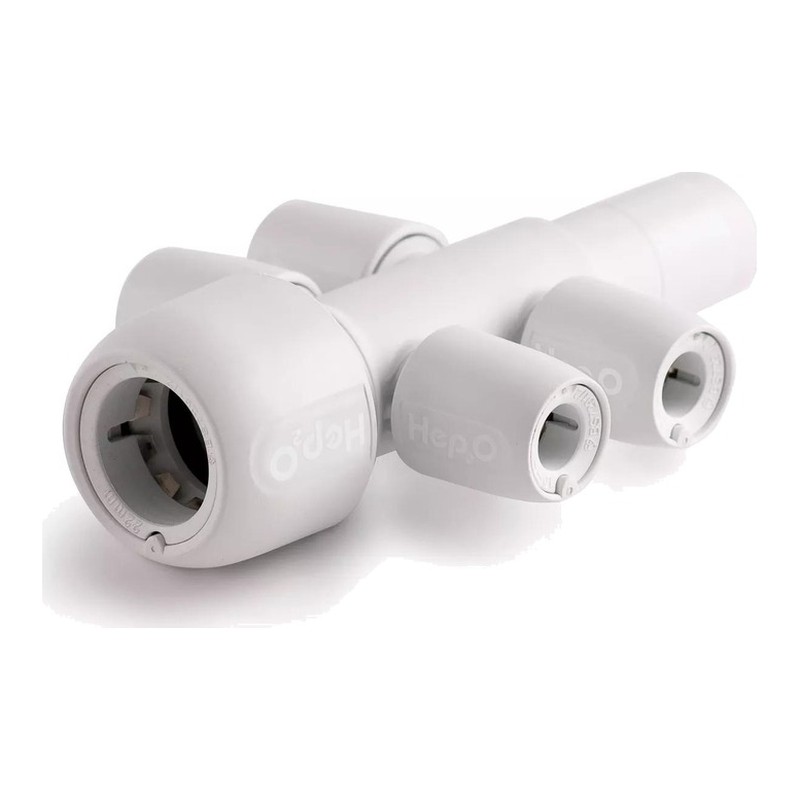

Hep2O Socket and Closed Spigot Manifold 15mm to 22mm
Price range: £11.03 through £31.61 inc VAT ( Price range: £9.19 through £26.34 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Hep2O Socket and Closed Spigot Manifold shares one supply out to several outlets, with a socket inlet and a closed end. 2, 3 or 4 port options. Ask at Plumb Parts in Glasgow.
| SKU | Thumbnail | Type | Size | Ports | Pack Quantity | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|---|---|---|
| HX92T/15W |
|
All Socket on One Side | 15mm x 3/4" | 2 Port | 1 | £31.61 inc VAT (£26.34 ex VAT) |
-
+
|
£31.61 inc VAT | ||
| HX92/22W |
|
Socket and Closed Spigot | 22mm x 10mm | 2 Port | 1 | £11.03 inc VAT (£9.19 ex VAT) |
-
+
|
£11.03 inc VAT | ||
| HX94/22W |
|
Socket and Closed Spigot | 22mm x 10mm | 4 Port | 1 | £11.95 inc VAT (£9.96 ex VAT) |
-
+
|
£11.95 inc VAT | ||
| HX96/22W |
|
Socket and Closed Spigot on One Side | 22mm x 10mm | 4 Port | 1 | £13.15 inc VAT (£10.96 ex VAT) |
-
+
|
£13.15 inc VAT | ||
| HX96B/22W |
|
All Socket on One Side | 22mm x 10mm | 4 Port | 1 | £11.95 inc VAT (£9.96 ex VAT) |
-
+
|
£11.95 inc VAT | ||
| HX91T/22W |
|
All Socket on One Side | 22 x 3/4" | 3 Port | 1 | £17.39 inc VAT (£14.49 ex VAT) |
-
+
|
£17.39 inc VAT |
A Hep2O Socket and Closed Spigot Manifold takes one feed in through a Push Fit socket and splits it into several outlets, with the far end closed off. So it sits at the end of a run, sharing the supply between basins, sinks, appliances or radiators.
Choosing a Hep2O Socket and Closed Spigot Manifold
The options on the page cover the number of ports, 2, 3 or 4, and the size. Listed sizes include 22mm x 10mm, plus 15mm x 3/4″ and 22 x 3/4″ options. Because the options are listed in several ways, check the photo or ask at the counter so you get the right body and outlet sizes for your job.
Fix the manifold firmly to a board or wall, sleeve each plastic pipe end and push the pipes home. Label each outlet as you go, so it is clear what each branch feeds.
Compare it with the all socket and closed spigot versions under Hep2O fittings.
Specification
- Brand: Hep2O
- Maker code: HX96B/22W (All Socket on One Side 22mm x 10mm 4 Port 1), HX92/22W (Socket and Closed Spigot 22mm x 10mm 2 Port 1), HX94/22W (Socket and Closed Spigot 22mm x 10mm 4 Port 1)
- Connection: Push Fit sockets and closed spigot, or all socket on one side, as listed
- Sizes: 22mm x 10mm, 15mm x 3/4″ and 22 x 3/4″ options, 2, 3 and 4 port
- Suitable for: Splitting a supply into several outlets at the end of a run
- Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
- Max pressure: 12 bar at 20°C, 6 bar at 95°C
- Max temperature: Up to 95°C
- Guarantee: 50 years
Common Questions
How do I choose between the manifold options?
Count the outlets, pick the outlet size, then check whether you need a socket or a closed spigot at the far end.
Can the 4 port manifold feed microbore radiators?
Yes, the 22mm x 10mm 4 port version suits a group of microbore radiator branches from a 22mm feed.
Does a manifold need its own isolation?
An isolating valve on the feed lets you work on any branch without draining the whole system.
Manifolds from our Glasgow counter
Plumb Parts is on 555 South Street, Glasgow G14 0QX. It opens Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and you can order online.
Datasheets
| Weight | N/A |
|---|---|
| Type |
Socket and Closed Spigot ,Socket and Closed Spigot on One Side ,All Socket on One Side |
| Size |
15mm x 3/4" ,22mm x 10mm ,22 x 3/4" |
| Ports |
2 Port ,3 Port ,4 Port |
| Pack Quantity |
1 ,5 |
Only logged in customers who have purchased this product may leave a review.
Related products

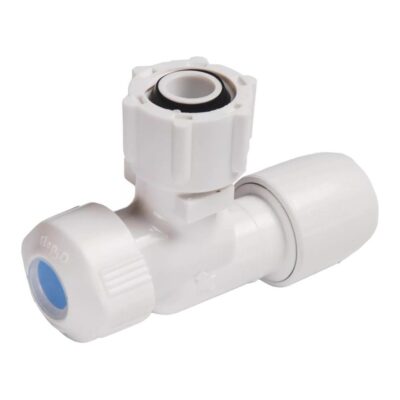

Hep2O Bent Service Valve 15mm
£5.38 inc VAT (£4.48 ex VAT)
Hep2O Equal Tee 10mm to 28mm
Price range: £3.82 through £18.94 inc VAT ( Price range: £3.18 through £15.78 ex VAT)

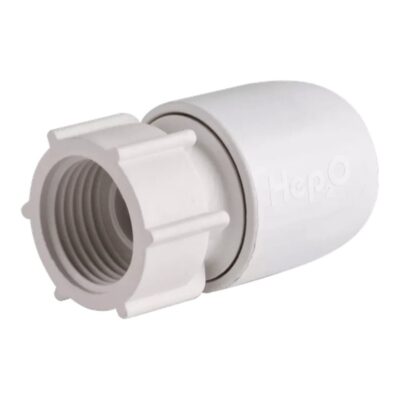

Hep2O Hand Titan Tap Connector 15mm to 22mm
