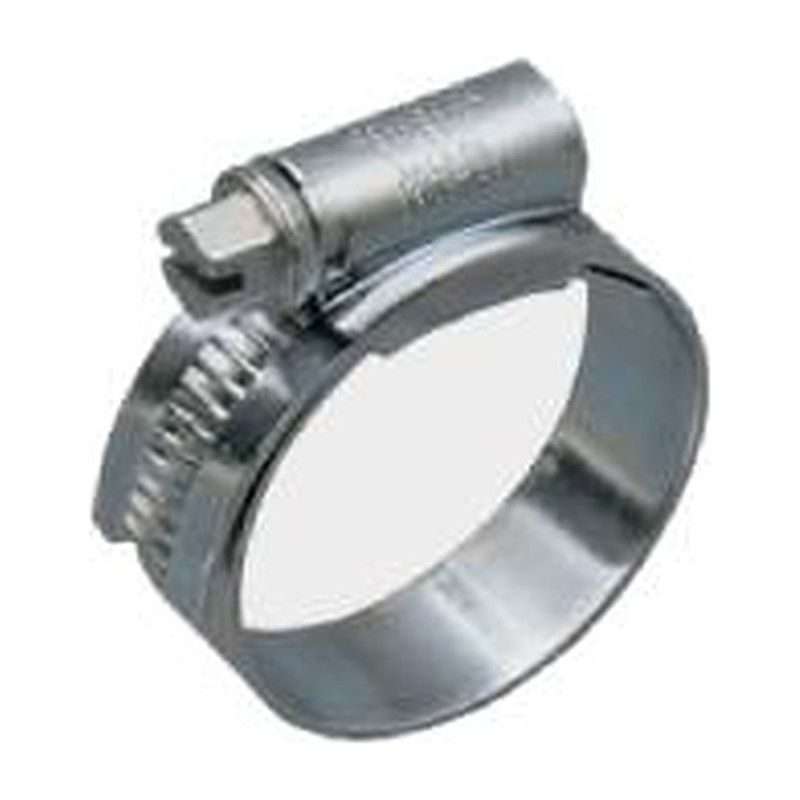

Hose Clip 18mm to 40mm

A hose clip is the worm drive band you tighten with a screwdriver to clamp a hose onto a pipe or spigot. Three clamping ranges are offered, covering 18-25mm, 20-32mm and 20-40mm.

Picking the right hose clip

Measure across the outside of the hose once it is pushed on, because that is what the clip has to close round. Then pick the range that the figure falls inside, ideally near the middle. The 18-25mm size suits small hoses such as appliance drains and condensate pipes. For bigger waste hoses and rubber connectors, the 20-32mm and 20-40mm clips give more room.

• 18-25mm clamping range
• 20-32mm clamping range
• 20-40mm clamping range
• Worm drive screw, tightened with a flat or socket driver

Slide the clip onto the hose before you push the hose onto the spigot. Position it just behind any bead or ridge on the spigot, then tighten until the hose is gripped firmly. Overtightening can cut into soft hose, so stop once it is snug. If the band ends up well past the housing, drop down a size so there is no long sharp tail. Check clips on washing machine and dishwasher drains now and then, because vibration can loosen them. More clamps and back plates are in our steel clamps range.

Hose clips in Glasgow

Buy them over the Plumb Parts counter at 555 South Street, Glasgow G14 0QX during Mon-Fri 8am-5pm and Sat-Sun 8am-1pm hours, or order online instead.

Specification

• Connection: Worm drive band
• Sizes: 18-25mm, 20-32mm and 20-40mm clamping ranges
• Suitable for: Clamping hoses onto pipe stubs, spigots and outlets

Common Questions

How do I choose a hose clip size?

Measure the outside of the hose when it is on the pipe, then pick a clip whose range covers that figure in the middle. A clip at the very end of its range grips less well.

How tight should a hose clip be?

Tighten until the hose is gripped firmly and will not turn, then stop. Overtightening cuts into soft hose and can strip the band.

Can I use two clips on one hose?

Yes, on a longer spigot two clips side by side add grip. Keep the screw heads apart so they do not press on the same spot.
