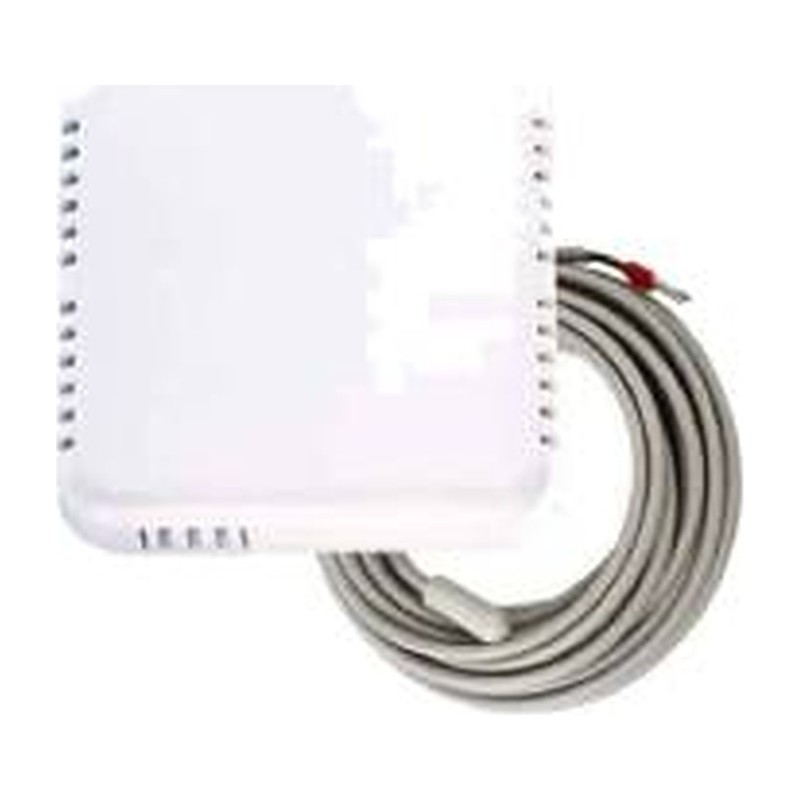

JG Speedfit Remote Probe and Sensor

With the JG Speedfit Remote Probe and Sensor, a JG underfloor heating thermostat can take its reading from somewhere other than the stat itself. You can choose the probe or the white sensor box from the options.

What the remote probe and sensor are used for

Wet rooms and bathrooms are the classic case. Moisture is a problem for a wall thermostat in a spray zone, so the stat goes outside the room and the sensor does the work inside. The other job is floor protection. Some floor finishes can be damaged if the floor overheats, and a probe in the floor helps the controls keep it in check.

• Options: probe, or white sensor box
• For wet rooms and bathrooms
• For floor temperature control
• Works with JG Speedfit underfloor heating controls

Tips

Check that your thermostat model accepts a remote probe before ordering, and follow its instructions for wiring and set-up. In a floor, place the probe between two pipe loops so it reads the floor and not a single hot pipe. Run the cable in conduit so it can be replaced later. Find thermostats to pair it with in our JG Speedfit underfloor heating range.

Ordering a floor probe in Glasgow

The probe is sold at Plumb Parts, 555 South Street, Glasgow G14 0QX. Hours: Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. It can also be ordered through the website at any hour.

Specification

• Brand: JG Speedfit
• Range: Underfloor Heating controls
• Maker code: JGSB
• Sizes: Options: non electrical probe or white sensor box
• Suitable for: Taking a floor or remote air reading for JG underfloor heating thermostats in wet rooms and bathrooms
• Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
• Max pressure: 12 bar at 20°C, 6 bar at 65°C, 3 bar at 82°C
• Max temperature: Up to 95°C
• Guarantee: 50 years with JG Speedfit barrier pipe

Common Questions

Why use a remote probe in a wet room?

A room stat should not sit where it gets splashed or steamed up. The probe or sensor takes the reading in the wet room while the thermostat goes outside or in a safer spot.

Does a floor probe stop the floor overheating?

Yes, that is one of its main jobs. Floors such as wood or some vinyls have a top temperature limit, and the probe lets the stat hold the floor below it.

Where should the floor probe be laid?

Lay it in a conduit between two heating pipes, not touching either, so it reads the floor rather than one pipe. Using a conduit means it can be pulled out and replaced later.
