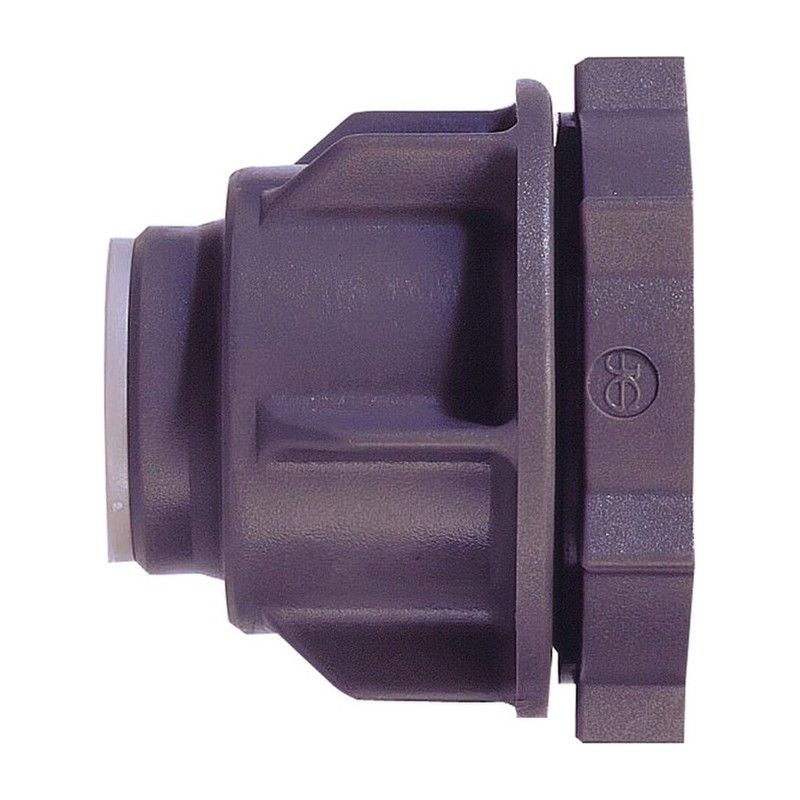

JG Speedfit Tank Connector 15mm to 28mm

JG Speedfit Tank Connector

At Plumb Parts our JG Speedfit Fittings are available in the following:

Metric sizes 10mm, 15mm, 20mm, 22mm, 28mm

And Imperial sizes from 1/2″,  3/4″

Our range of JG Speedfit Fittings includes JG Speedfit Equal Straight Coupler, JG Speedfit Reducing Coupler,  JG Speedfit  Elbow, JG Speedfit Stem Elbow, JG Speedfit Reducing Tees, JG Speedfit Male Couplers, JG Speedfit Straight Tap Connectors, JG Speedfit Bent Tap Connectors, JG Speedfit StopEnds, JG Speedfit Fitting Reducers, JG Speedfit Tank Connectors, JG Speedfit Plugs, JG Speedfit Conversion Connector, JG Speedfit Hose Connector, JG Speedfit 4  Way Manifold, JG Speedfit Port Rail Manifold, JG Speedfit Brass Manifold, JG Speedfit Brass Male Coupler, JG Speedfit Brass Female Couplers, JG Speedfit Brass Back plate Elbow, JG Speedfit Brass Male Stem Adaptor, JG Speedfit Brass Female Stem Adaptor, JG Speedfit Flexible Hoses, JG Speedfit Stop Tap, JG Speedfit Appliance Taps, JG Speedfit Emergency Shut Off Tap, JG Speedfit Angle Stop Valve, JG Speedfit Double Check Valve, JG Speedfit Plastic Service Valves,  JG Speedfit Plastic Service Vale with Tap Connector, JG Speedfit Plastic Angle Service Valve with Tap Connector, JG Speedfit Plastic Ball Valve, JG Speedfit Double Check Valve with Service Valve, JG Speedfit Brass Service Vale, JG Speedfit Chrome Service Valve, JG Speedfit Chrome Service Valve with Tap Connector, JG Speedfit Chrome Ball Valve, JG Speedfit Brass Stop Valve, JG Speedfit Drain Cock Valve, JG Speedfit Radiator Outlet Plate, JG Speedfit Pipe Inserts, JG Speedfit Chrome Ball Valves, JG Speedfit SuperSeal Pipe Inserts, JG Speedfit 2Way Divider, JG Speedfit Conduit Elbow, JG Speedfit Collect Locking Clips, JG Speedfit Release Aids.

Plastic Push-Fit fitting to connect pipe. The uniquely designed fitting incorporates stainless teeth to provide a tight and secure grip on the pipe. The connection is demountable if required, ensuring the system is easy to work when in the ground and needing to maintain and alter existing set-up. Installation time is greatly reduced when compared against traditional fixing methods.

Features:

• Mains fed and indirect cold water systems
• Vented and unvented hot water systems
• Vented central heating systems
• Sealed central heating systems provided temperatures and pressures comply with BS7291 Parts 1 and 3 Class S

Specification

• Brand: JG Speedfit
• Range: Speedfit Push Fit plumbing and heating
• Maker code: CM0728S
• Connection: Push Fit
• Sizes: 15mm, 22mm and 28mm
• Suitable for: Cold water storage tanks
• Standard/approval: BS 7291 Class S, Kitemarked, WRAS approved
• Max pressure: 12 bar at 20°C, 6 bar at 65°C, 3 bar at 82°C
• Max temperature: Up to 95°C
• Guarantee: 50 years with JG Speedfit barrier pipe

Common Questions

What size hole does a tank connector need?

JG give 29 millimetres for 15mm, 36 for 22mm and 46 for 28mm. Use a hole saw for a clean edge.

How tight should the backnut be?

Hand tight only. JG warn that more force will damage the fitting.

Which side does the washer sit?

Inside the tank, with the body pushed through from the inside and the nut on the outside.

Datasheets

• JG Speedfit Tank Connector Data Sheet (PDF)
